Terex TL120 - Drivers Seat; Steering Wheel Tilt Adjustment

42
Operating Instructions Wheel Loader TL120
Operation4
4.4 Driver's seat / Steering wheel tilt
adjustment
The comfort seat is spring-mounted with oil-pressure
operated shock absorbers and lap belt.
The seat meets international quality and safety
standards in compliance with ISO 7096 and ISO 6683
(Fig. 11).
1 Horizontal adjustment
2 Weight adjustment
3 Seat back adjustment
4 Armrest (option)
5 Vertical adjustment
• Raising seat:
Raise seat until it clicks audibly into place.
• Lowering seat:
Raise seat as far as the stop; the seat then sinks
to its lowest position.
Tilt adjustment of steering wheel
• Push down lever (12/4).
• Adjust steering-wheel tilt.
• Release lever.
Height adjustment of steering wheel (option)
• Push up lever (12/4).
• Adjust steering-wheel height.
• Release lever.

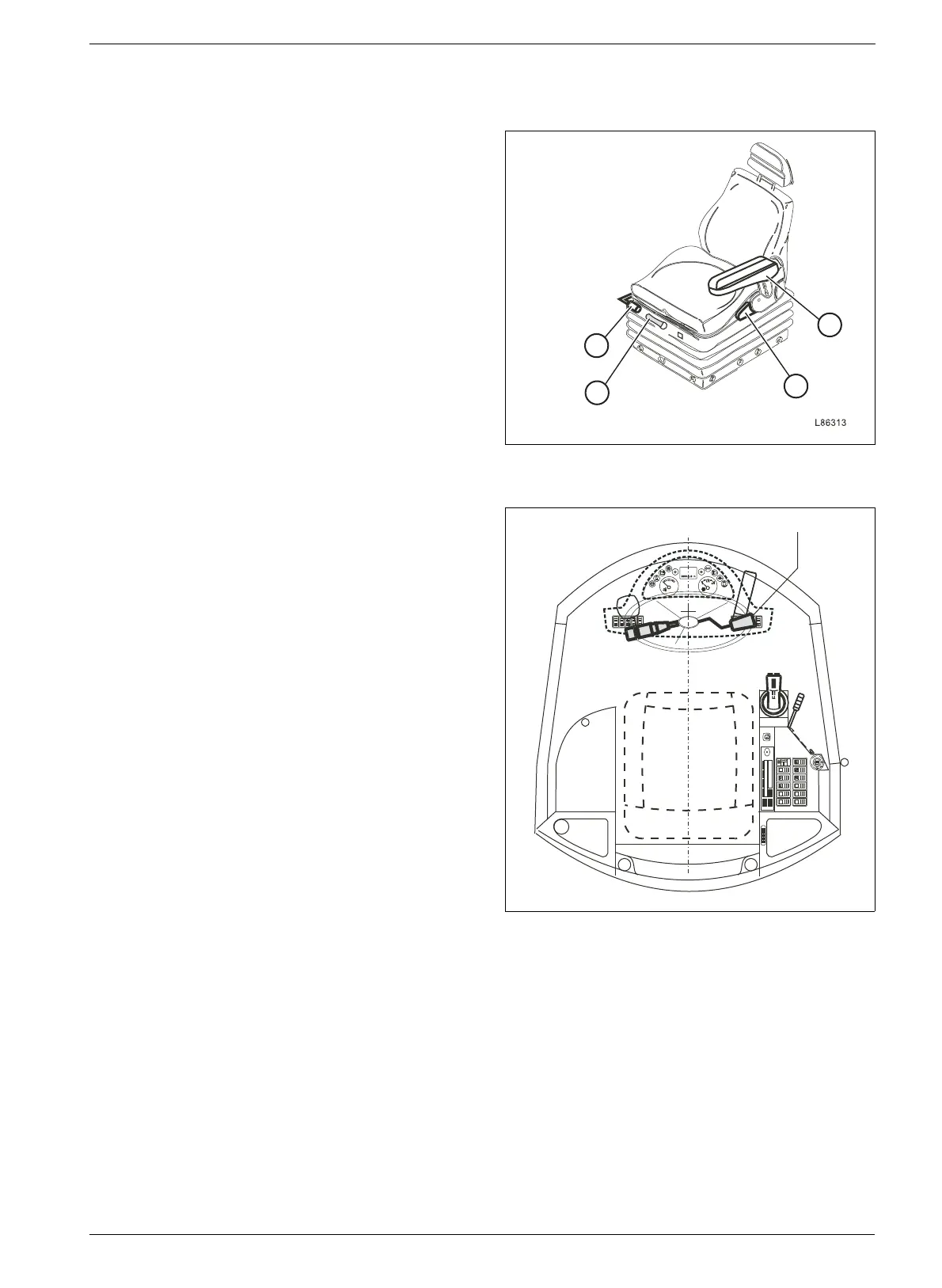

Fig. 11 Driver's seat
1
3
2
4
Fig. 12 Tilt and height adjustment of steering wheel
4
L824-014
