Operating Instructions Wheel Loader TL120
Recovery, Loading and Transporting6
6.2 Loading with a crane
To load the machine by use of a crane, the following
preparations are required:
• Empty the bucket and tip back.
• Move the lift frame to travel position.
• Apply the pin of the articulation lock (28/1 on the
articulation).
• Switch off the engine.
• Dismount from the machine and close the doors.
• Attach the loader to the hoisting appliance at the
specified, marked points (Fig. 28) in the correct
manner.
6.3 Transport of the machine
To transport the machine onto a flat bed trailer,
railway goods wagon, etc. the following measures
must be taken:
• Empty the bucket and tilt back.
• Drive the machine onto the flat bed trailer, goods
wagon, etc., or lift by crane if required.
• Apply the pin of the articulation lock (29/1 on the
articulation).
• Lower the work tool onto the ground.
• Switch off the engine.
• Dismount from the machine and close the doors.
• Attach the machine at the points illustrated
(Fig. 29) in the correct manner.

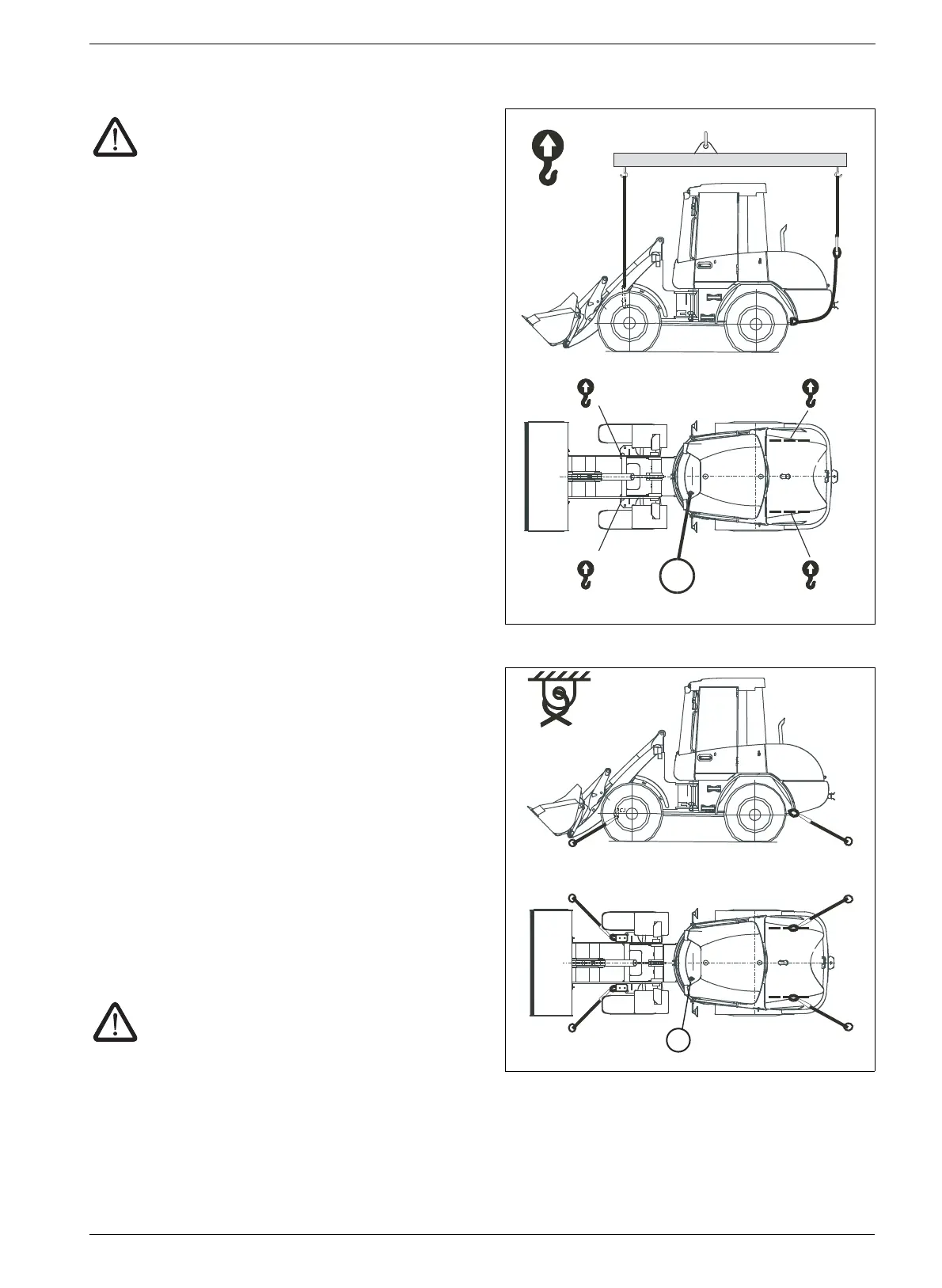

Fig. 28 Loading the machine using a crane
L824-029
1
Danger to life
through exceeding the maximum lifting
capacity.
• Ensure that the maximum lifting capacity
of the crane and the crane harness is not
exceeded.
Fig. 29 Lashing for transport
L824-030
1
Danger to life
due to disregarding the total transport height.
• It is essential to observe the clearance
heights of tunnels, bridges, etc.
