The payloads are determined in compliance with DIN
24094 / ISO 8313 respectively with a stability factor of
1.25 or 80 % of the tipping load and the machine
moving over level ground.
The payloads are valid for the machine fitted with
15.5R25 tires and the equipment condition as
described in compliance with ISO 6016.

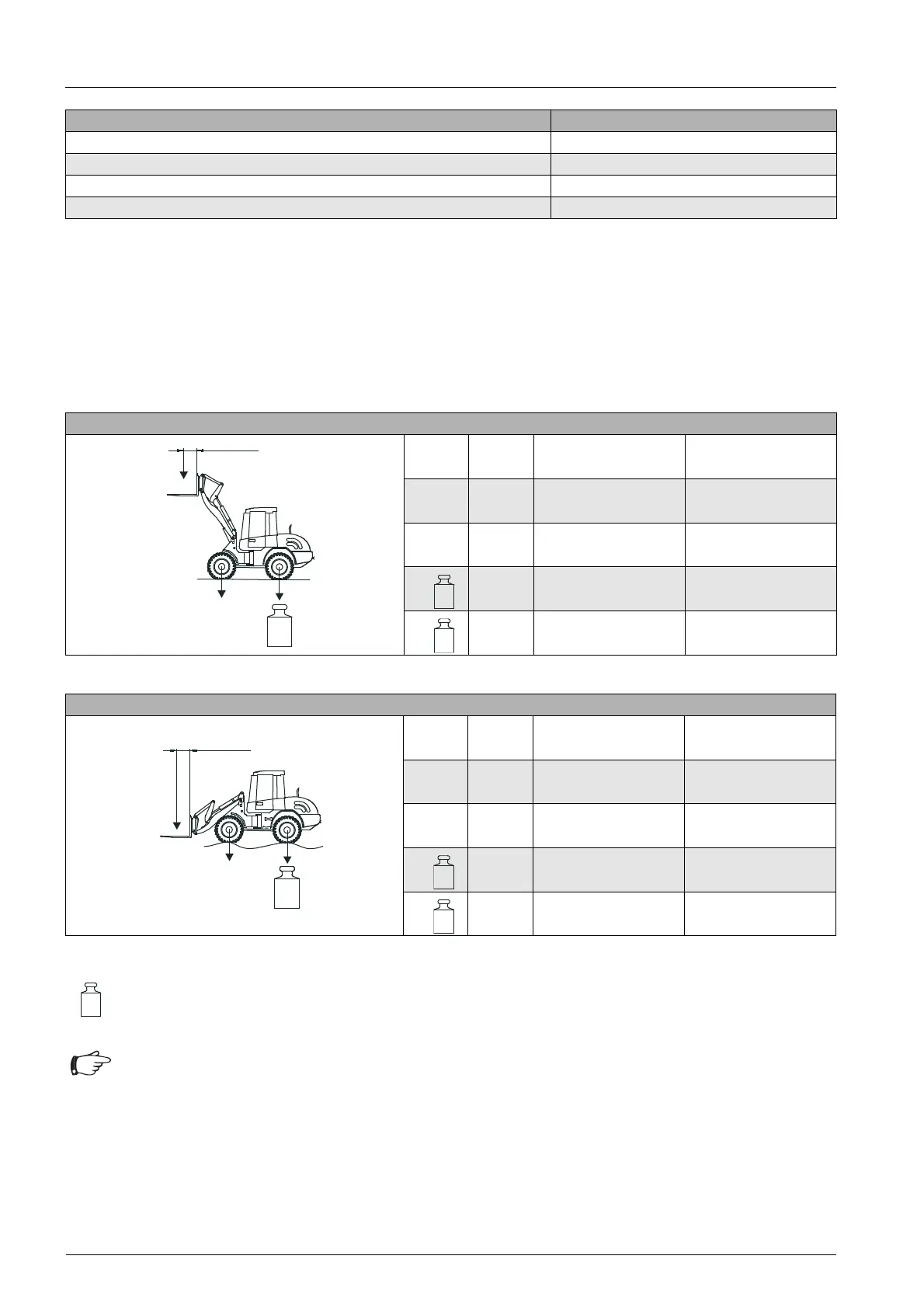

Fork lift attachment mm
Width of fork carrier 1900
Length of forks 1120
Fork cross section 140 x 50
Max. stacking height 3570
Tab. 18 Dimensions of fork-arm connection in compliance with ISO/FEM Class 3 Form B, DIN 15 173 / ISO 2328 respectively
Total lift range
S=2.0 S=1.25
kg 2000 3200
lbs 4710 7040
kg 2180 3500
lbs 4820 7700
Tab. 19 Total lift range of fork attachment
500 mm
19,7 inch
+0,5 bar
+7,3 psi
+
kg
lbs
kg
lbs
kg
lbs
Transport position
S=1.67 S=1.25
kg 2620 3500
lbs 5770 7700
kg 2620 3500
lbs 5770 7700
Tab. 20 Transport position of fork lift attachment
500 mm
19,7 inch
+0,5 bar
+7,3 psi
+
kg
lbs
kg
lbs
kg
lbs
If screw-on rear axle weights or rear tires with
hydroinflation are used.
Attention
During fork lift operations, the tire pressure of
the front wheels must be increased by at
least 0.5 bar.
