4.8 Driving, steering and braking
4.8.1 Driving
The machine has two preselection switches for travel
direction which are alternately active.
Change-over by operating the multi-function switch
(18/35).
One preselection switch for travel direction (18/36) is
located on the instrument panel and another such
switch on the joystick (18/7) controlling the working
hydraulics.
The direction of travel is preselected using the switch
(18/36) on the instrument panel.
In working mode, the joystick (18/7) for the work
equipment must be activated by operating the multi-
function switch (18/35). By doing so, the switch
(18/36) on the instrument panel is without function.
The direction of travel is preselected using the travel
direction preselection switch on the joystick (18/7).

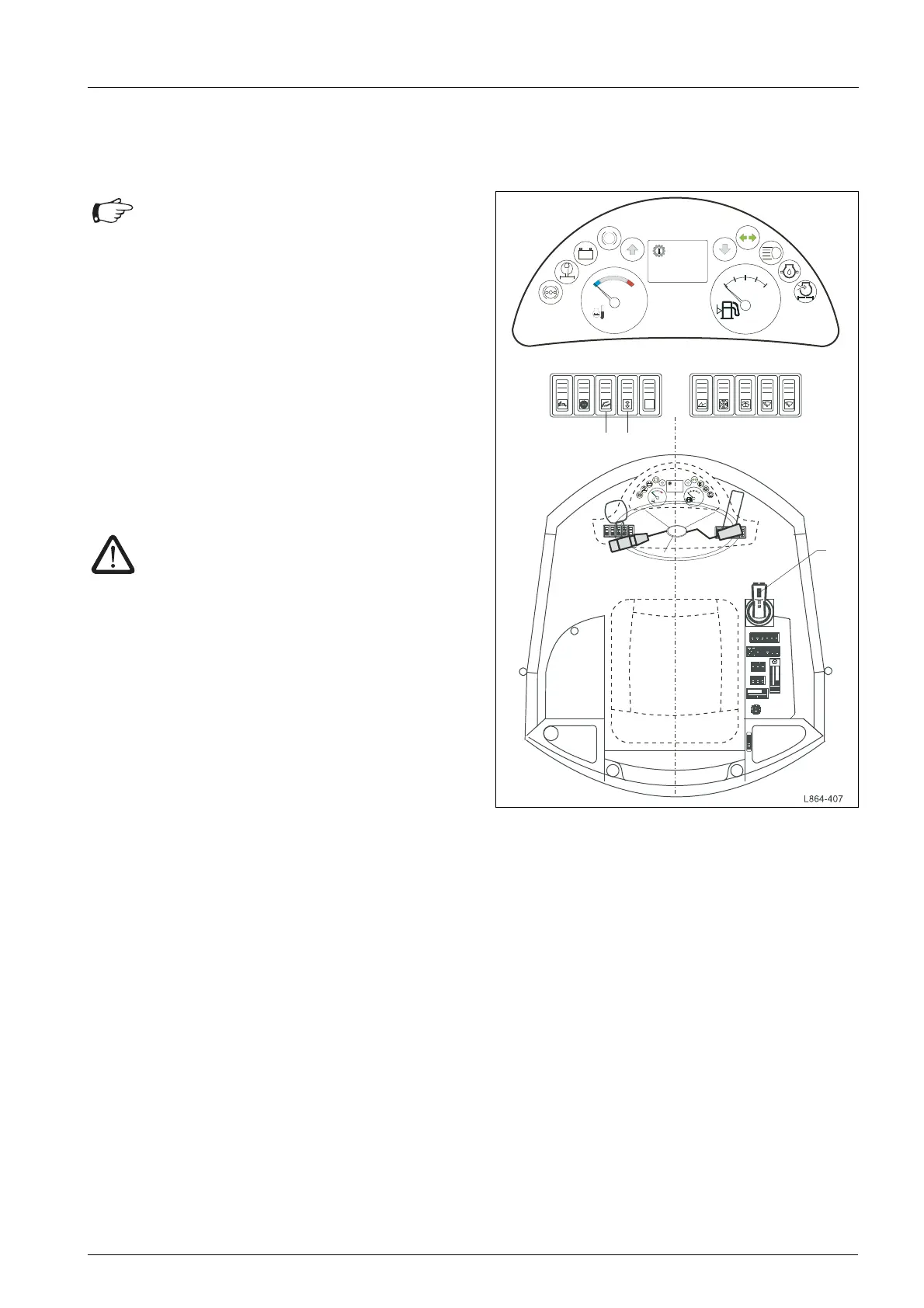

Fig. 18 Driving and steering
00014,0 h
12 Km/h
0
4/4
1/2
+
-
P
00014,0 h
12 Km/h
0
4/4
1/2
+
-
P
36
7
35
Attention
When driving on public roads, the wheel
loader, as a self-propelled work machine, is
subject to the legal regulations valid in the
user's country. (For example, in the Federal
Republic of Germany, StVZO and StVO).
Danger to life
due to incorrect operation.
• The multi-function switch (18/35) is only to
be pressed if the machine is at a standstill
and both travel direction preselection
switches are in neutral position. If the two
direction-of-travel preselection switches
are pressed in a contradictory manner, the
machine will not move.
• When driving on roads, the joystick (18/7)
for the work equipment must be
deactivated by operating the multi-
function switch (18/35). By doing so, the
travel direction preselection switch on the
joystick (18/7) is without function, too.
