Operation 4
49/112TL160
Operating Manual 12.9.08 Version 1.0
Driving off
• Set the travel direction preselection rocker switch
on the joystick (19/7) and on the instrument panel
(19/36) to “0” (neutral position).
• The indicator lamps (19/24 and 19/28) must not
light up.
• Start engine.
• Raise lift frame as far as the “Travel” height mark
(20/1).
• Select speed range "FAST" or “SLOW” (19/33) as
required.
• High-speed version (option) - select speed range I
or II (19/34).
• Observe the indicator lamp (19/66-68).
• Release the parking brake (19/54).
• Adjust the desired travel direction using the
preselection switches (19/7 / 19/36 respectively).
• The indicator lamp (19/24 or 19/28) lights up.
• Press accelerator pedal (19/3). The machine only
drives off once a certain engine speed is reached.
• Travel speed is increased and decreased using
the accelerator pedal. Travel speed directly
depends on engine speed.
• The direction of travel may be changed quickly by
operating the preselectors (19/7 / 19/36
respectively).
Coming to a halt
• Travel speed is reduced by releasing the
accelerator pedal. The hydrostatic travel drive acts
as a non-wearing auxiliary brake.
• Operate the brake-inching pedal (19/2) as
required.
• Also refer to Î 4.8.3, 50

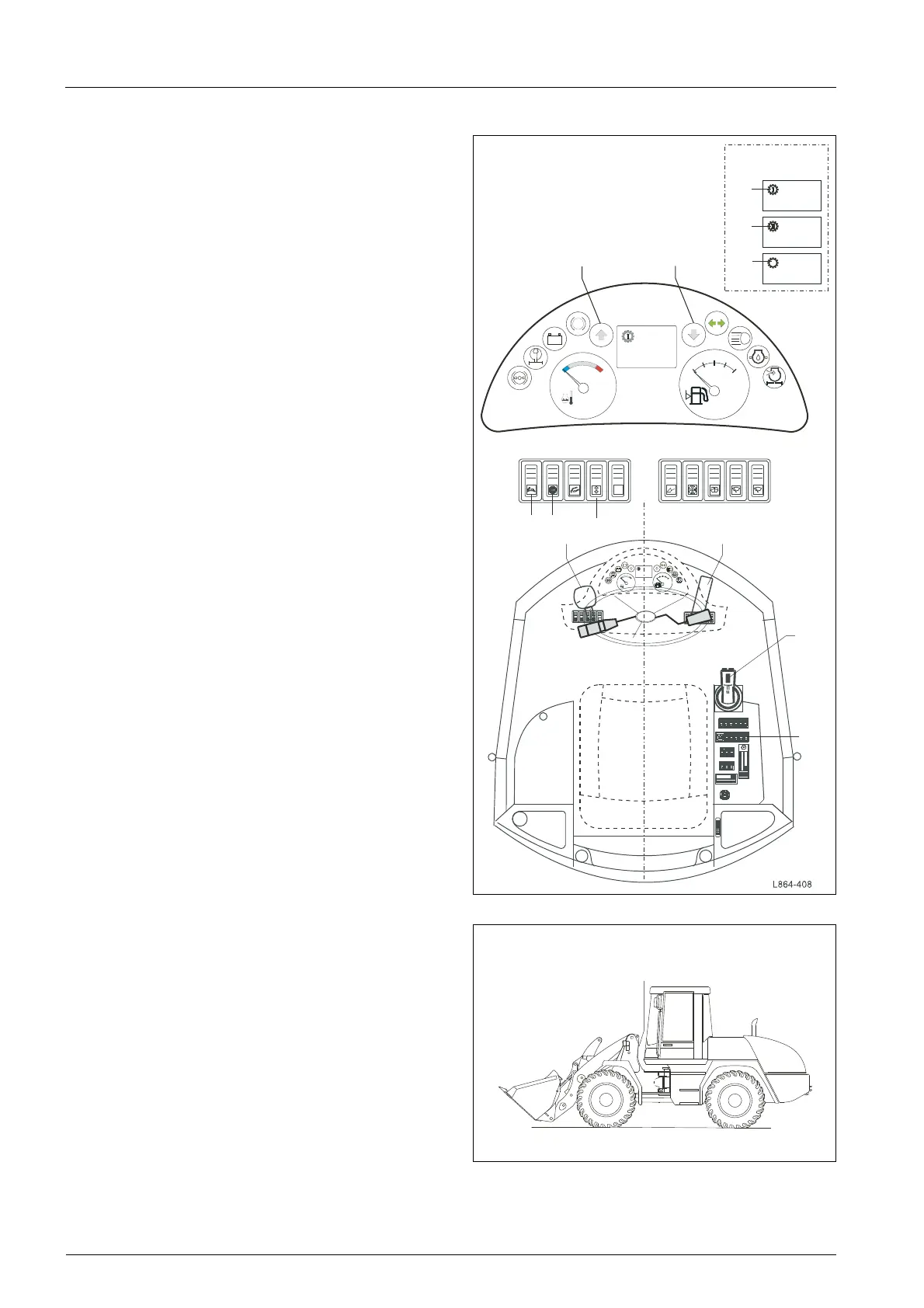

Fig. 19 Driving off and coming to a halt
Option
"S"-version
00014,0 h
12 Km/h
0
4/4
1/2
+
-
P
00014,0 h
12 Km/h
0
4/4
1/2
+
-
P
36
7
33
24
28
54
3
2
00014,0 h
21 Km/h
00014,0 h
12 Km/h
00014,0 h
00 Km/h
N
Option
S-Version
66
67
68
34
Fig. 20 Height color mark
1
