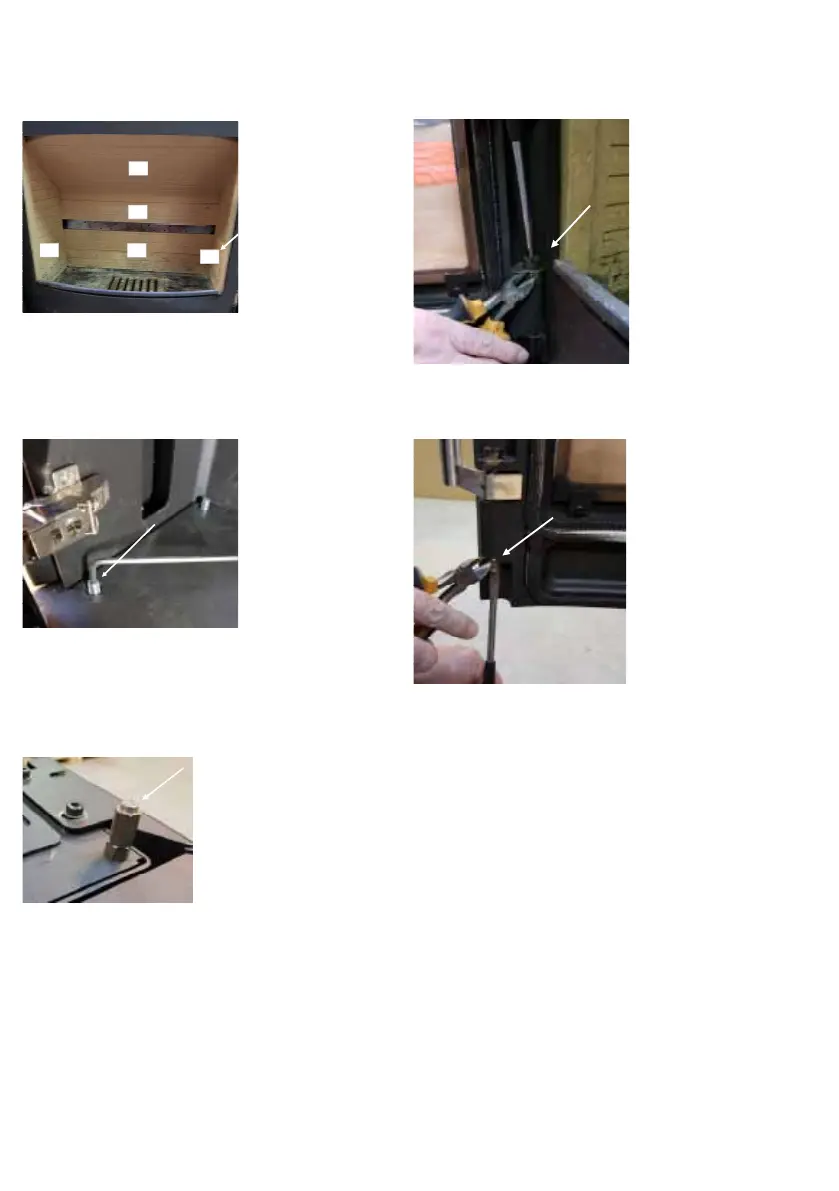

13.0. Drawings with explanation
13.1. Replacement of insulation plates 13.2 Adjusting the doors auto lock
1.
2.
3.
4.
5.
First remove side-
part 1, hereafter
part 2, part 3, part
4 and then part 5.
Mounting the op-
posite way.
Remove the split
and tighten the
screw (clockwise)
depending on how
fast the door should
close
13.3. Adjusting the feet 13.4. Adjusting the handle
Adjusting the feet.
One in each corner
and one in the front
oftherewoodcom-
partment.
Adjust the 5 feet
accordingly.
Remove the split
and tighten the
screw with a screw-
driver (counterc-
lockwise) depends
on how much spring
power you want in
the handle.
13.5. Adjusting the top plate
Adjusting the top plate is
done by the 4 nuts located
under the top plate.
