SERVICING

2-1

Page 9

ML50-30 MAINTENANCE LIFT

TESCO EQUIPMENT LLC

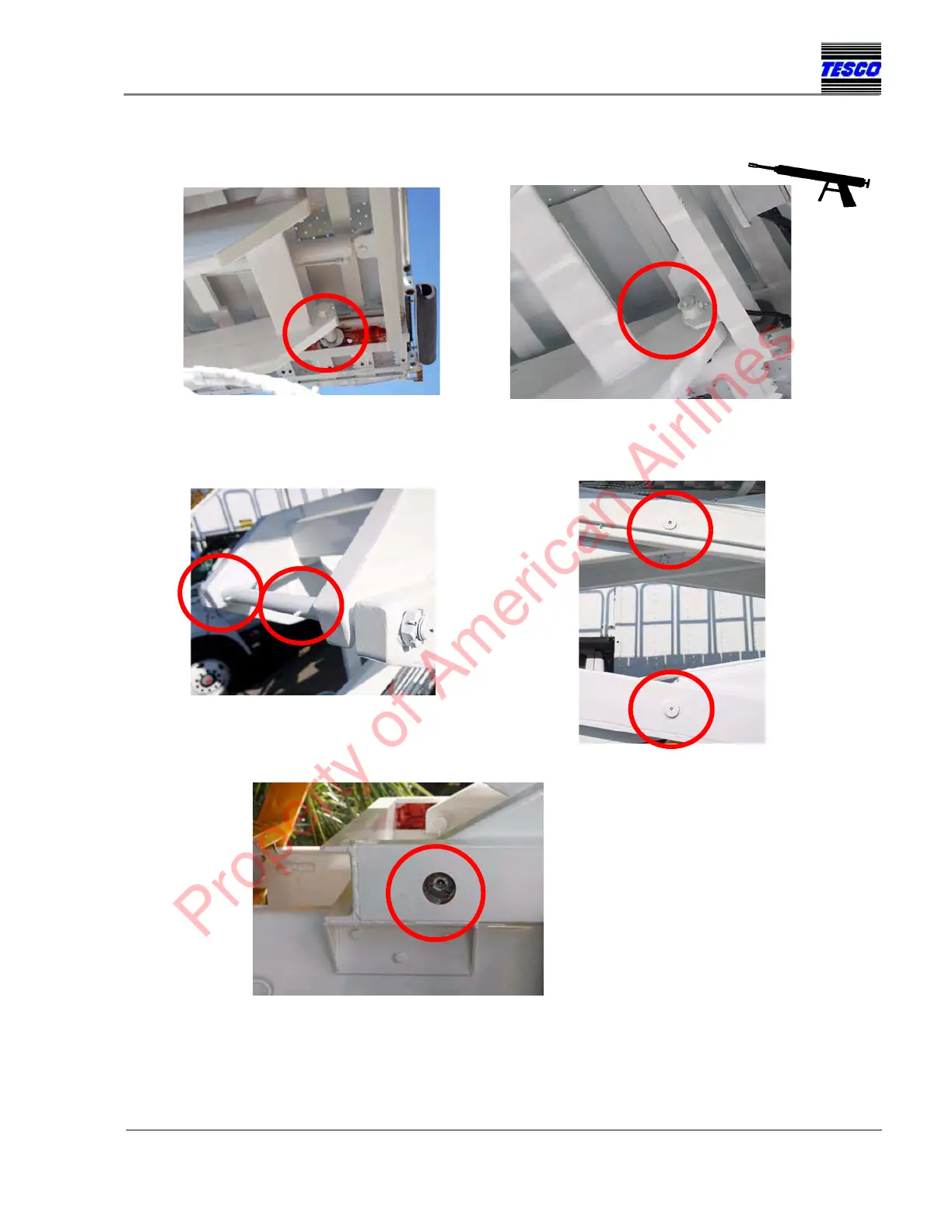

Figure 7

GREASE POINTS - SCISSOR ROLLERS AND PINS

SCISSOR PIVOT PINS - BOTH SIDES

& UPPER AND LOWER

SCISSOR ARM END PINS -

4 PLCS

SCISSOR CENTER PINS -

BOTH SIDES

UPPER AND LOWER

UPPER SCISSOR ROLLERS - BOTH SIDES

SCISSOR LOWER ROLLER PINS -

BOTH SIDES

NOTE: To grease lower scissor rollers, lift must be down.

Mar. 17
