Tesco ML50-30 - GREASE POINT DIAGRAMS

SERVICING
2-1
Page 5
ML50-30 MAINTENANCE LIFT
TESCO EQUIPMENT LLC
WARNING
THE SCISSOR LIFT MUST BE SECURED WITH THE MAINTENANCE PROP BEFORE
ACCESSING THE GREASE POINTS.

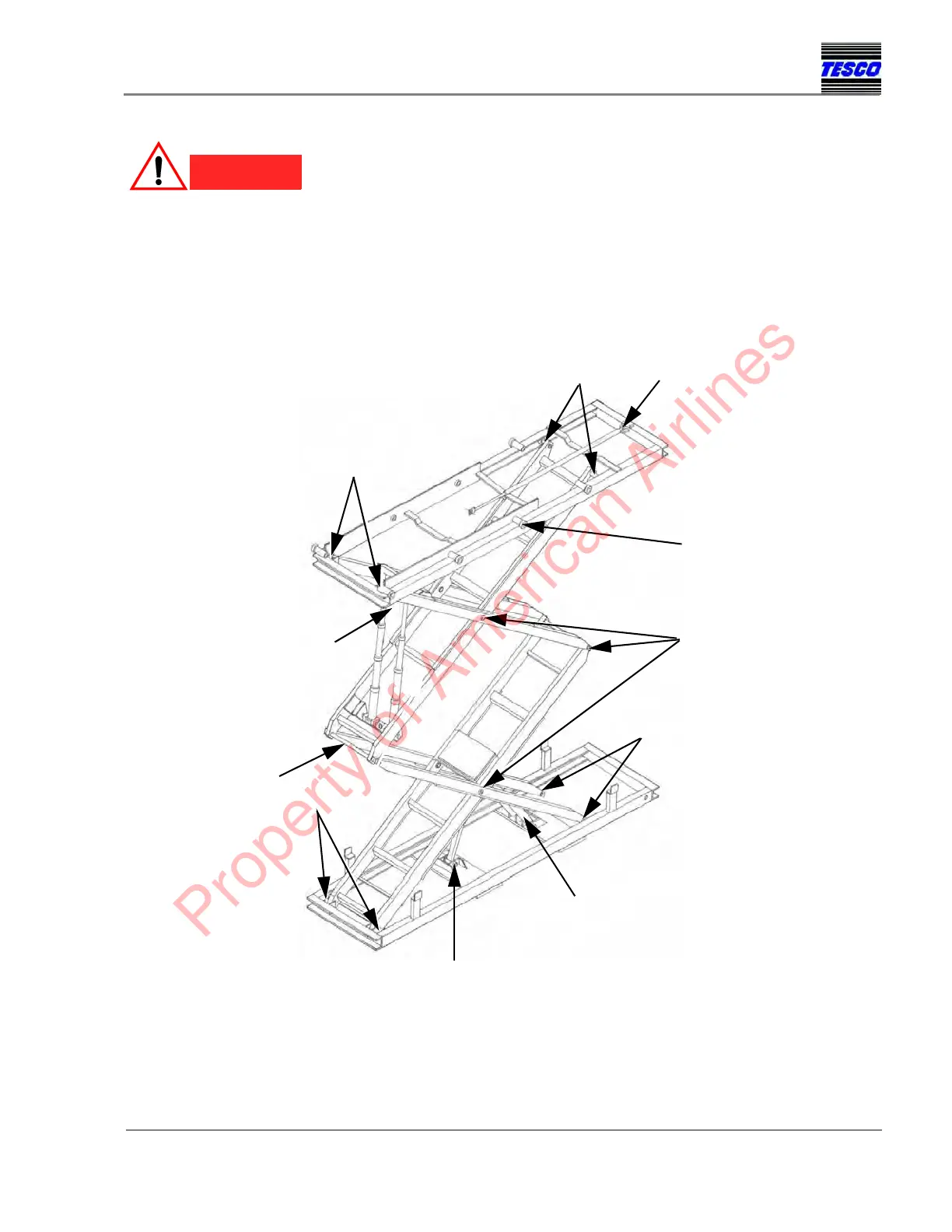

Figure 2
GREASE POINTS DIAGRAM
Ref. Figure 7
Ref. Figure 8
Ref. Figure 7
Ref. Figure 6
Ref. Figure 3
1
3
6
7
1
5
1
3
2
4
5
Ref. Figure 3
& Figure 4
Ref. Figure 6
Ref. Figure 7
Ref. Figure 7
Ref. Figure 7
Ref. Figure 7
