Tescom DS3100 - UPS Power Cable Terminal Connections; Power Cable Terminal Identification

11
WARNING :
- CHECK BOTH OF THE BATTERY GROUPS FOR CORRECT POLARITY AND VOLTAGE
- DO NOT TURN ON THE BATTERY SWITCH (F5) BEFORE STARTING THE UPS
5. Connect the copper earth bus, to the safety earth of the mains distribution panel.
NOTE : The earth and the neutral connections must be in accordance with the local rules.
WARNING: Note that the Input Neutral (N1) MUST also be connected to K10 terminal
2.6.1 UPS Power Cable Connection Terminals :
Figure 2
.
2

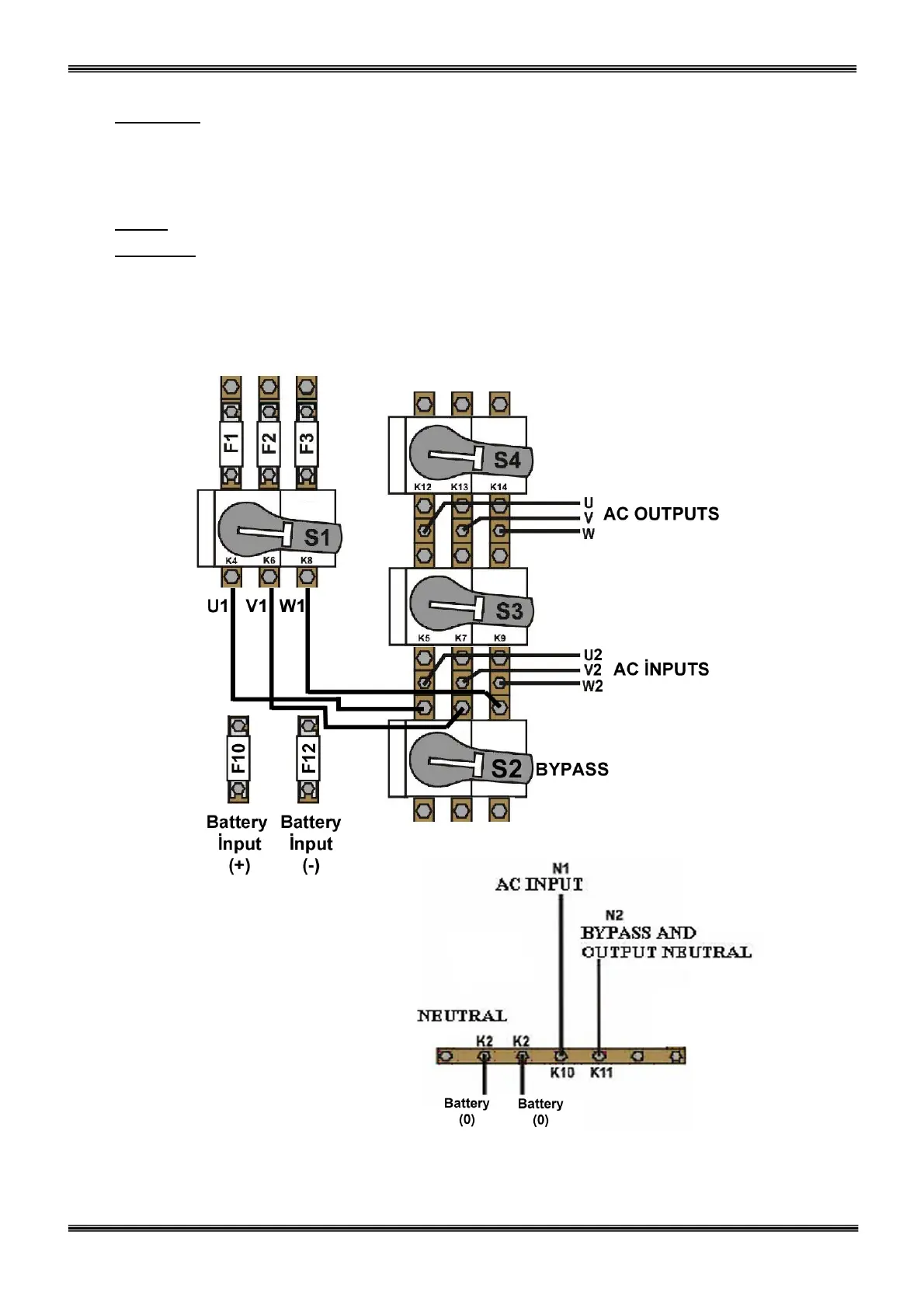

100-120-160 kVA POWER Cable Connection
