Tesup ATLAS2.0 - Electrical Connections

ATLAS 2.0 (MADE IN EUROPE)
~ 22 ~
TESUP

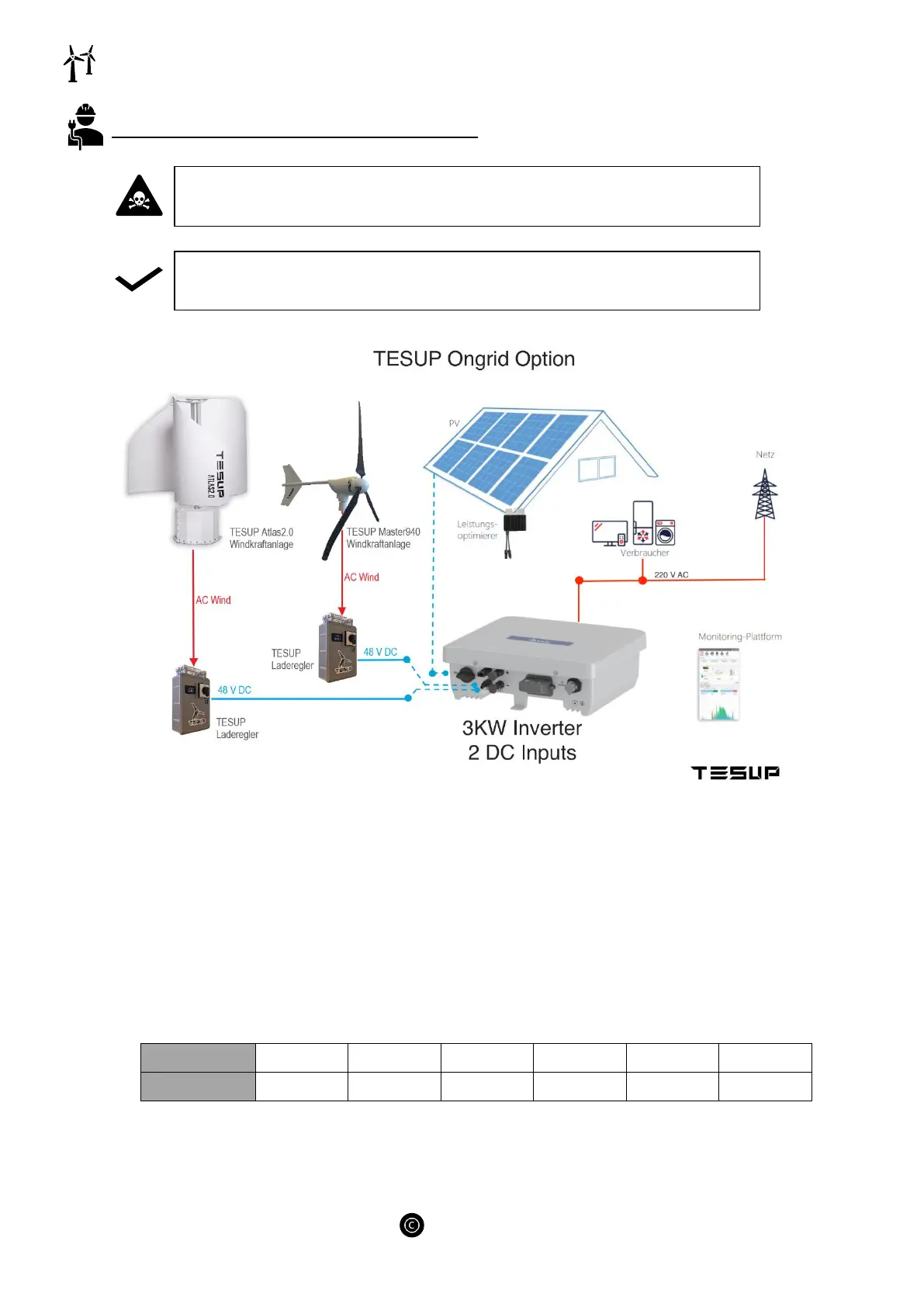

7.3 ELECTRICAL CONNECTIONS:
▪ Wind Turbine has 3 phase AC (Shown in RED) connection. These connections are to be connected
with TESUP charge Controller.
▪ The output of the charge controller can be then connected in two ways:
o The Output of the charge controller can be connected to the battery.
o The Output of the charge controller can be connected to the power grid using the
inverter.
▪ The cables from charge controller to the battery or the power grid will be DC (Shown in Blue)
connection.
▪ Cable Lengths and cross sections should be as follows:
Length
<11 m
<18 m
<29 m
<44 m
<68 m
<110 m
Cross-section
2.5 sq. mm
4 sq. mm
6 sq. mm
10 sq. mm
16 sq. mm
25 sq. mm
CABLE DETAILS
WARNING: All work on electrical equipment must be carried out by a qualified
electrician with the power switched off!
NOTE: To ensure proper operation, you must use an original TESUP charge
controller.
