0x0000
0xFFFF
TBCTR[15:0]
CTR = CMPA
CMPA (value)
CMPB (value)
TBPHS (value)
TBPRD (value)
CTR = CMPB
EPWMxSYNCI
0x0000
0xFFFF
TBCTR[15:0]
CMPA
(value)
CMPB
(value)
TBPHS
(value)
TBPRD
(value)
CTR = CMPA
CTR = CMPB
EPWMxSYNCI
Counter-Compare (CC) Submodule

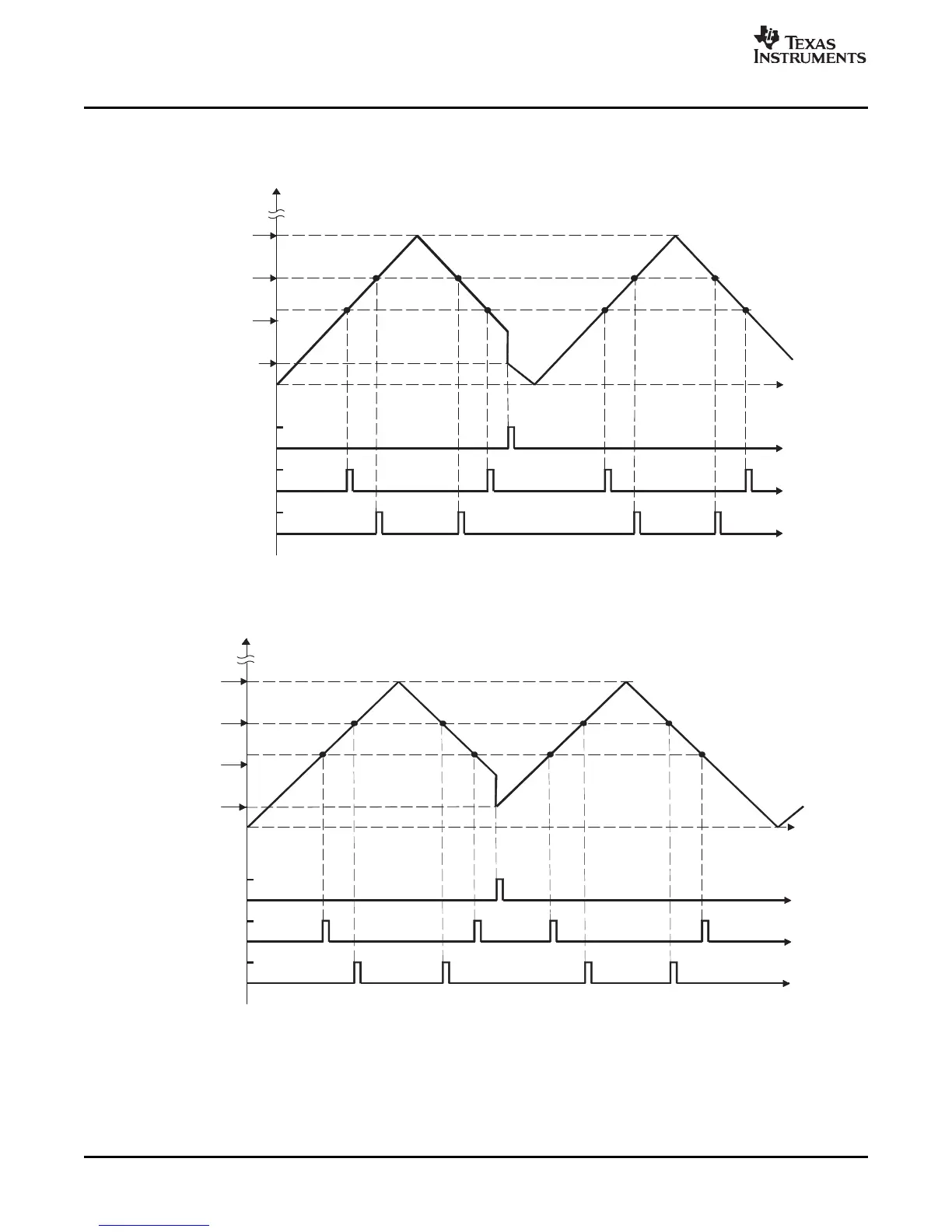

Figure 2-15. Counter-Compare Events In Up-Down-Count Mode, TBCTL[PHSDIR = 0] Count Down On
Synchronization Event
Figure 2-16. Counter-Compare Events In Up-Down-Count Mode, TBCTL[PHSDIR = 1] Count Up On
Synchronization Event
ePWM Submodules36 SPRU791D – November 2004 – Revised October 2007
Submit Documentation Feedback
