RED
FED
Period
Dead-Band Generator (DB) Submodule

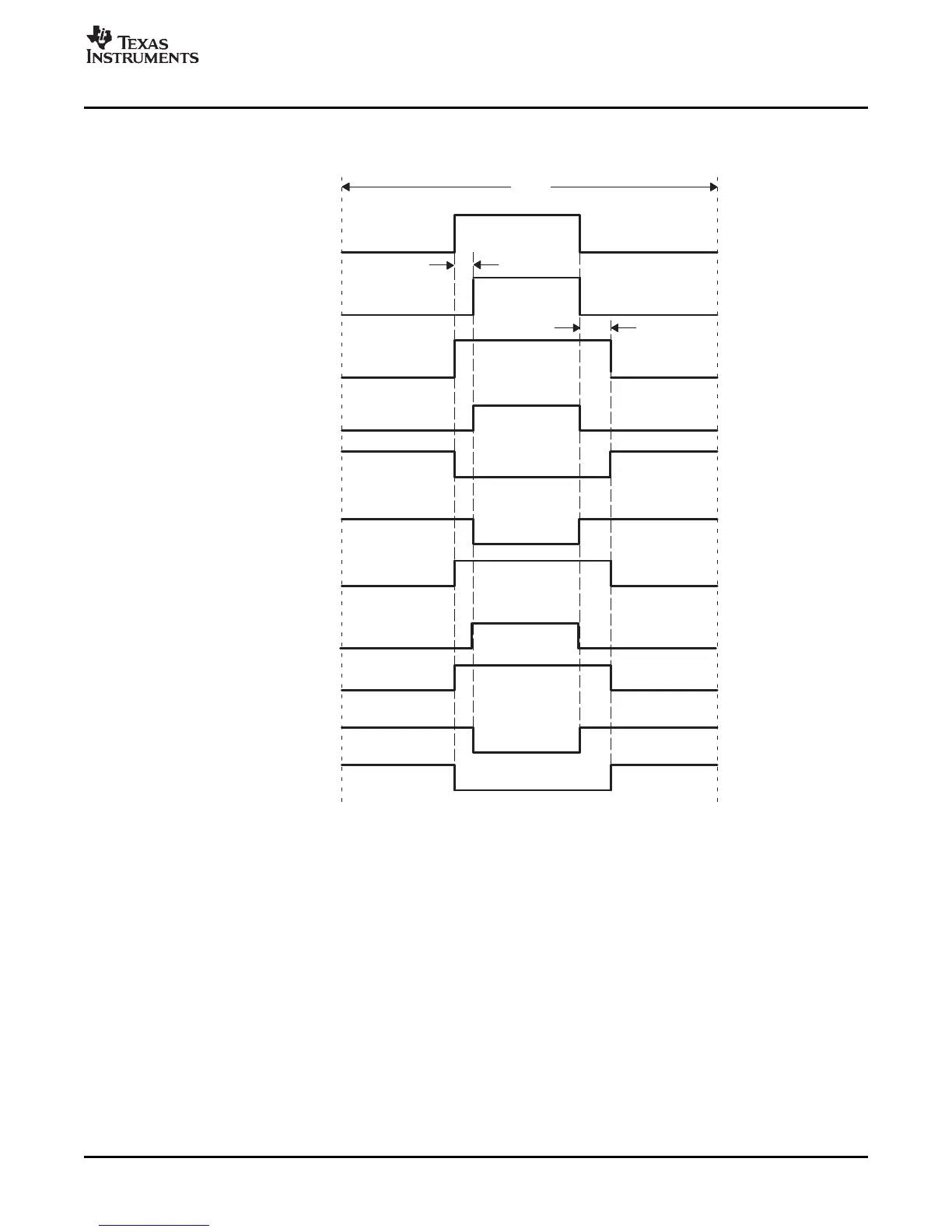

Figure 2-29 shows waveforms for typical cases where 0% < duty < 100%.
Figure 2-29. Dead-Band Waveforms for Typical Cases (0% < Duty < 100%)
SPRU791D – November 2004 – Revised October 2007 ePWM Submodules 53
Submit Documentation Feedback
