• Stop collecting data format: stop
– Where stop is always lower case.
– The EVM will return the acknowledgment and state in JSON format:
{"acknowledge":"stop"}
{"evm_state":"idle"}
4.2.5 PAMB Compatibility
If desired, this EVM and GUI can be used with the PAMB Controller (DC081A) by jumper wiring the pin headers
of the PAMB to the EVM. Figure 4-16 shows which pins on the PAMB correspond to the EVM header pins.
Note not to add too much resistance in the jumper wire connection setup or the signal may degrade and cause
communication errors.

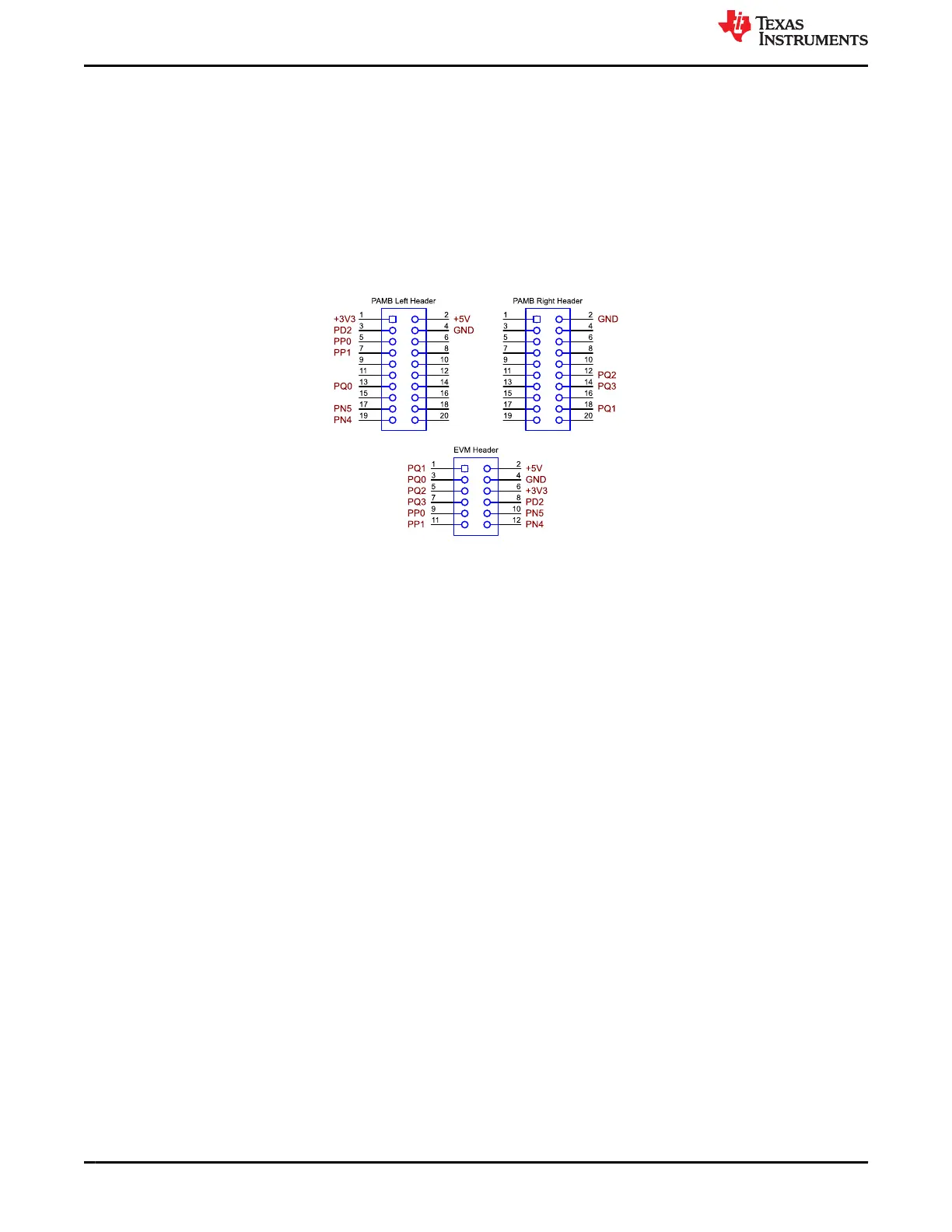

Figure 4-16. EVM to PAMB Connection
The new GUI and firmware can also be used with the SENS063A and SENS064A and PAMB Controller. If the
firmware does not update automatically, DFU mode may need to be entered manually. See Firmware Debug.
When using SENS064A on the PAMB with the new GUI/Firmware, only 1 device can be used at a time, with
SW1 on the EVM set to CS3, and the GUI switch setting set to CS1.
