4.2.1.3 GUI Setup and Connection
The GUI can be accessed from this link in either Chrome, Firefox, or Safari: https://dev.ti.com/gallery/info/
4910879/INA228_229_237_238_239EVM_GUI/.
4.2.1.3.1 Initial Setup
To set up the GUI the first time:
1. Make sure that the previously mentioned driver was installed successfully to ensure that everything works
properly and that the GUI can update the EVM firmware, if necessary.
2. With the EVM/SCB Controller unit plugged into the PC, go to the previously-provided GUI link.
3. To launch the GUI from the web browser, click the GUI Composer application such as the one shown in
Figure 4-4.

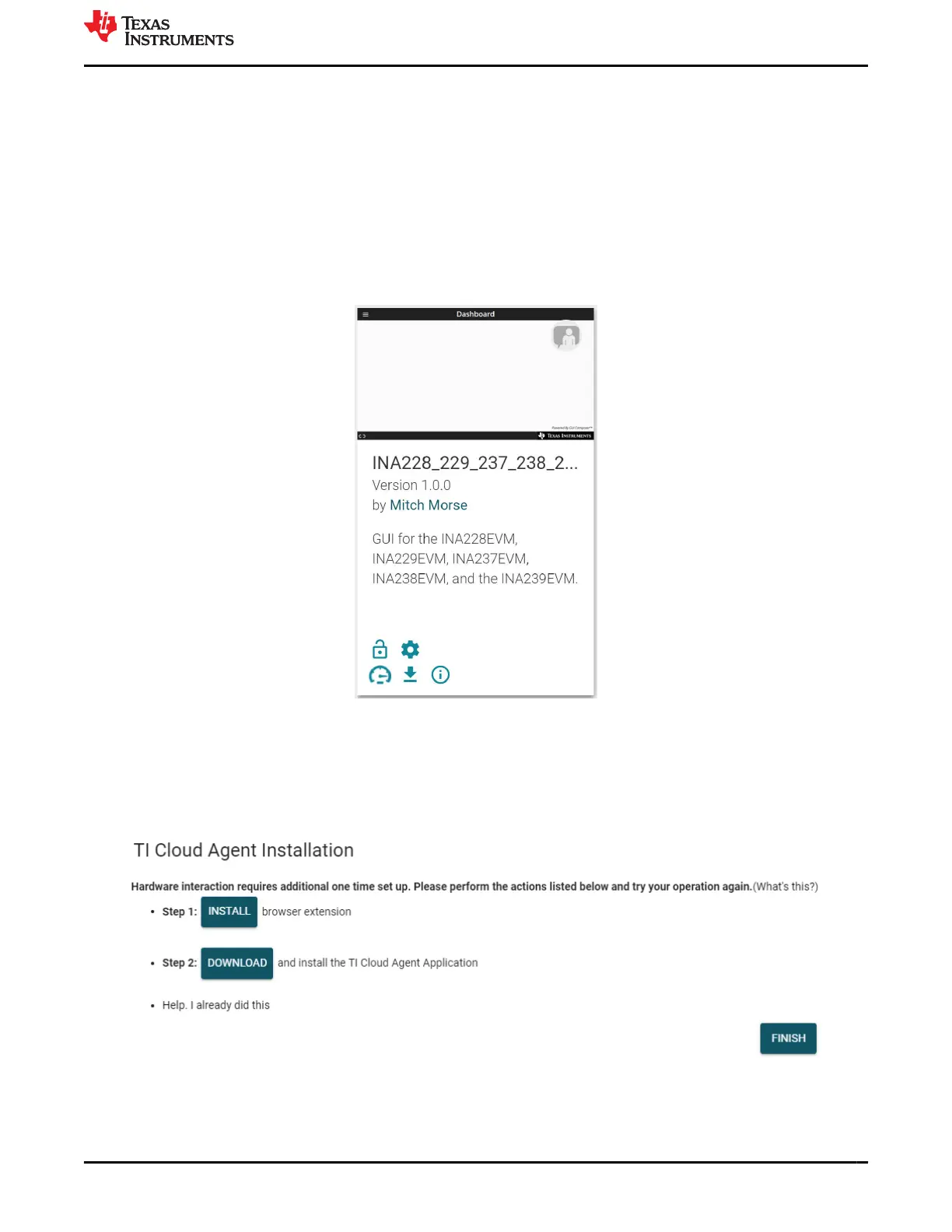

Figure 4-4. GUI Composer Application
a. The GUI link will bring up all versions of the GUI, it is recommended to launch the newest version
available.
b. For first-time GUI Composer setup, follow the prompts to download the TI Cloud Agent and browser
extension shown in Figure 4-5. These prompts will appear after you close the README.md dialog.
Figure 4-5. TI Cloud Agent
