Texas Instruments Serial Programming Adapter MSP430 - PRGS430 Environment Software and Hardware Layers

Software/Hardware Layers of the PRGS430 Environment
2-2

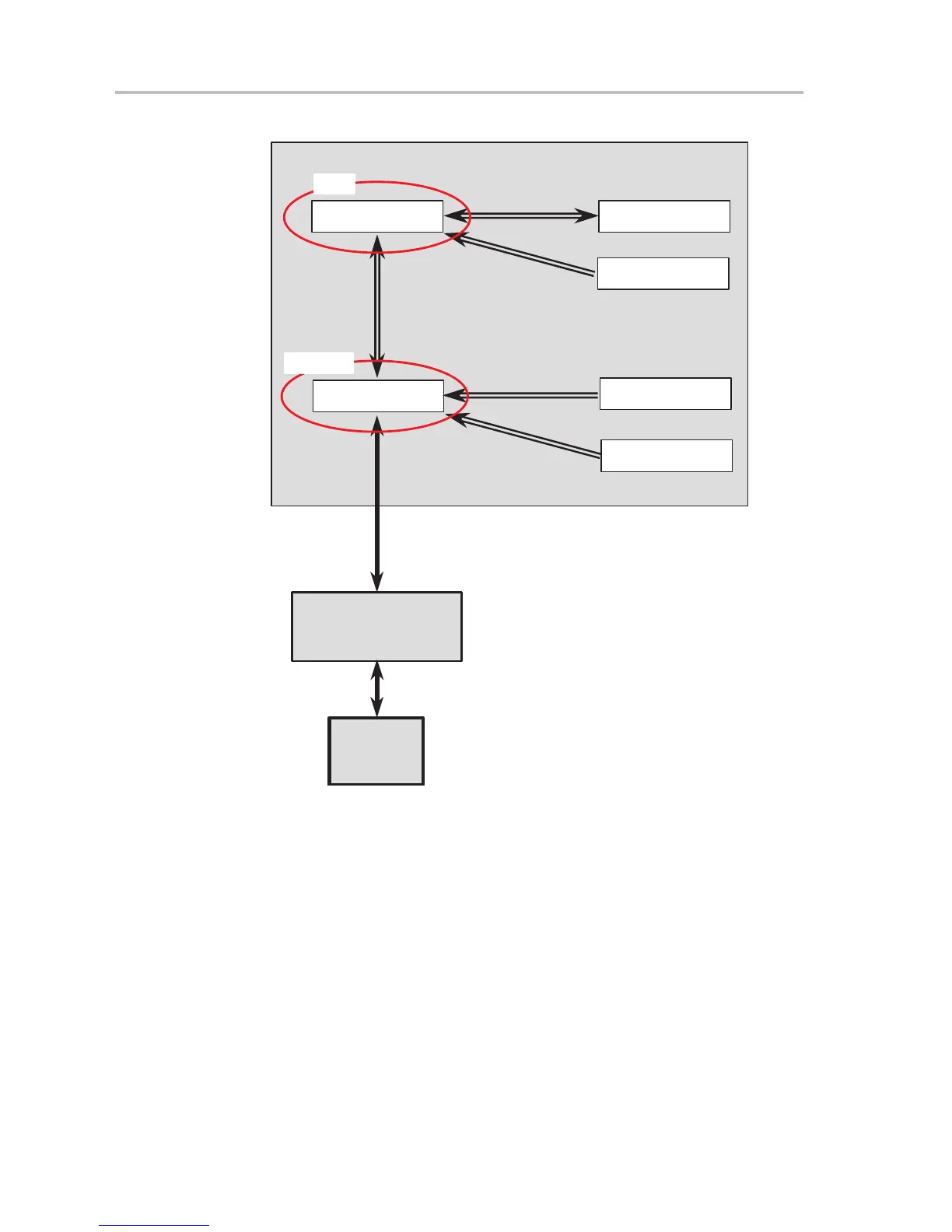

2.1 Software/Hardware Layers of the PRGS430 Environment
PRGS430.EXE PRGS430.INI
PRGS430.DLL
CommandLine
MSP430
DEVICE.CFG
PRGS430
[Project] .INI
RS232
JTAG
PC − Software
Serial Programming Adapter
Target Socket or Application
Function
GUI
There are three ways to handle and communicate with the PRGS430
hardware:
- Using the graphical user interface (see Section 2.2)
- Using command line parameters (see Section 2.3)
- Using the PRGS430.dll (see Section 2.4)
Note: this is the fastest way if the PRGS430 should be used in an
in-system program and test environment.
