MSP-PRGS430 Circuit Diagrams
3-5
Hardware
3.4 MSP-PRGS430 Circuit Diagrams
The MSP-PRGS430 circuit diagrams are found in Appendix B.
3.5 Location of Components − MSP-PRGS430

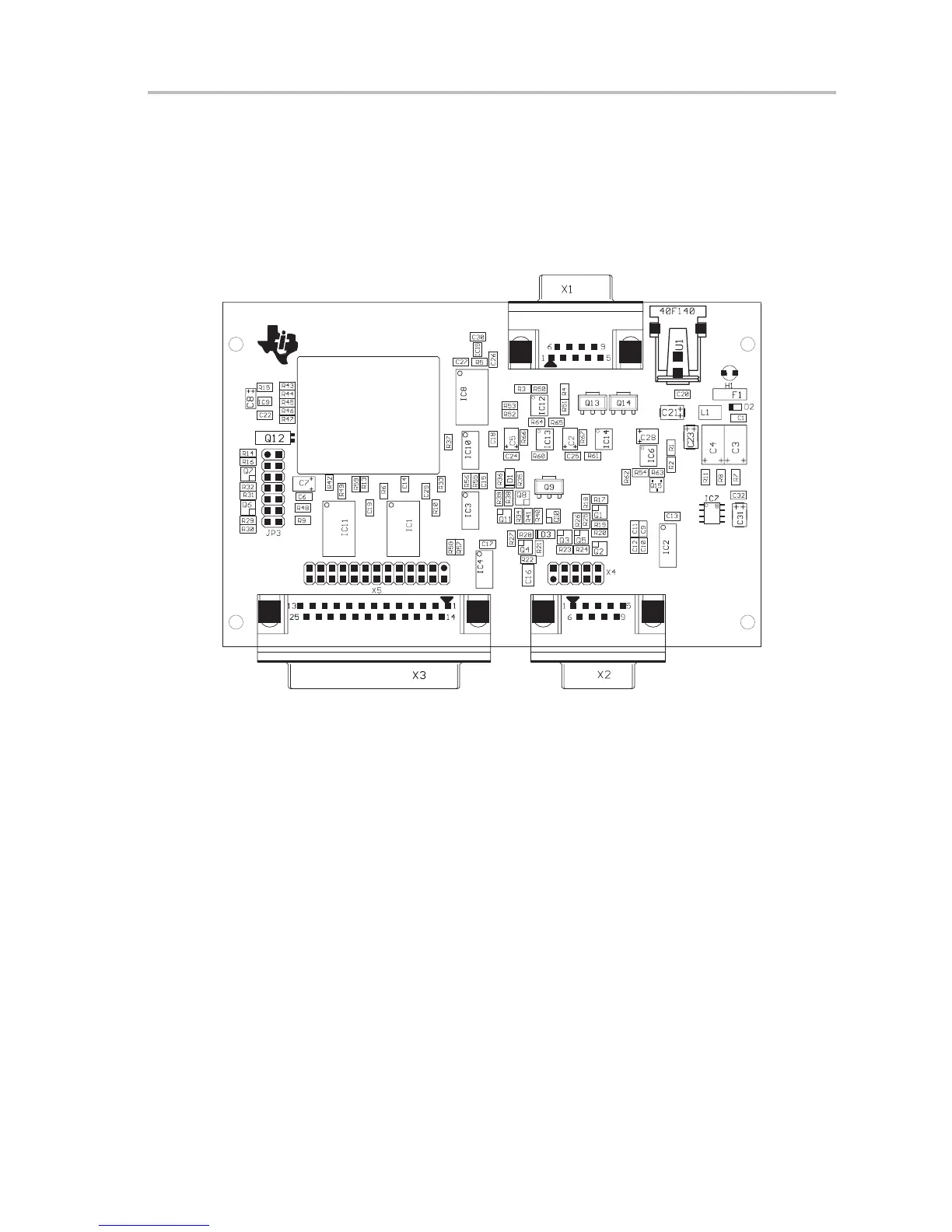

Figure 3−3. MSP-PRGS430 Components
MSP430P337
Note: Do not use J2 pin 9 as RST/NMI pullup.
