Top-Two connectors:
• USB-Micro connector (PWR) for auxiliary power
required by some components. Also used for
updating the Hub internal software.
• Breadboard Connector with 20 labeled pins for
communication with connected components. A
breadboard and jumper cables are included with
the TI-Innovator™ Breadboard Pack, sold
separately.

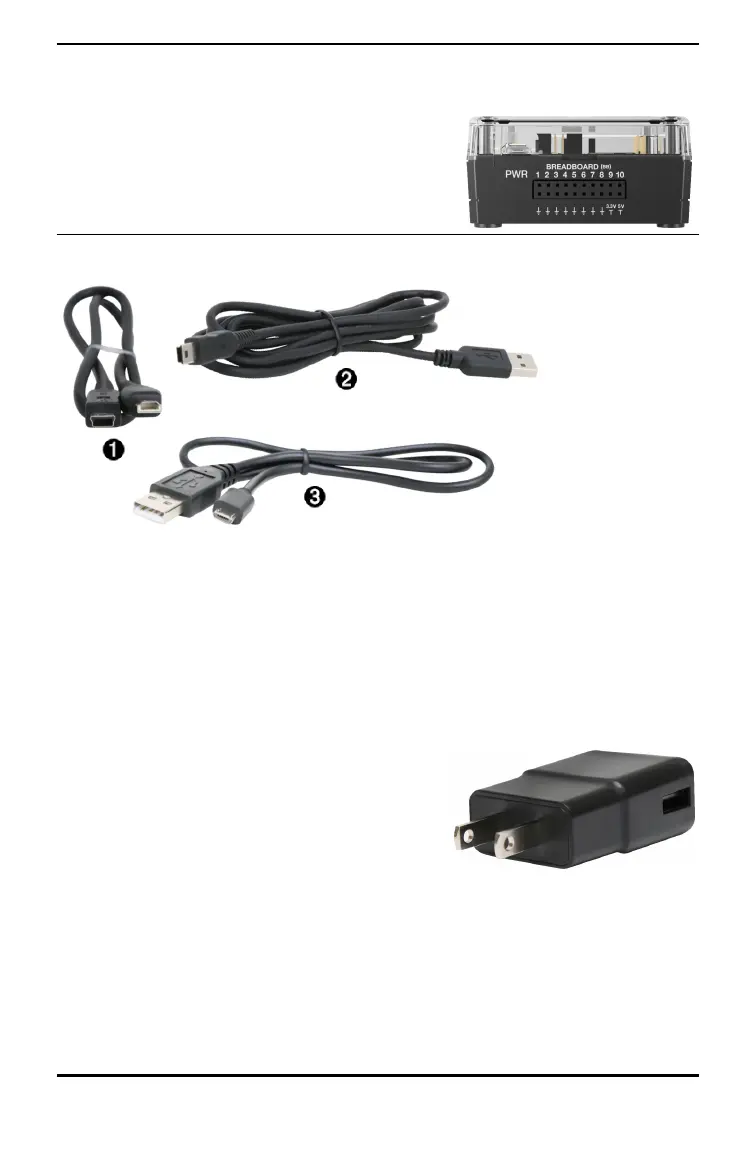

USB Cables
ÀUSB Unit-to-Unit (Mini-A to Mini-B)-Connects the Hub to a TI CE Graphing
Calculator or a TI-Nspire™CX Handheld.
ÁUSB Standard A to Mini-B-Connects the Hub to a computer running
TI-Nspire™CXSoftware.
ÂUSB Standard A to Micro-Connects the PWR port of the Hub to a TI approved
power source required by some peripherals.
Auxiliary Power
TIWallCharger - Supplies power through the
TI-Innovator™Hub for components, such as motors,
that require additional power.
The optional External Battery Pack can also provide
auxiliary power.
Note: An auxiliary power LED on the Hub indicates
when the Hub is receiving auxiliary power.
Connecting TI-Innovator™Hub
The TI-Innovator™Hub connects by a USB cable to a graphing calculator or computer.
The connection lets the Hub receive power and exchange data with the host.
