Note: Some peripherals, such as motors, may require auxiliary power. For more
information, see Using an Auxiliary Power Source (page 5).

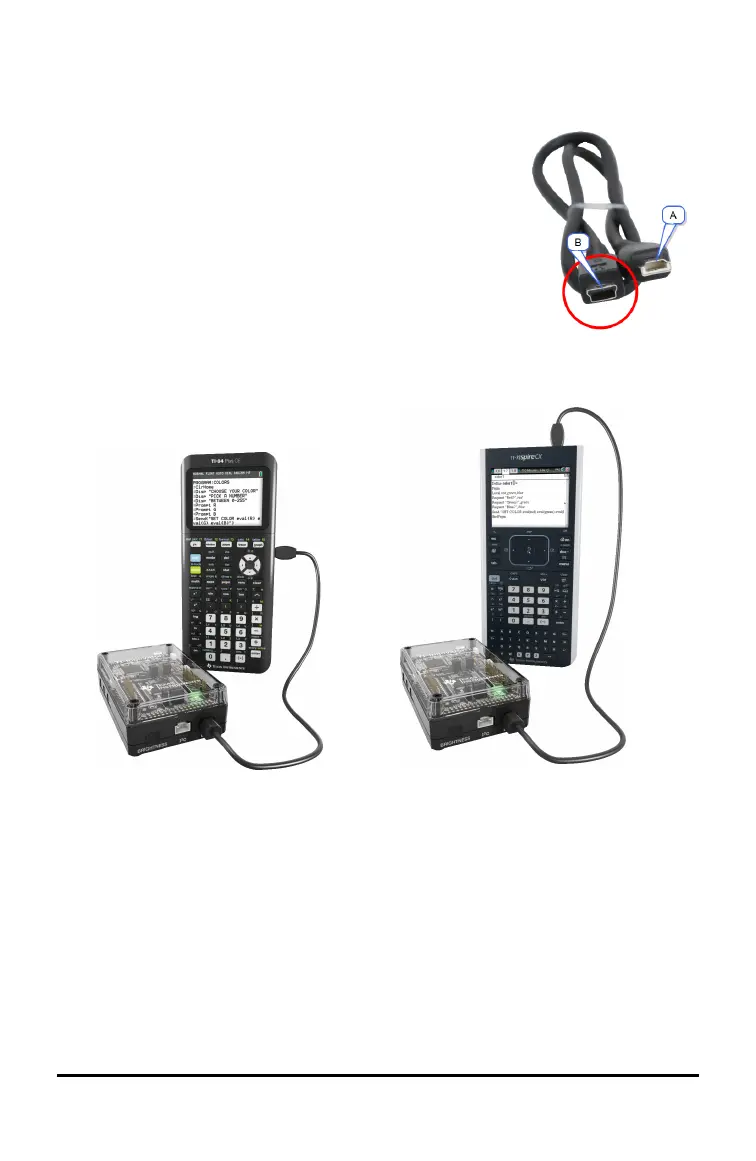

Connecting to a Graphing Calculator
1. Identify the "B" connector on the USB Unit-to-Unit (Mini-A
to Mini-B) cable. Each end of this cable is embossed with
a letter.
2. Insert the "B" connector into the DATA port at the bottom
of the TI-Innovator™Hub.
3. Insert the free end of the cable (the "A" connector) into the USB port on the
calculator.
Hub connected to
TI CE Graphing Calculator
Hub connected to
TI-Nspire™CX Handheld
4. Turn on the calculator if it is not already on.
The power LED on the Hub glows green to show that it is receiving power.
4
