INS878EN-2 23/68
from the panel.
To use the RLED feature put switch 1 in the up position which will disable the LED.
When an output is triggered 0V is applied to the RLED terminal which will enable
the LED. On a Texecom control panel the output can be programmed as either
Engineer Logon or Walktest.
1.4 Mode selection

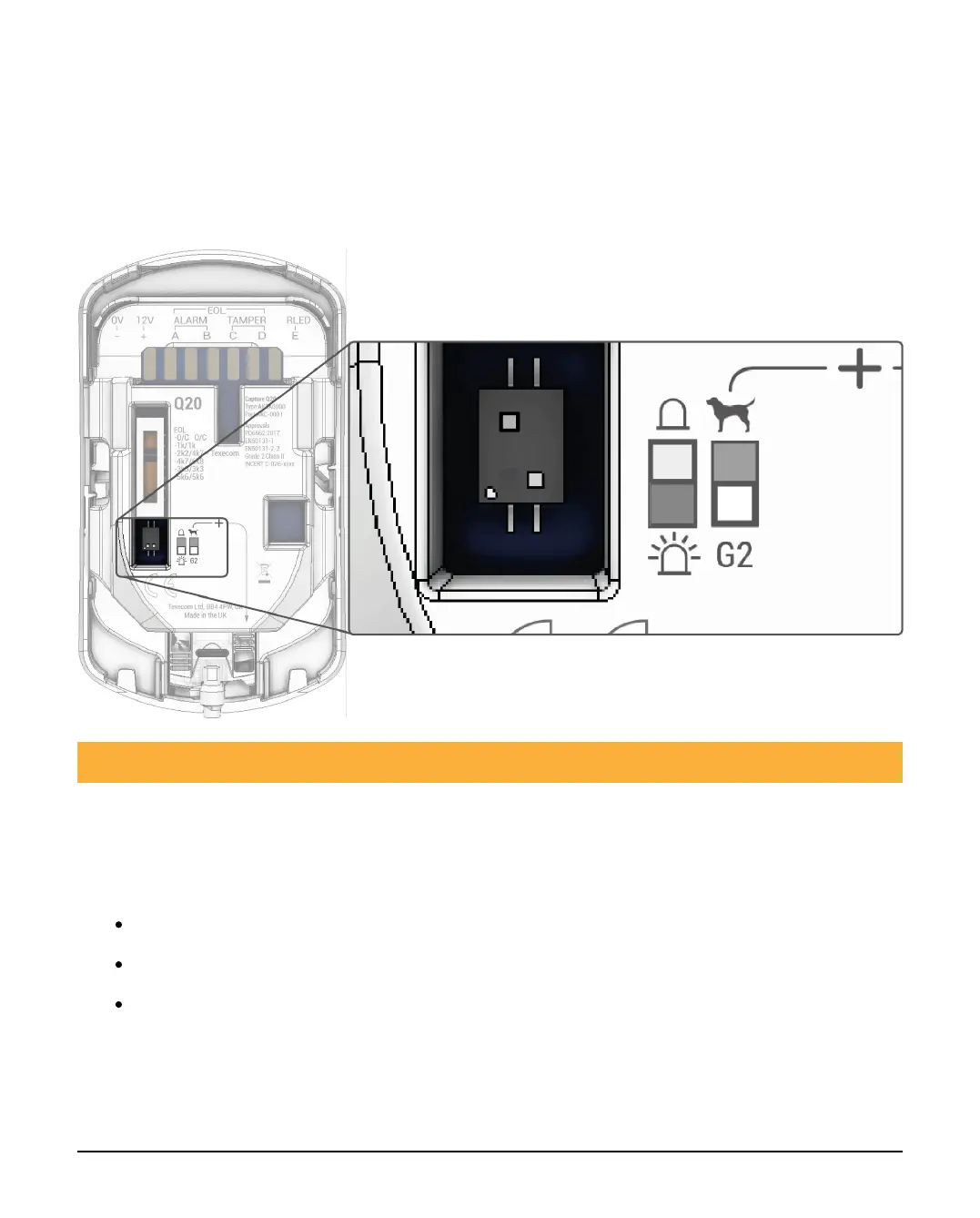

G2 all models (Q20 shown)
This is the default state for optimum catch performance and false activation
immunity. Switch 2 and the lens obscuration slider should be in the down position.
P15 15m @ 90° compliant to EN50131-2-2, INCERT and PD6662
Q20 20m @ 90° compliant to EN50131-2-2, INCERT and PD6662
D20 20m @ 85° compliant to EN50131-2-4, INCERT and PD6662
