Installation Premier LCD & LCDL Installation Manual
12 INS180

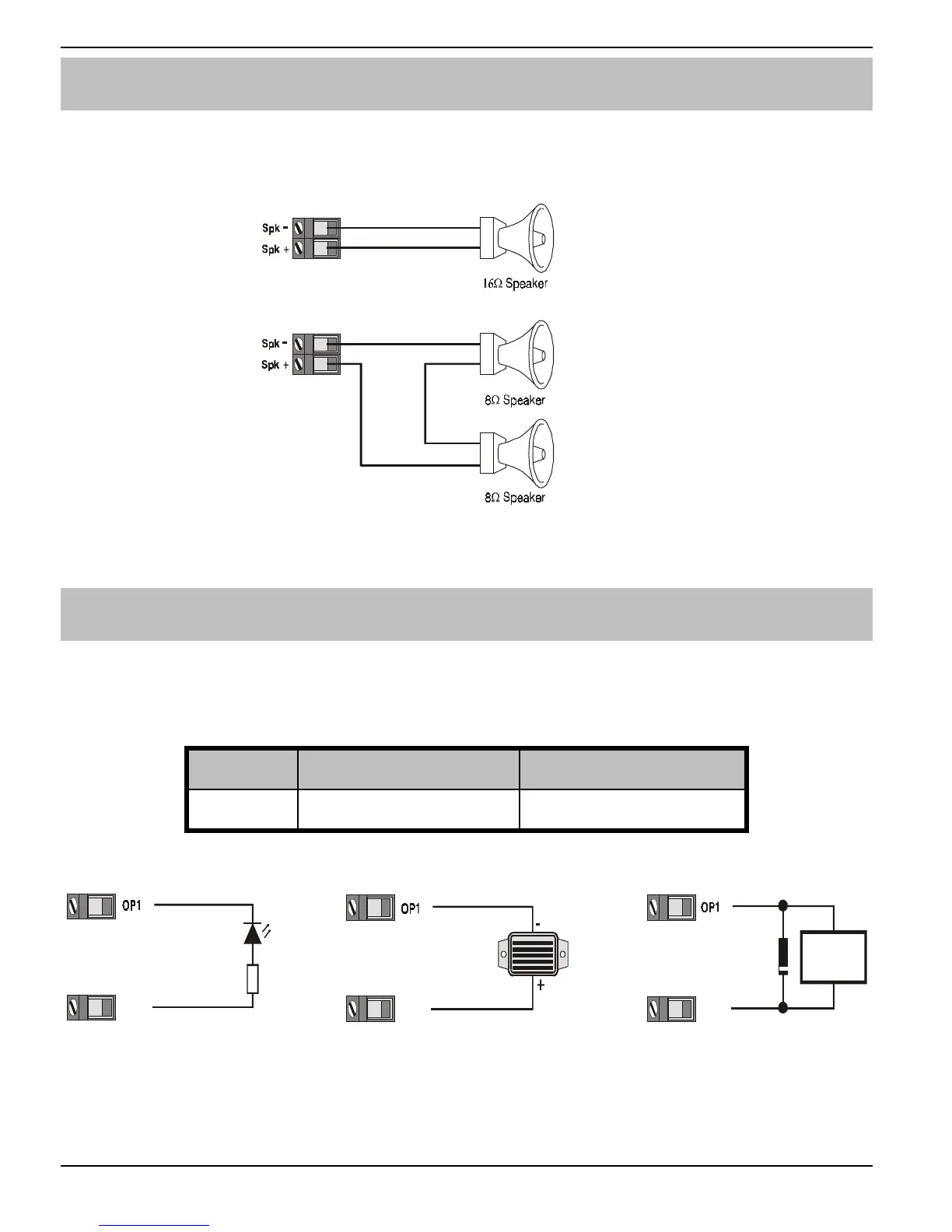

Connecting Speakers to the Keypad
The Premier LCDL has an output on it that can be used to drive loudspeakers. The
output is capable of driving up to one 16Ω or two 8Ω loudspeakers as shown below:
The speakers should be tested to ensure correct operation (see page 13 for details).
Connecting the Keypad Output
Both keypads have 1 fully programmable output. This output can be used to drive
auxiliary devices such as LED’s, sounders or relays etc. The table below shows the
electrical characteristics for the output:
No Max Current Type
1 100mA Switched -ve
The diagram below shows typical wiring examples for the outputs:
For details on programming outputs, please refer to the Premier 888/8168
Installation Manual. Once the outputs have been programmed, they should also be
tested to ensure correct operation (see page 13 for details).
1K0
LED
+12V
12V Buzzer
+12V
Diode
(IN4148)
Relay
+12V
