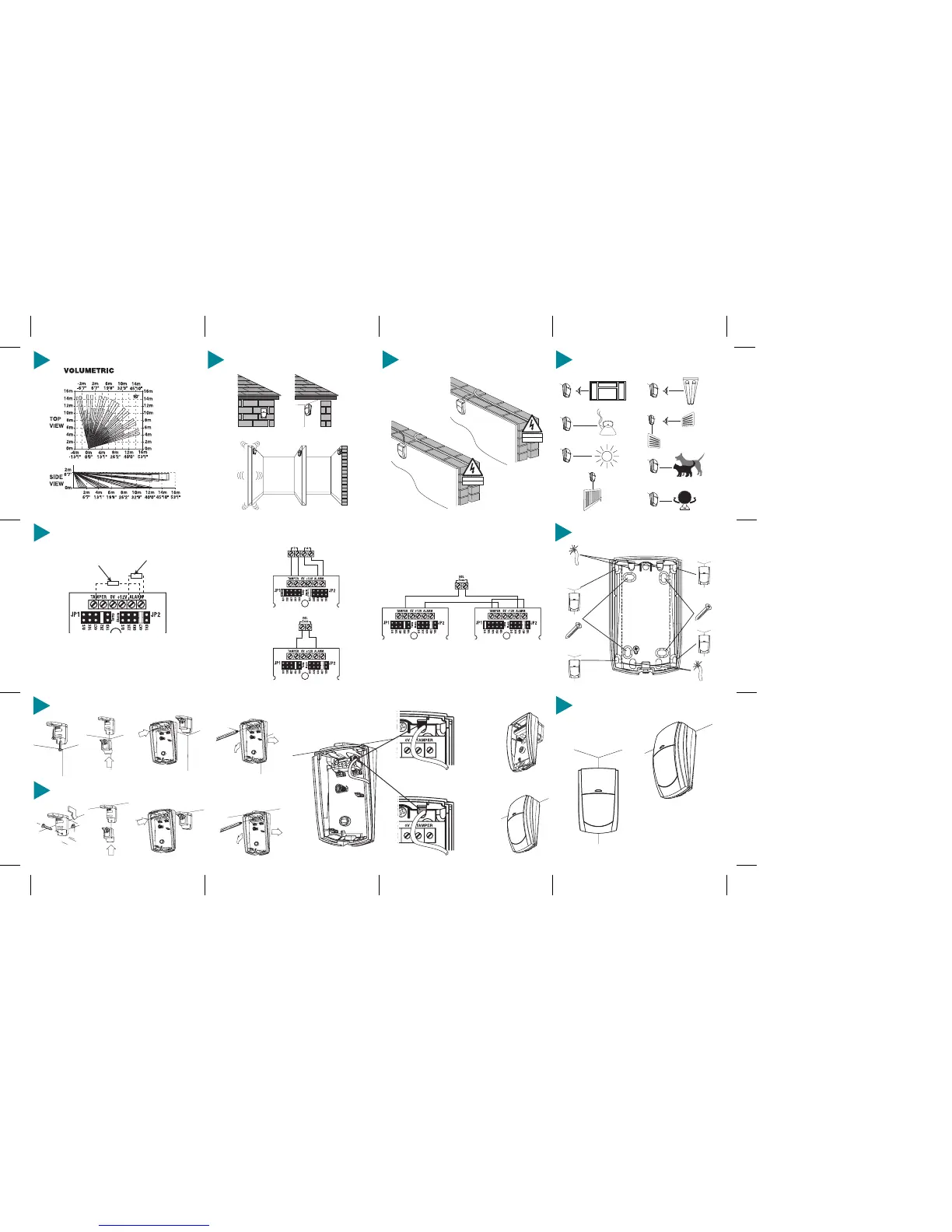

16 WALL MOUNT BRACKET
15 CEILING MOUNT BRACKET
17 MOUNTING WITHOUT
BRACKETS
9 COVERAGE PATTERN
✓
✗
Seal all holes
2
2 41 3
1 3
4
6
5
6
See Mounting Height Diagram (Section 7)
INS 244-6
13 EOL RESISTOR JUMPER LINKS
The headers JP1 and JP2 (see Section 4) are used to select resistances for End-of-Line
(EOL) wiring applications.
If EOL wiring is not used, the headers should be left in the default (O/C) position.
If the required resistance values are not available, leave the headers in the O/C position
and wire in external resistors as normal.
EOL Settings for Texecom Panels JP1 JP2
Veritas 10k 22k
Premier & Premier International 2k2 4k7Cexample
EXAMPLES OF EOL JUMPER LINK USE - Values shown are for Premier Panels
Double Pole
(jumper links not used)
Dual End-of-Line
(DEOL)
Two DEOL detectors
to one zone
JP1 Selects the End-of-Line
resistance. Equivalent to wiring
a resistor of the selected value
as shown.
JP2 Selects the resistance
across the alarm relay.
Equivalent to wiring a resistor
of the selected value as
shown.
10 MOUNTING
For indoor use only
11 WIRING
Do not run cable parallel to mains wiring
✓
✗
✓
✗
✓
230V
110V
230V
110V
✓
✗
12 CHOOSING A LOCATION
Avoid common false alarm sources
Mount on a stable surface
14 DETECTOR KNOCKOUTS
