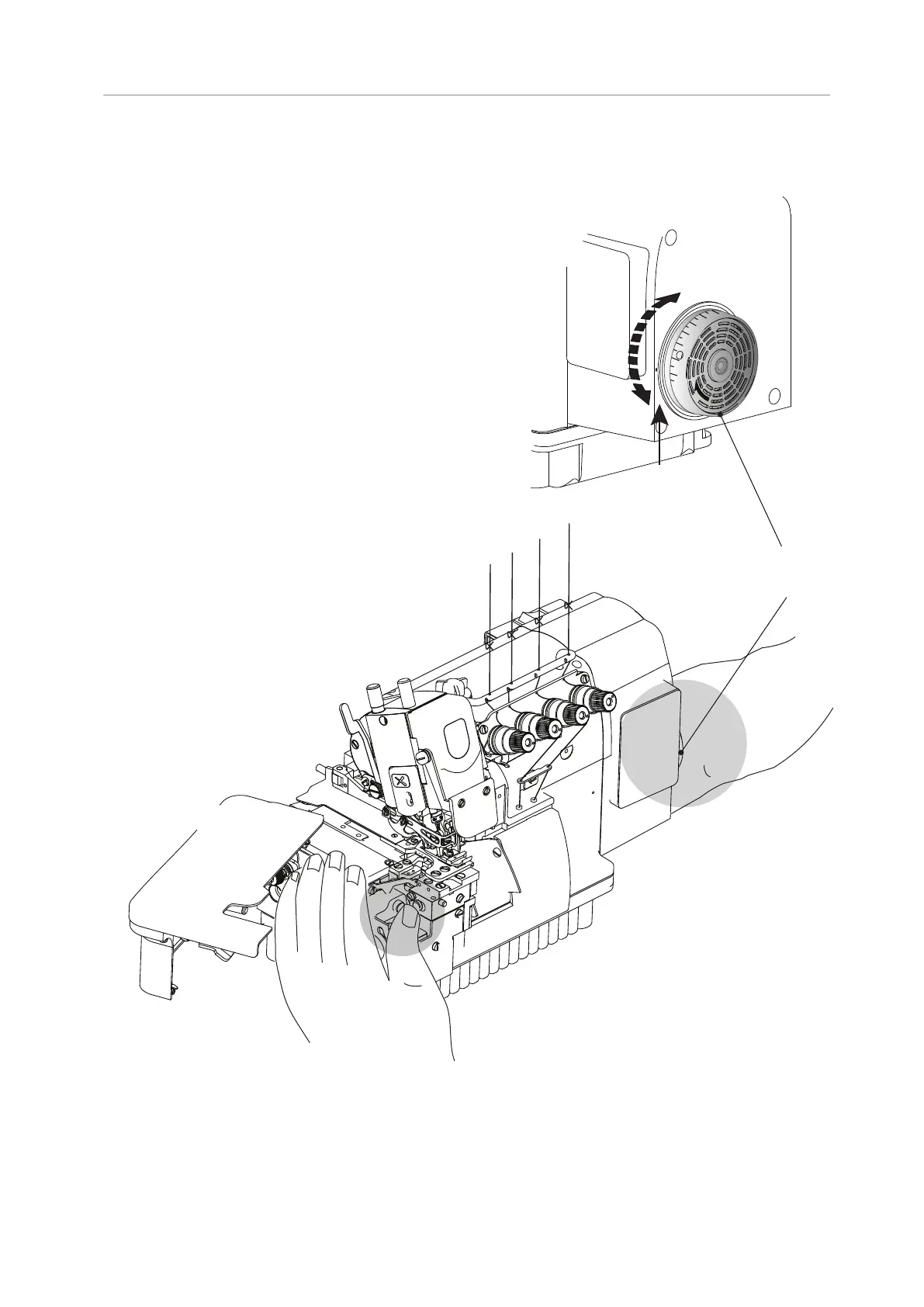

11. Adjusting stitch length
Push Button
Hand Wheel
①While pressing the push button,turn the hand-
wheel to seek the position at which the push
button goes further into the depth.
②Then,keeping the push button pressed,
turn the handwheel and set the desired
scale to the aligning mark.
Note: Stitch length adjustment must only be
made after the differential feed ratio
has been changed.
2
3
4
5
6
7
1
Ailgning Mark
Fine
Coarse
11
TEXI Tre 04 T, Quattro 24 T, Cinque 35 T Operation Manual
