REGULATION
Attention: Any adjustment can be performed only by qualified personnel. Guards of the machinery, to be removed to
allow the control and regulation, should be re-installed before restarting the machine.

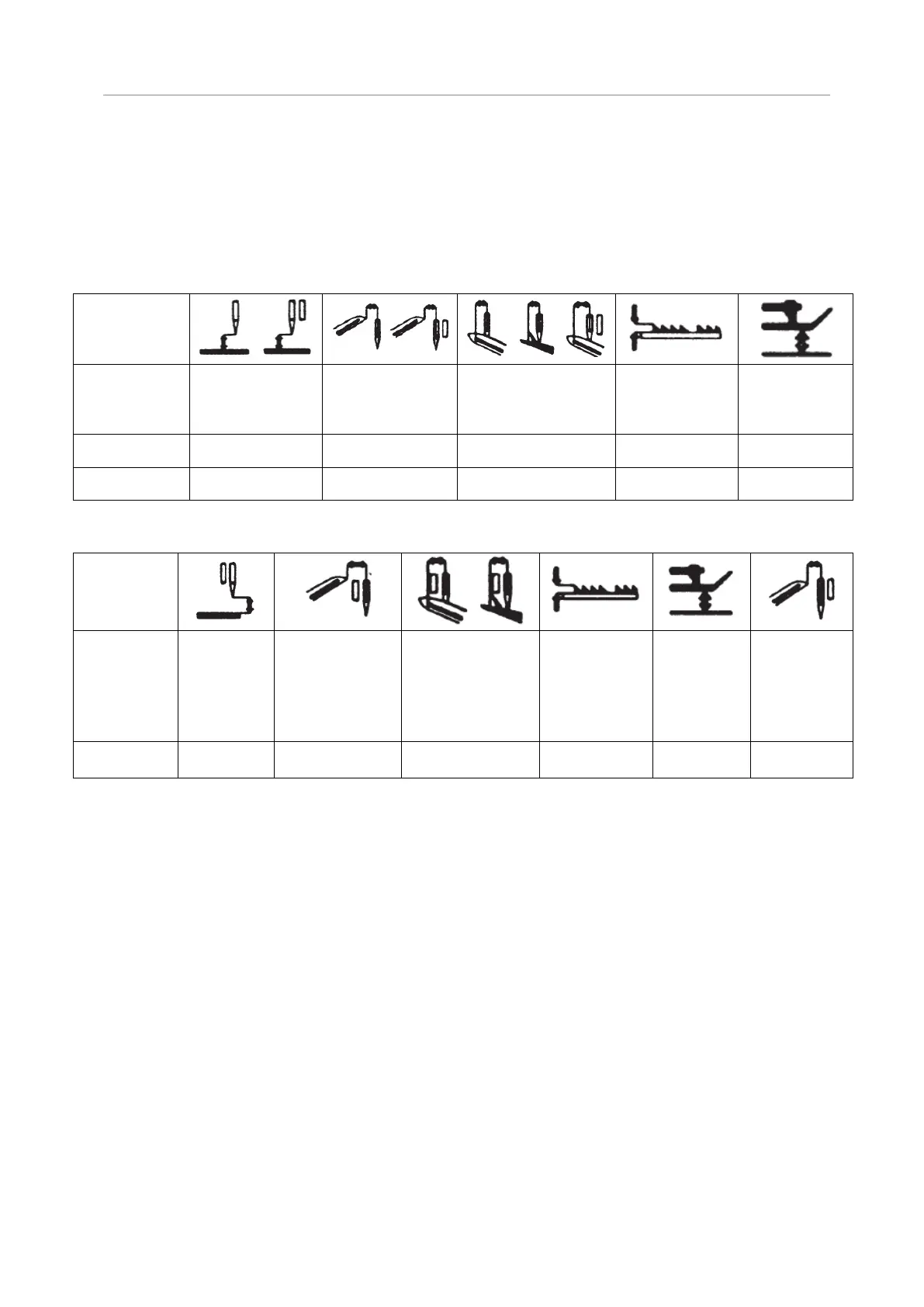

Settings
Needle bar height
(mm)
Lower looper to
needle clearance
(mm)
Upper looper to
needle clearance
(mm)
Bottom
transporter
height (mm)
Fabric
clearance (mm)
Tre 04 T 10.1 4.2 3.3 0.9 – 1.1 5.5
Quattro 24 T 10.6 4.2 3.3 0.9 – 1.1 5.5
Needle bar
height (mm)
Lower looper to
needle clearance
(mm)
Upper looper to
needle clearance
(mm)
Bottom
transporter
height (mm)
Fabric
clearance
(mm)
Chainstitch
looper to
needle
clearance
(mm)
Cinque 35 T 10.6 3.9 3.3 0.9 – 1.1 5.5 1.5
13
