TEXI Tronic 7 NF operation manual

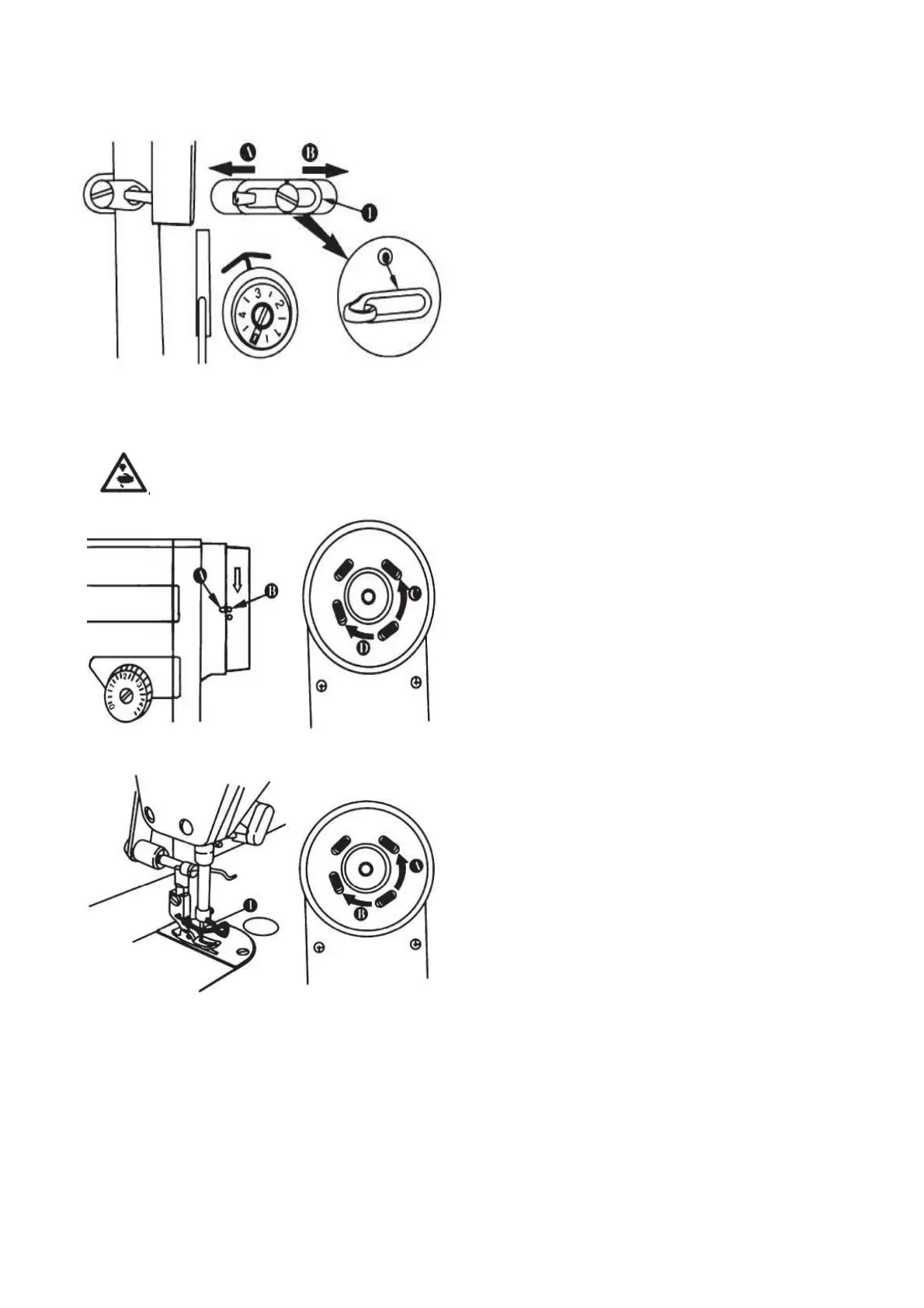

16. Adjusting the thread take-up stroke
1. When sewing heavy materials, move thread guide (1) to
the left (in direction A) to increase the length of thread
pulled out by the thread take-up.
2. When sewing light materials, move thread guide (1) to
the right (in direction B) to decrease the length of thread
pulled out by the thread take-up.
3. Normally, the standard is marker line C of thread guide
(1) is aligned with the center of the screw
17. Adjusting the needle stop position
Warning: Turn OFF the power before starting the work as to prevent accident caused by abrupt start of the
sewing machine.
Stop position after thread trimming
1. The standard needle stop position is obtained by aligning
marker dot A on the pulley cover with white marker dot B
on the hand-wheel.
2. Stop the needle in its highest position, loosen screw (1) to
perform adjustment within the slot of the screw.
The needle stop timing is advanced if you move the screw in
direction C.
The needle stop timing is delayed if you move the screw in
direction D
Lower stop position
The lower needle stop position when the pedal is returned to
the neutral position after the front part of the pedal is depressed
can be adjusted as follows:
1. Stop needle (1) in its lowest position.
2. Loosen screw (2), and make Adjustment within the slot of
the screw.
Moving the screw in direction A advances the needle stop
timing.
Moving the screw in direction B delays the timing
11
