BELT REPLACEMENT

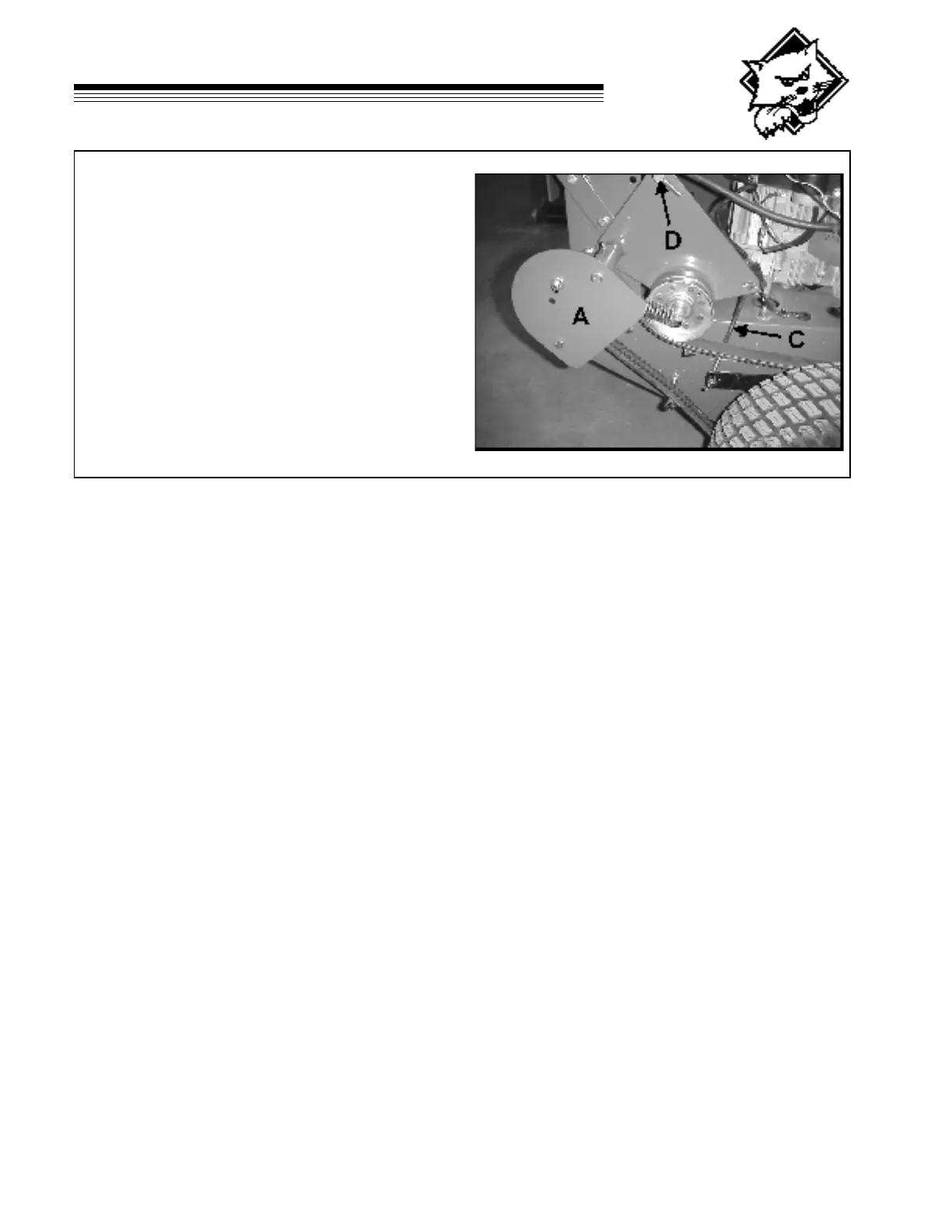

WHEEL DRIVE BELT - Remove brake rod C and
tracton control rod D from bellcrank. Remove bottom
bolt and spacer from fender A and loosen the other
bolt that holds bellcrank. Rotate bellcrank and idler
up and out of the way. The wheel drive belt will be
slack enough to be removed from its pulleys and
passed over the drive wheel. Replace in the reverse
order, readjust traction control rod and brake rod.
(Also see Traction Rods and Wheel Belt Tension in
ADJUSTMENTS section.)
