3
Gear
Drive
Midsize
GENERAL NOTE: FRONT, REAR, RIGHT HAND AND LEFT HAND REFERENCES BELOW
ARE WITH RESPECT TO AN OPERATOR AT THE CONTROLS.

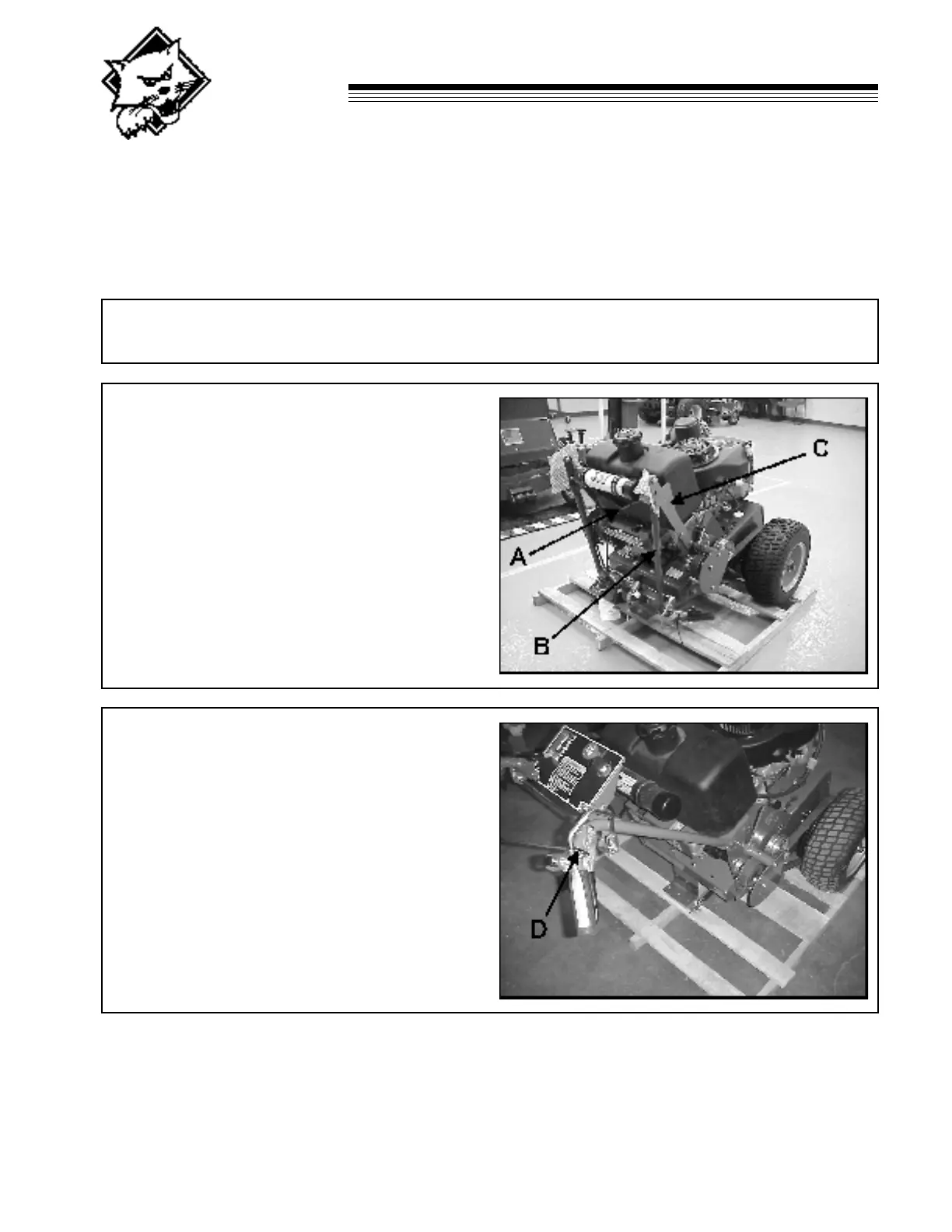

ASSEMBLY/SET-UP INSTRUCTIONS
2. Remove gear selector handle A from the power
unit and set aside for later use.
3. Unbolt the upper handle B from shipping
brackets C.
4. Unbolt the shipping brackets C from the lower
handle.
5. Attach the upper handle to the lower handle using
the 3/8"-16 X 1" bolts and 3/8"-16 nuts removed
in Step 3 as shown.
6. Remove tie wrap D from the traction control lever.
1. UNCRATE - Place both power unit and cutterdeck crates on a level surface. Remove sides and top from
both the power unit and cutterdeck crates.
