4
Gear
Drive
Midsize

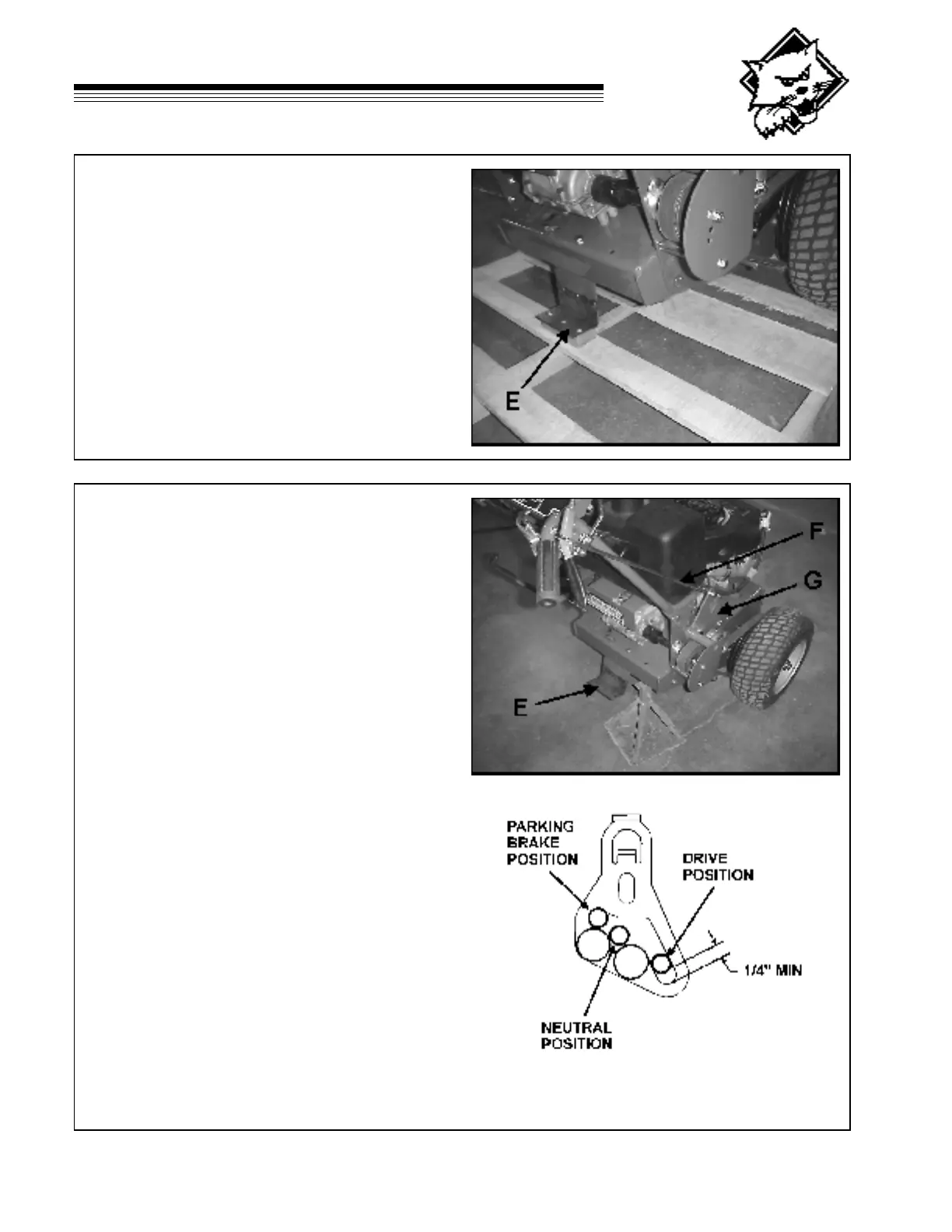

ASSEMBLY/SET-UP INSTRUCTIONS
8. Remove the power unit from the crate and
support the rear of the power unit using a
jackstand.
9. Remove shipping bracket E.
10. Attach traction control rods F by inserting the
swivel through the upper hole in the bellcranks G
and the other end of the traction control rods
through the traction control lever on the
handlebar. Secure with washers and hairpins.
11. To adjust traction control rods, remove the
traction control rod swivel and the brake rod from
the bellcrank G and adjust swivel up or down the
control rod so that once reinstalled there is a 1/4"
(6.35mm) gap between the bottom of the rod and
the bottom of the traction lock.
12. To adjust the brakes, remove the brake rod from
the bottom of bellcrank G and set the traction
lever in the neutral position. Adjust the brake rod
by turning it in or out of the swivel in the brake
arm until it just goes into the hole on the
bellcrank. Secure with hairpin.
NOTE: The machine should not move with the
traction levers in the parking brake position. If
machine moves in the parking brake position,
readjust brake rod length. Verify that machine
can be moved easily when the traction levers are
placed in the neutral position.
7. Unbolt shipping bracket E from the crate.
NOTE: It will be necessary to support the rear of
the power unit and level it for attachment to the
cutterdeck.
