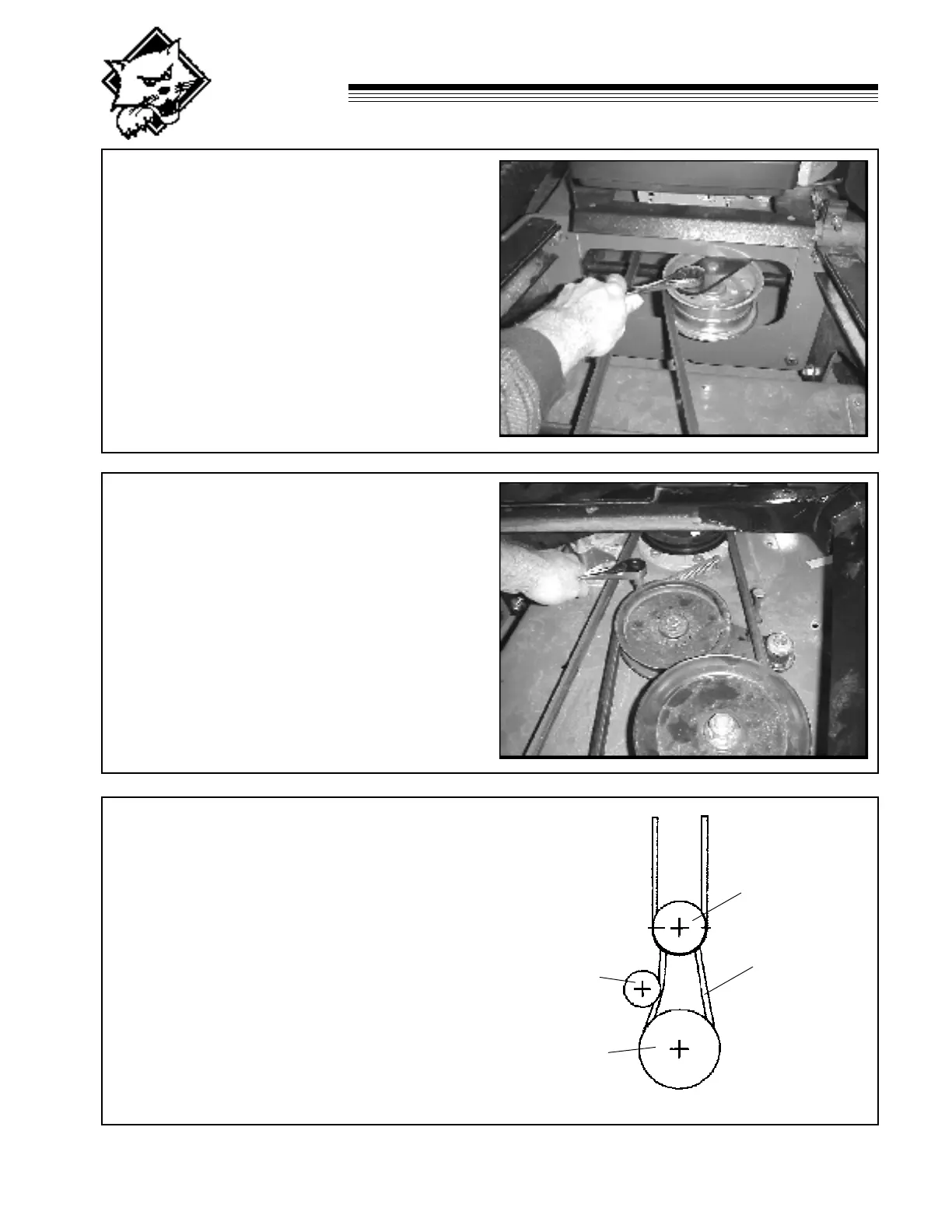

BELT REPLACEMENT
CUTTERDECK BELT
1. Remove PTO belt.
2. Rotate idler arm using a 3/8" ratchet or breaker
bar and remove belt.
3. Replace in the reverse order.
GEARBOX DRIVE BELT
1. Remove PTO belt from engine clutch.
2. Unbolt clutch stop pin.
3. Rotate idler arm using a 3/8" ratchet or breaker
bar.
4. Remove gearbox drive belt.
5. Replace by following steps in reverse order.
PTO BELT
1. Rotate idler arm using a 3/8" ratchet or breaker
bar and remove belt.
ENGINE
PULLEY
IDLER
PULLEY
View under engine deck
GEARBOX
PULLEY
GEARBOX
DRIVE
BELT
