ASSEMBLY/SET-UP INSTRUCTIONS
CUTTERDECK ATTACHMENT: Two types of cutterdeck mounting systems are available, fixed and floating.
Fixed mounting rigidly attaches the cutterdeck to the power unit. Floating mounting allows the cutterdeck to
move independant of the power unit providing a more uniform cut. Follow the appropriate instructions below
for the type of cutterdeck being attached to the power unit.
FIXED CUTTERDECK ATTACHMENT

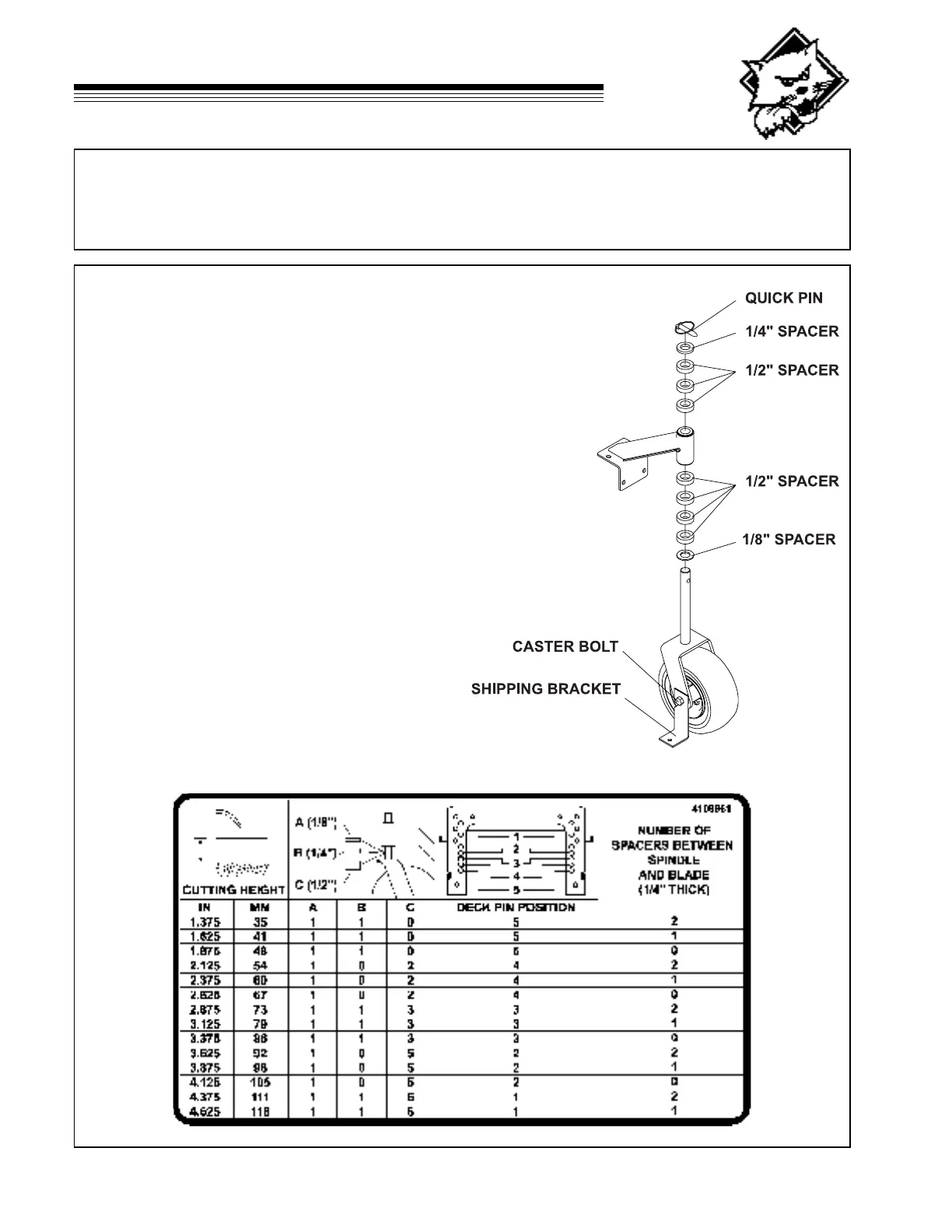

1. Remove the cutterdeck from the crate.
2. Unbolt the caster wheels and the shipping
brackets from the crate.
3. Remove the shipping bracket from the caster
wheel by loosening the caster bolt and sliding the
shipping bracket off and retighten caster bolt.
4. Remove quick pin and remove the appropriate
number of spacers for the desired height of cut.
See height of cut chart below.
NOTE: Height of cut chart is also located on
bottom of belt cover or in the Operation & Safety
Manual.
5. Repeat for other caster wheel assembly.
