SECTION 6 CESSNA
WEIGHT AND BALANCE/ MODEL 172S NAV III
EQUIPMENT LIST GFC 700 AFCS
U.S.

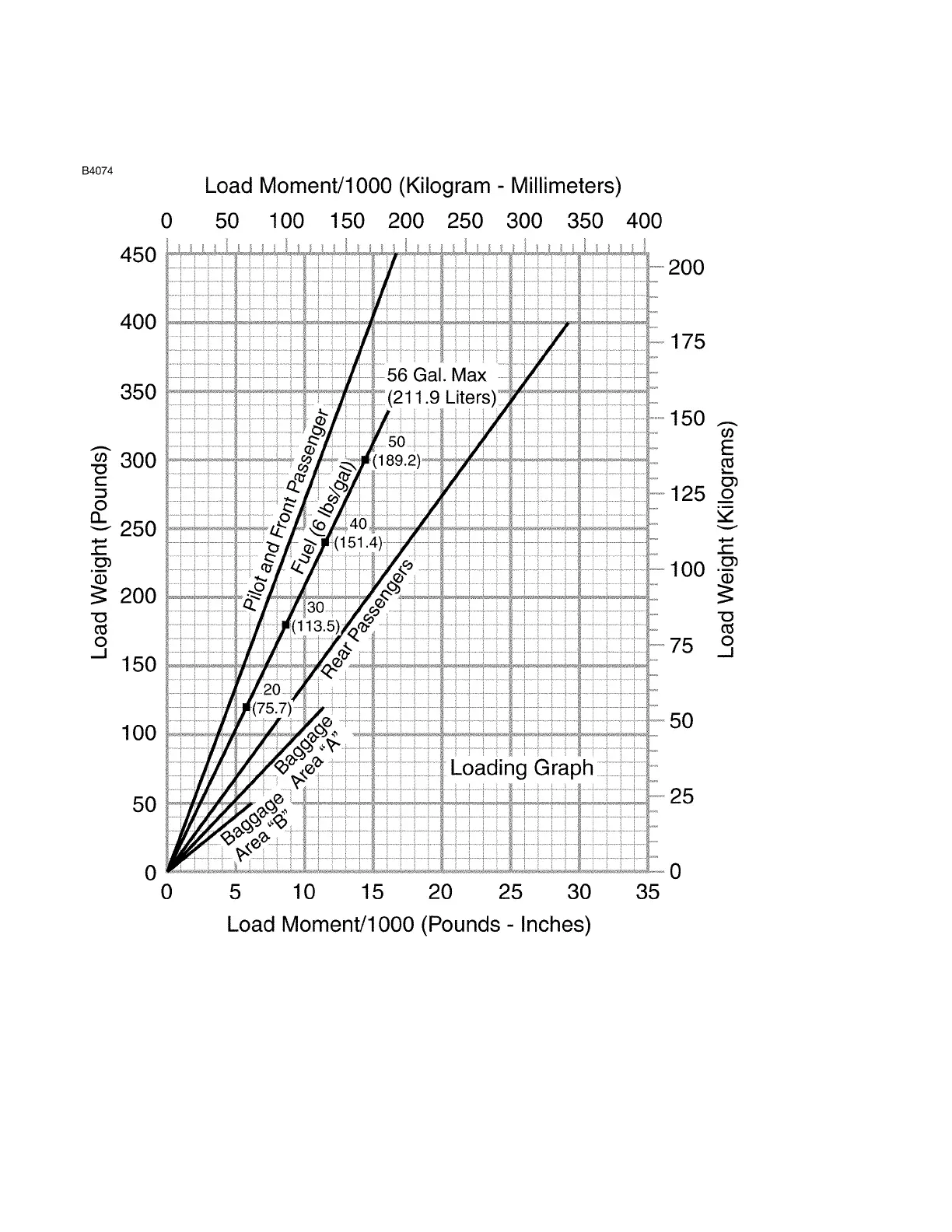

LOADING GRAPH
Line representing adjustable seats shows the pilot and
front seat passenger center of gravity on adjustable seats
positioned for average occupant. Refer to the Loading
Arrangements diagram for forward and aft limits of
occupant C.G. range.
Figure 6-4
172SPHBUS-00
6-12
