McCAULEYPROPELLERSYSTEMS
CONSTANTSPEEDCOMPOSITEOWNER/OPERATOR
INFORMATIONMANUAL
A
A
C2173
0103T1015
AA0103T1015
Refer to the aircraft and system identification and information table.
NOTE:
VIEW A-A
0.50 Inch Typical
0.125 Inch Overlap
Edge of Deice Boot With
Sealant by 0.125 Inch
as Shown
X (NOTE)
Deice Boot
Restrainer Strap
Sealer
0.250 Inch, Overlap
Edge of Restrainer
Strap as Shown
0.250 Inch
Y (NOTE)
Nylon Cable Tie
Leave at Least 0.125 Inch
(3.18 mm) of the Leading
Edge Guard Bare Metal with
No Sealer.
Leading Edge Guard
1 Inch
Start In This Area
(Approximately 115
Degrees From the
Deice Boot Lead Strap)
and Wrap Around Prop
Blade So That a Double
Thickness Will Cover the
Deice Boot Lead Strap.
Trim Restrainer Strap So
That It Will End Approximately
as Shown.
Nylon Cable Tie End Shall
be Located Adjacent to
Restraining Strap End

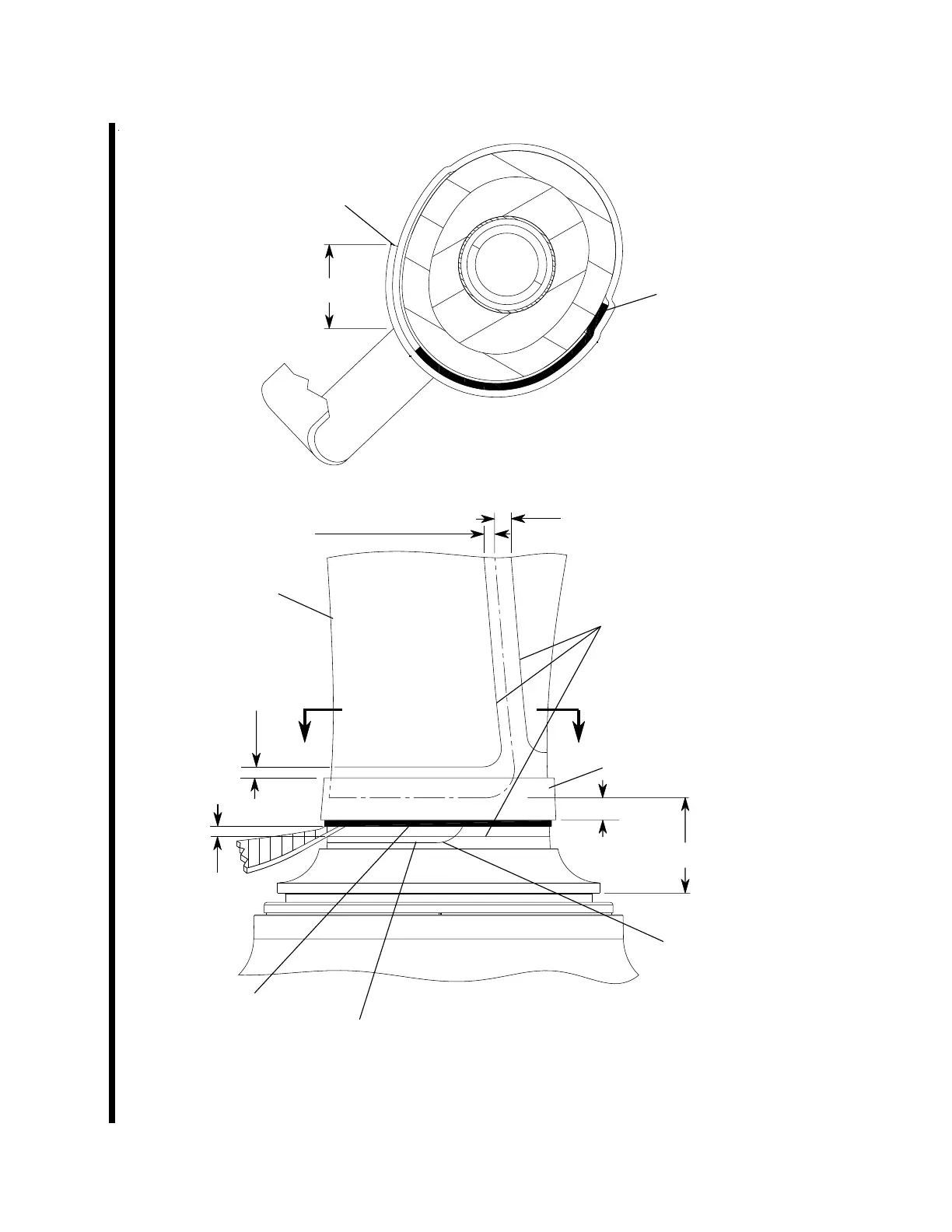

RestrainerStrapInstallation(UsedOnlyOnIntegralLeadTypeDeiceBoots)
Figure202(Sheet1)
61-03-00Page208
©McCauleyPropellerSystemsJan9/2017
