GENERAL SPECIFICATIONS
Owner’s Manual and Service Guide

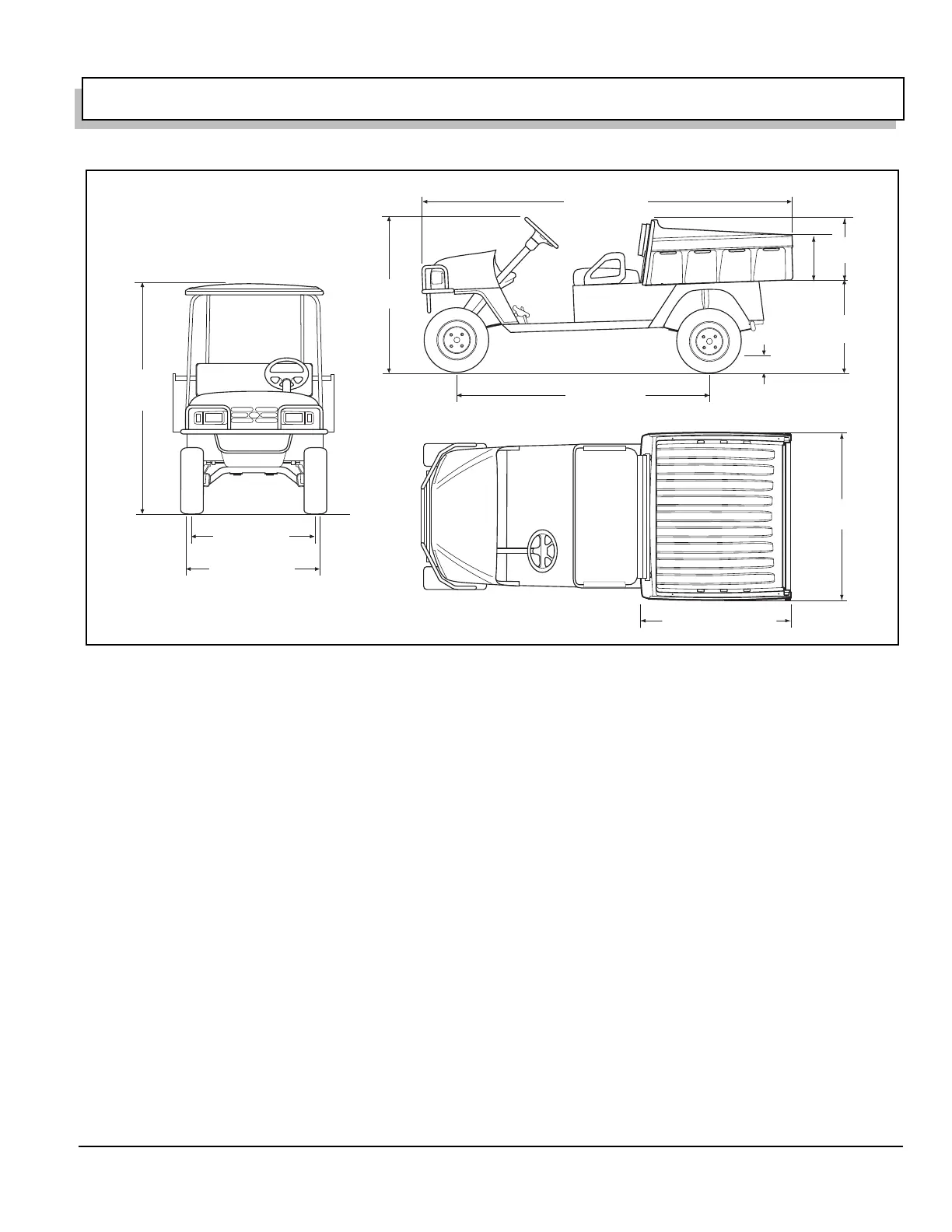

Fig. 44 Vehicle Dimensions
32 in
(81 cm)
6 in
(15 cm)
110 in (280 cm)
49 in
(125 cm)
77 in (196 cm)
Rear
38 in (96 cm)
Front
38.5 in (97 cm)
76 in
(193 cm)
11.5 in
(29 cm)
18 in
(46 cm)
42.5 in (108 cm)
50 in
(127 cm)
Ref Dim 1-7S
