2 SPECIFICATIONS
6
2 SPECIFICATIONS
2.1 PRODUCT IDENTIFICATION_________________________________________________
63280.........22 in., (559 mm) Professional Greens Mower
with InCommand™ control system, 4.0 H.P.
gasoline engine (Honda), Operator Presence
Control, grass catcher, brakes and
kickstand.

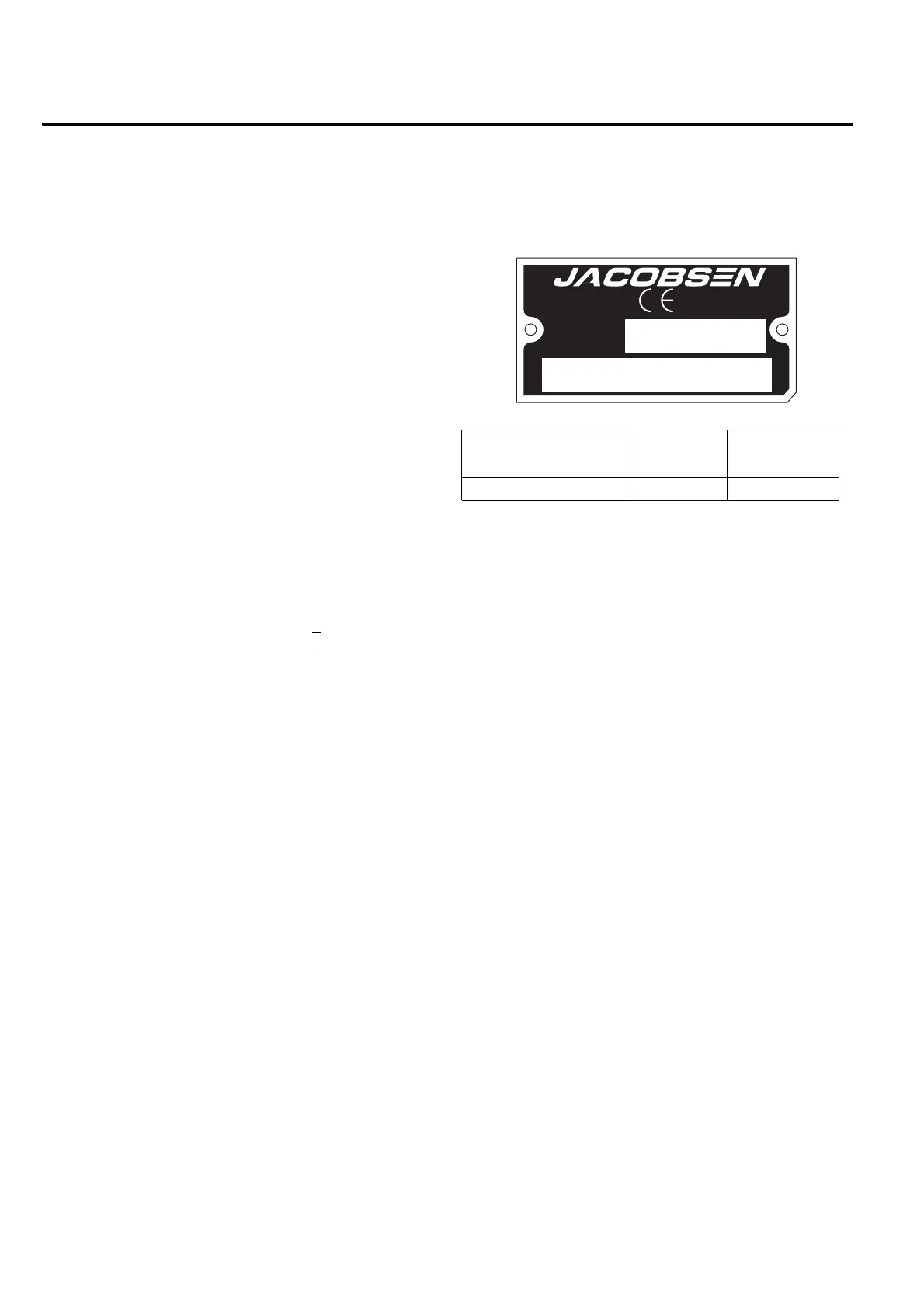

Serial Number ................ An identification plate, like the one
shown, listing the serial number, is
attached to the right side frame.
Always provide the serial number of the unit when ordering
replacement parts or requesting service information.
2.2 ENGINE__________________________________________________________________
Engine ....................... Honda GX-120 K1Q JG2 4-Cycle,
4 HP (2.98 kW) at 4000 RPM
Speed ........................ High Idle - 3300 +
100 RPM
Low Idle - 1700 +
100 RPM
Fuel............................ Regular Grade (Unleaded)
Fuel Tank................... 0.66 Gallon (2.5 liter)
Use clean, fresh, regular unleaded gasoline, 86 octane
minimum.
Engine Oil . . . . . . . . . Capacity: 5/8 qt. (0.6 l)
Type: SAE 10W-30, API Classifi-
cation SF or SG
2.3 MOWER _________________________________________________________________
Height of cut ................. 5/64 to 7/16 in., (2 to 11 mm)
Bedknives ..................... Hardened carbon steel
High profile ................... yields 5/32 in., (4 mm) cut.
Low profile .................... yields 7/64 in., (2.8 mm) cut.
Tournament .................. yields 5/64 in., (2 mm) cut.
Super Tounament ........... Yields 1/16 in. (1.6 mm) cut
Cutting Frequency .........13/64 in., (5 mm)
Reel ...............................11 blades, 5 in., (127 mm)
diameter hardened high
manganese, carbon steel
Reel Clutch....................Separate Cog-type
Reel Reduction Ratio ....2.25:1
Width of cut ...................22 in., (559 mm)
2.4 TRACTION AND DIFFERENTIAL _____________________________________________
Drive Clutch .........................Centifugal, Engages at 2000
RPM
Traction Reduction Ratio .....24:1
Traction and Reel Drive.......Chain drive
Transport Wheels ................(2) bidirectional, pneumatic
11 x 4 Goodyear Softrac
Tire Pressure .......................6 to 8 psi (41 to 55 kPa)
Differential ...........................Full automotive type,
housed in traction drum
Rear Drive Drum .................Machined aluminum alloy
2 sections: 7-3/4 in., (O.D.) x
10.97 in., (197 x 278 mm)
Travel Speed .......................2.9 mph (4.7 km/h) @ 3000
rpm
Product
EEC Sound
Power
Vibration m/s
2
Arms
63280 94 8.237
CHARLOTTE, NC
YEAR OF
PRODUCTION:
MADE IN U.S.A.
®
A Textron Company
63280 1601
2005
