A-2

ROLL BAR appendix A-2

Parts List for Figure 18

Ref Part No De scrip tion Quan

1 62-635 Roll Bar Assembly (Not Available as a Service Part) 1

2 90-0710 Bolt, 7/16 x 1-1/4 2

3 94-07 Flat Washer, 7/16 2

4 47-059 Seat Belt Set 1

5 96-07 Lock Washer, 7/16 2

6 92-07 Nut, 7/16 2

7 92-08 Nut, 1/2 4

8 96-08 Lock Washer, 1/2 4

9 99-K34 U Bolt 2

10 64-494 Support Bracket 2

11 99-B12 Spacer 1

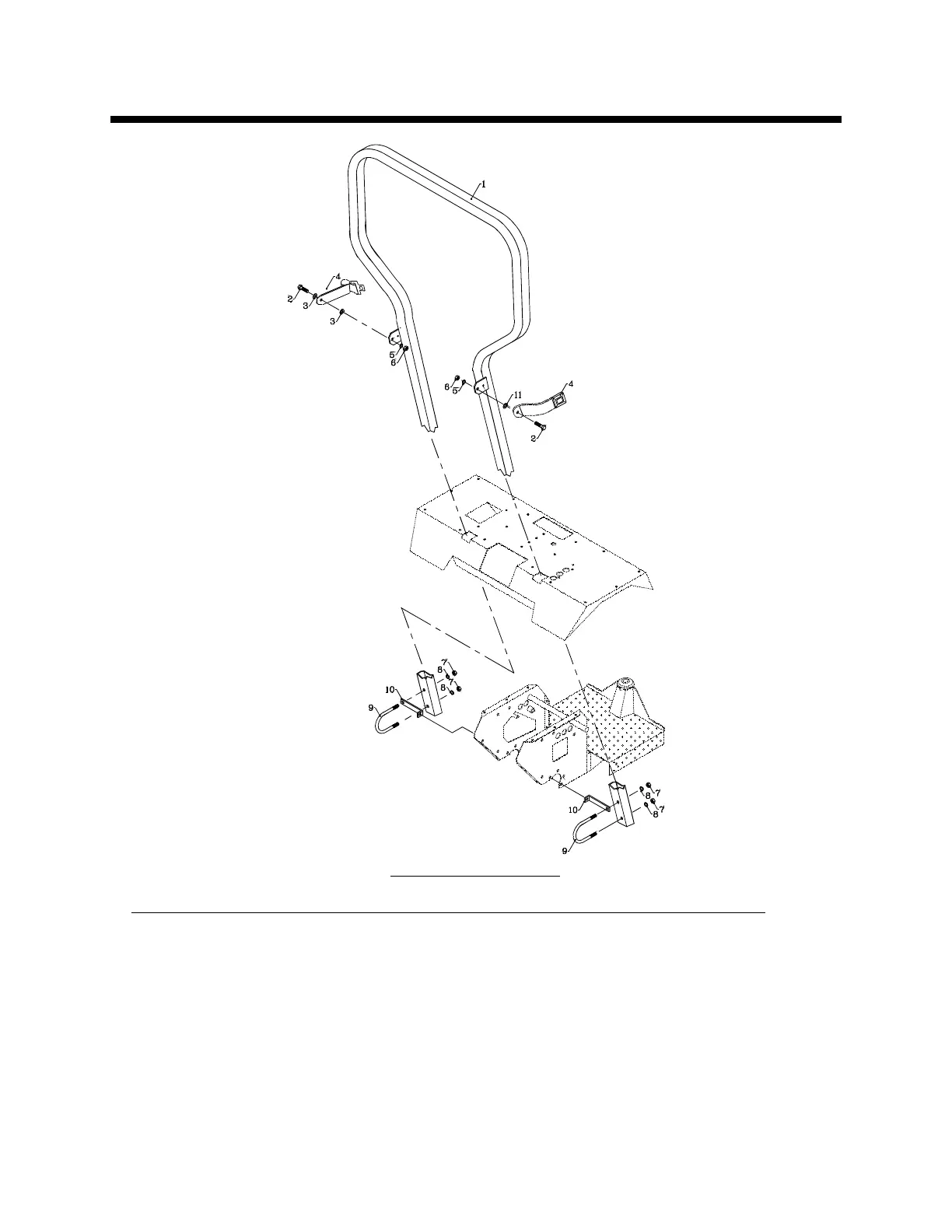

Roll Bar Parts

Figure 18
