A-1

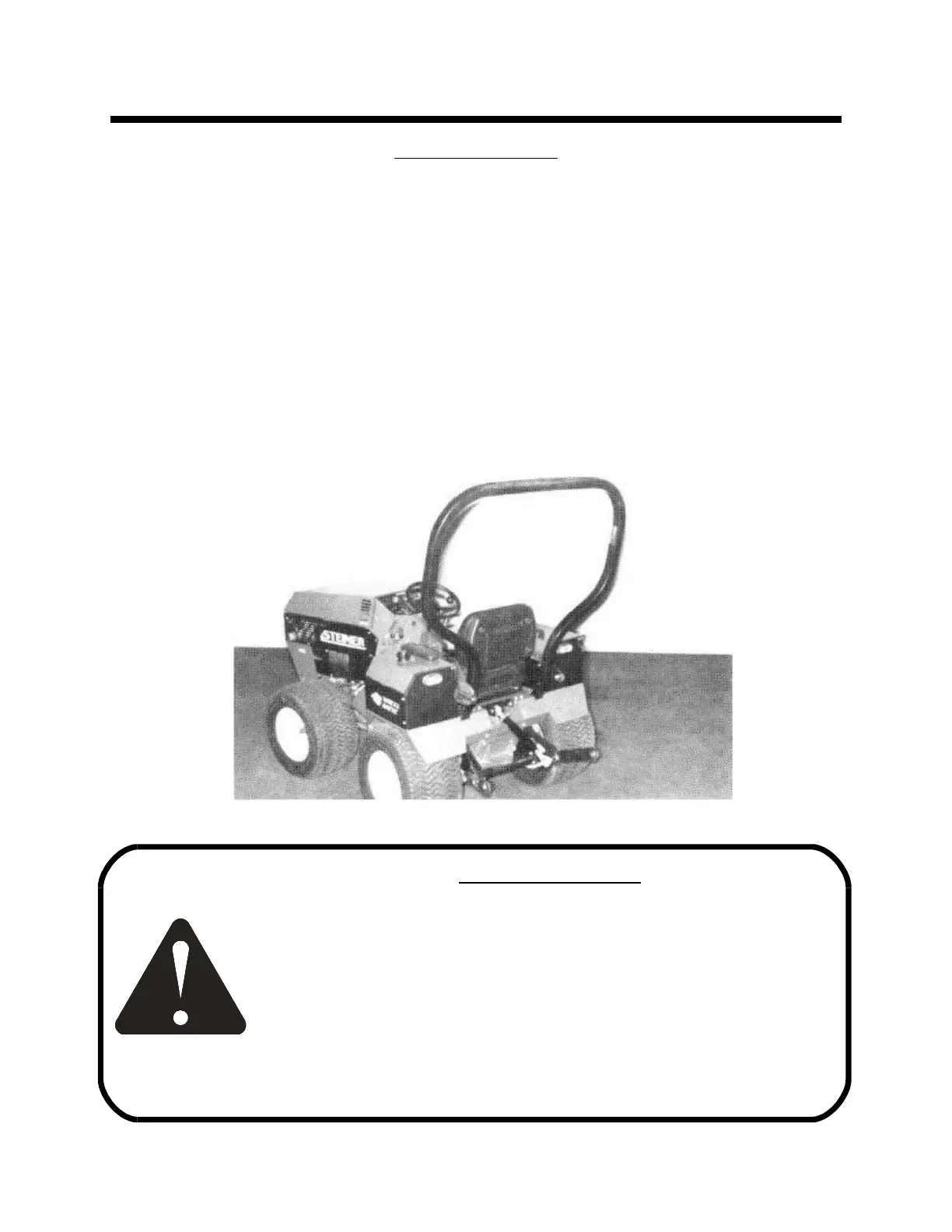

ROLL BAR appendix A-1
SAFETY INSTRUCTIONS
ALWAYS BUCKLE SAFETY BELT WHILE OPERATING TRACTOR.
NEVER ALLOW ANY RIDERS.
USE EXTREME CARE WHEN WORKING CLOSE TO FENCES, DITCHES, OR ON
HILLSIDES.
STAY ALERT FOR HIDDEN HAZARDS AND TRAFFIC.
AVOID SUDDEN STARTS, EXCESSIVE SPEEDS, AND SUDDEN STOPS.
CHECK CLEARANCE CAREFULLY BEFORE DRIVING UNDER ANY OBJECTS.
DO NOT WELD, CUT, DRILL OR MODIFY ROPS IN ANY MANNER.
Mounting Instructions
• 1. Install roll bar through square holes in rear fender. The roll bar is bent to allow the square tubing to be
placed in front of the axle tube.
• 2. Remove upper rear frame to axle bolt and install a support bracket on the right and left sides. Do not
tighten bolts. See Parts Drawing, Ref. 10)
• 3. Install the U bolts around the axle tube, through the support bracket and through the holes in the roll
bar. Secure with lock washers and nuts.
• 4. Tighten all bolts and U bolts. Caution! Do not overtighten the U bolts. Cracked housing may occur.
• 5. Install the seat belts to the outside of the mounting holes using 7/16 bolts, washers, and lock washers
as shown in the parts drawing.
