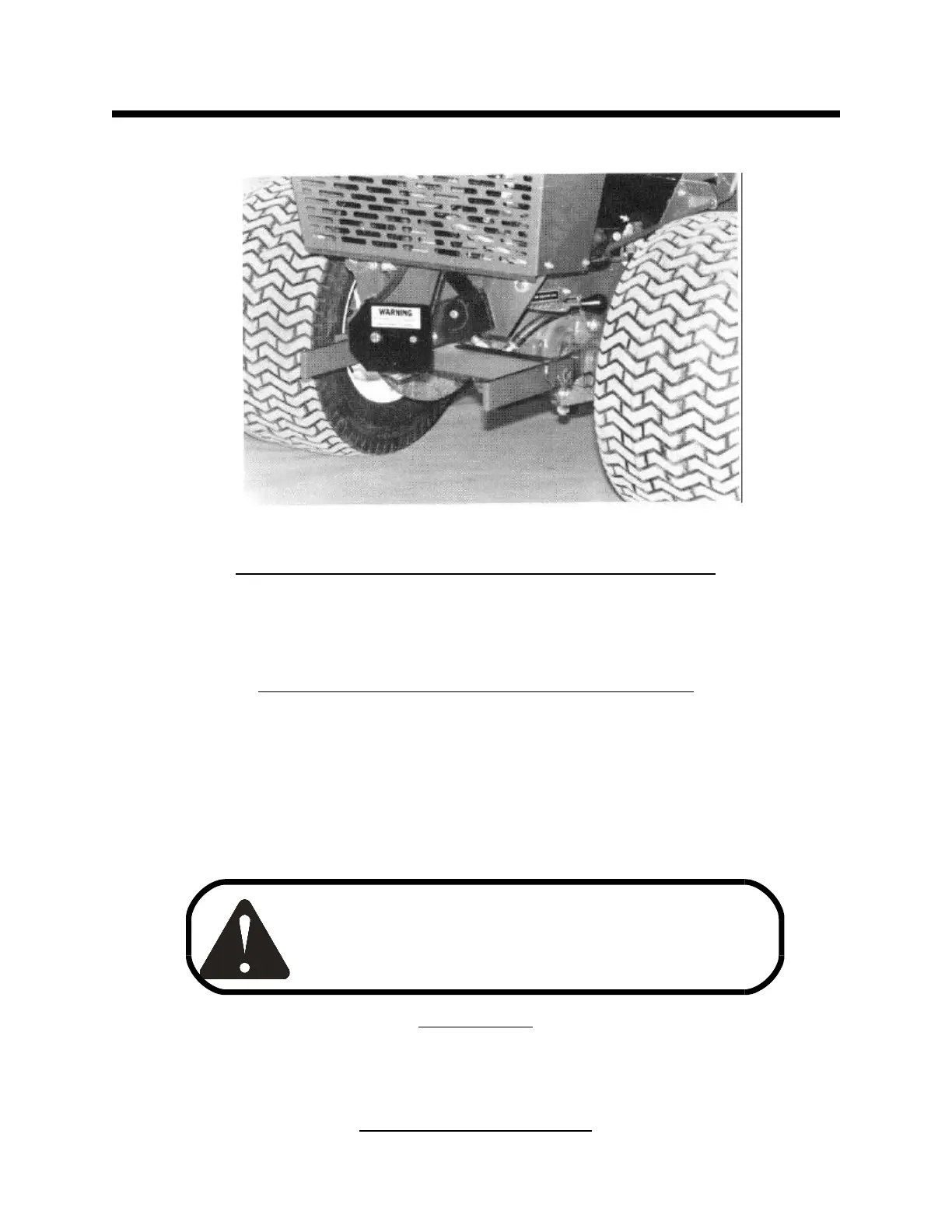

Photo 4 - PTO Drive and Front Lift
OPERATION section 4.6
ATTACHING PTO BELT DRIVE (Serial No. 1001 -- 1641)
• The attachment drive belt is installed around the left hitch arm before the attachment is connected to
the front lift Quick Hitch. Attach the implement.
STOP ENGINE!
• Release the belt tension adjustment lever on the left front frame. Place the drive belt on the pulleys.
Follow these steps to assure proper belt tension:
1. With the implement and drive belt attached, move the belt tension adjustment lever forward a notch at a
time and observe the double pulley as it moves toward the left and downward. The pulley must move
down approximately 3/4 inch. This assures the implement belt is tightened.
2. Start engine and engage the PTO lever carefully. The implement should start to run immediately. (ON
position)
3. Raise the implement to the highest position and check for proper release (implement stops running) when
the PTO is disengaged. (OFF position)
4. If the implement continues to run with the PTO in the “OFF” position, STOP ENGINE, release the belt
tension adjustment lever one notch and repeat steps 2, 3 & 4. If the PTO does not release, check for a
wrong size implement belt.
FRONT LIFT
• The front lift control valve is equipped with a detent float position. Always use “FLOAT” position when
mowing, sweeping, etc.
• The QUICK HITCH allows fast interchange of attachments. Push down on hitch control handle to open
latches. Pull up to close and lock latches.
AUXILIARY HYDRAULICS
• The auxiliary valve and quick couplers are standard equipment. Keep dust covers in place when
couplers are not in use. Be sure hose end couplers are clean before engaging couplers.
CAUTION!
Do Not Operate Implements With Improper
Belt Tension Settings.
Always Engage and Disengage PTO at Low Engine RPM.
To Next Page
