3.6 INLETS AND OUTLETS

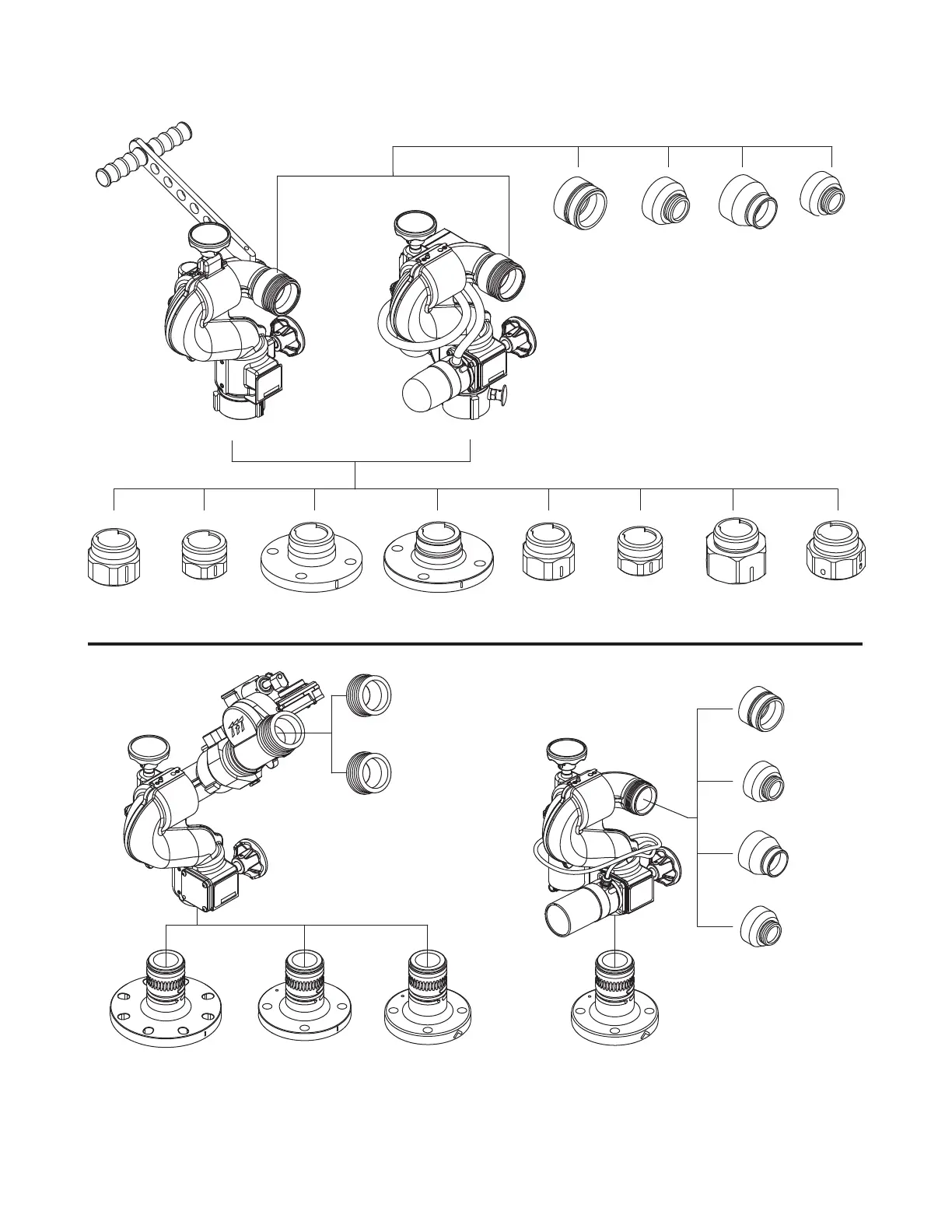

Available inlets and outlets are shown below and should be specified at time of order. The overall height and weight of the monitor may
differ slightly based on the inlet and outlet configuration.
Figure 3.6
2.5" NH
MALE
(Y2320ANJ)
1.5" NH
MALE
(Y2325ANF)
2.5" BSP
MALE
(Y2320ABJ)
TORNADO RC
MODEL
TORNADO
TILLER BAR
MODEL
INLET COUPLING
2.5-7.5 NH
2.5" BSP
FEMALE
(Y2405A)
2.0" BSP
FEMALE
(Y2425A)
2.5" ANSI 150
(Y2430A)
3.0" ANSI 150
(Y2431)
2.5" NPT
FEMALE
(Y2400A)
2.0" NPT
FEMALE
(Y2420A)
3.0" NPT
FEMALE
(Y2403A)
CODE-RLF
(Y2413A)
2.5" BSP
MALE
(Y2325ABF)
2.5" NH
MALE
(Y2320ANJ)
1.5" NH
MALE
(Y2325ANF)
2.5" BSP
MALE
(Y2320ABJ)
2.5" ANSI 150
(Y2418)
1.5" BSP
MALE
(Y2325ABF)
4.0" ANSI 150/DN100 PN16
(Y2417)
3.0" ANSI 150
(Y2412)
TORNADO OSC
MODEL
2.5" BSP
MALE
(XX020B)
2.5" NH
MALE
(XX020N)
2.5" ANSI 150
(Y2418)
