TFT TORNADO Instructions For Installation, Operation And Maintenance

©Copyright Task Force Tips LLC 2008-2021 9 LIY-300 January 13, 2021 Rev18

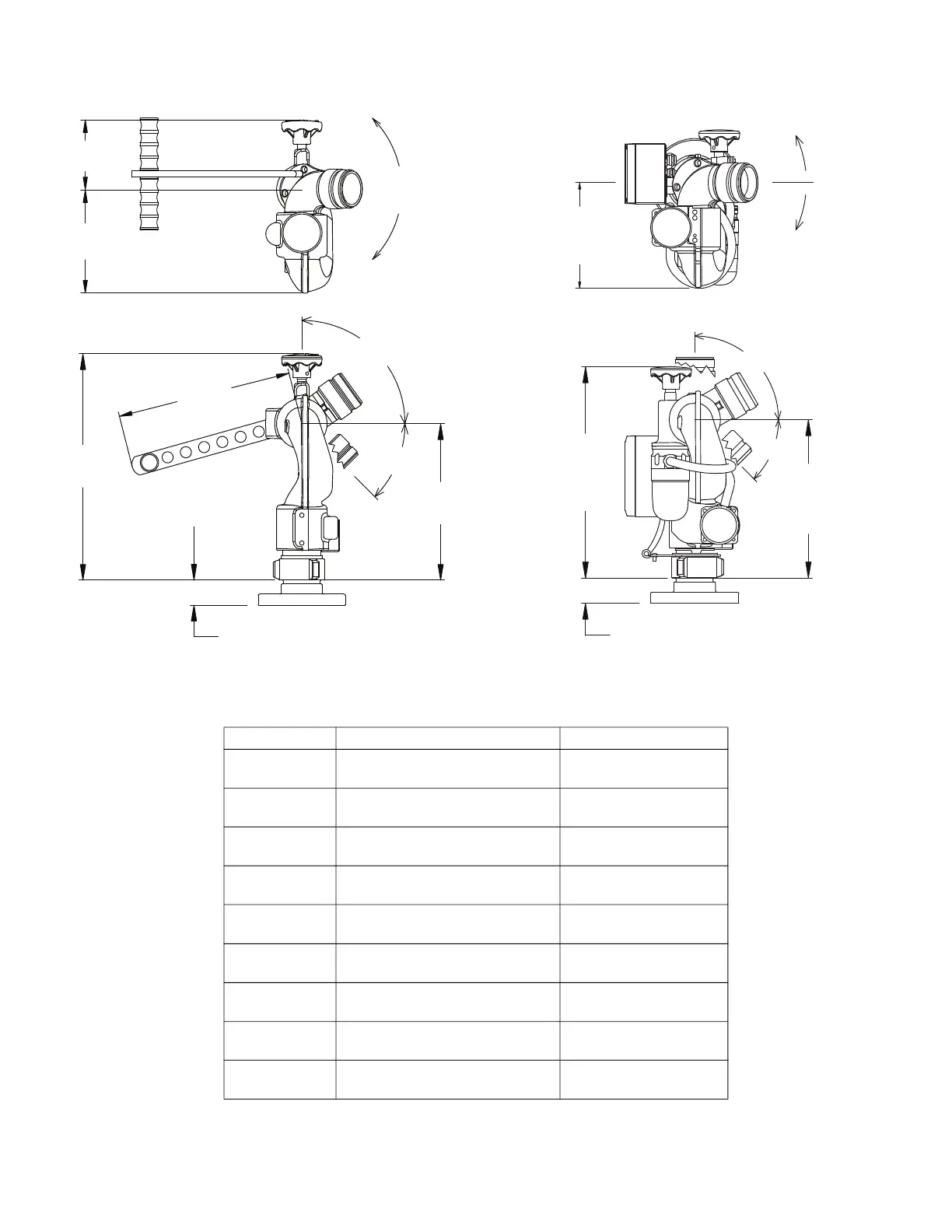

3.7 OVERALL DIMENSIONS
Dimensions shown are for nominal monitor height. See tables for additional height as a result of the chosen inlet.
MODEL INLET FITTING TYPE ADDITIONAL HEIGHT
Y2-*1*A 2.5” - 7.5 NH FEMALE
(no inlet fitting)
0.00”
0 mm
Y2-*2*A 2.5” - 11 BSP FEMALE 2.00”
51 mm
Y2-*3*A 2.0” - 11.5 BSP FEMALE 1.50”
38 mm
Y2-*6*A 2.5” ANSI 150 FLANGE 2.00”
51 mm
Y2-*0*A 3.0” ANSI 150 FLANGE 2.10”
53 mm
Y2-*7*A 2.5” - 8 NPT FEMALE 2.00”
51 mm
Y2-*8*A 2.0” - 11.5 NPT FEMALE 1.50”
38 mm
Y2-*9*A 3.0” - 8 NPT FEMALE 2.44”
62 mm
Y2-*L*A TFT CODE-RLF
(fits Extend-A-Gun RC3)
2.00”
51 mm
5.50
(140 mm)
8.25
(210 mm)
360°
CONTINUOUS
18.00
(460 mm)
14.00
(360 mm)
12.40
(315 mm)
90°
45°
See table below for additional height
from Inlet Fitting
Figure 3.7A
TORNADO
17.80
(452 mm)
See table below for additional height
from Inlet Fitting
13.70
(348 mm)
90°
45°
8.25
(210 mm)
185° LEFT
185° RIGHT
Figure 3.7B
TORNADO RC
