TGB BF8 - Tightening Torque

14
1-5 TIGHTENING TORQUE

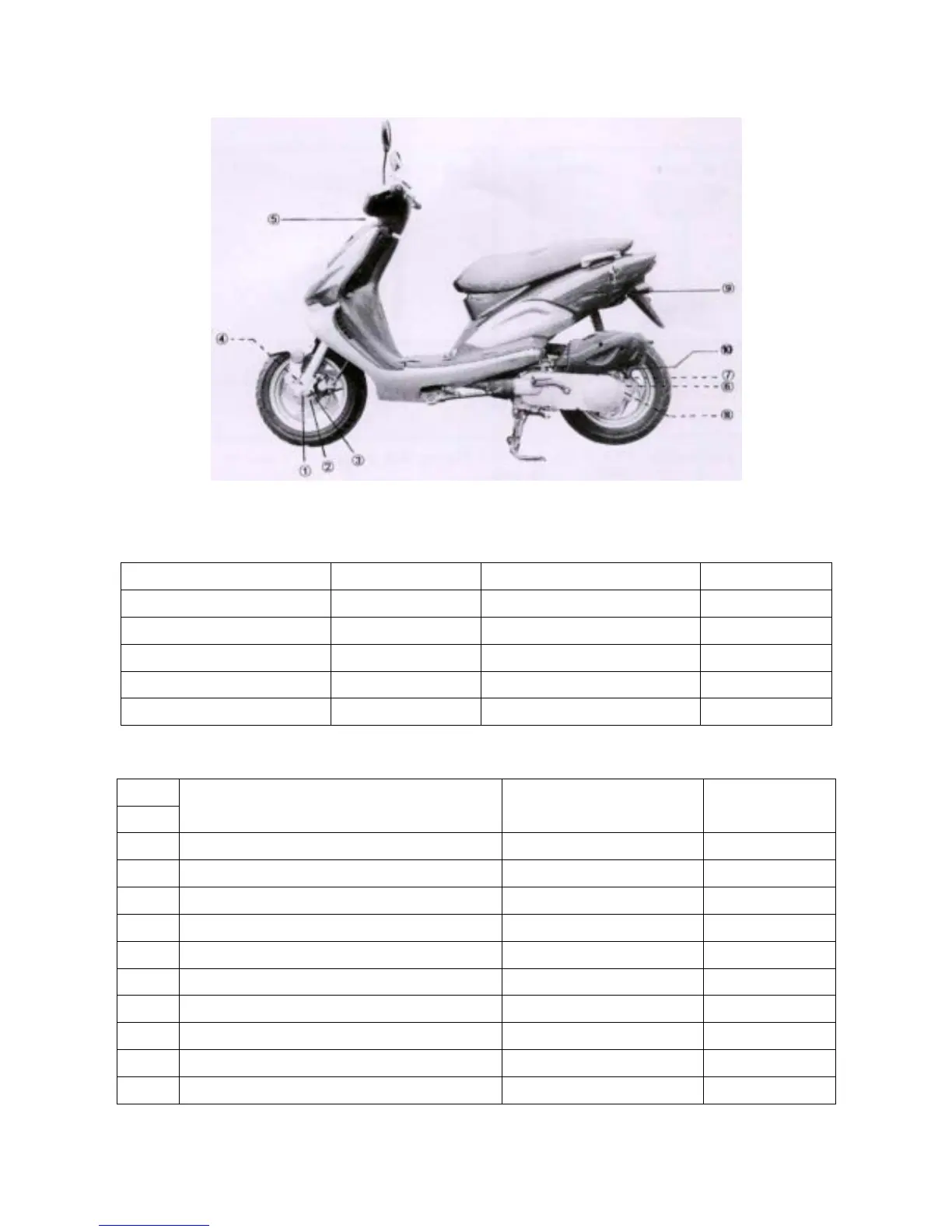

＊BR8 Representative Figure＊
*Standard Torque Values of Bolts and Nuts *
Specification
Torque (kg-cm) Specification Torque (kg-cm)
5 mm Bolt and Nut 40 8 mm Bolt and Nut 220
5 mm Flange Bolt and Nut 50 8 mm Flange Bolt and Nut 270
6 mm Bolt and Nut 100 10 mm Bolt and Nut 350
6 mm Flange Bolt and Nut 120 10 mm Flange Bolt and Nut 400
6 mm SH Bolt and Nut 90 12 mm Bolt and Nut 550
* Torque Values of Chassis Components *
No. Tightening Location Specification Torque
(kg-cm)
1 Front Wheel Axle Self-lock Nut M12 500~600
2 Brake Disk Hex Bolt M5 180~280
3 Brake Clipper Tightening Bolt M8x35 210~250
4 Speed Meter Cable Nut X 60
5 Front Fork Bearing Tightening Nut M25x1.0 600~650
6 Rear Wheel Axle Self-lock Nut M16x10 600~900
7 Rear Brake Connecting Rod Bolt M16x32 50~80
8 Rear Brake Pin Self-lock Nut M8 250~270
9 Rear Upper Cushion Tightening Bolt M10×46 200~300
10 Rear Lower Cushion Tightening Bolt M8×35 200~300
