87
5-3

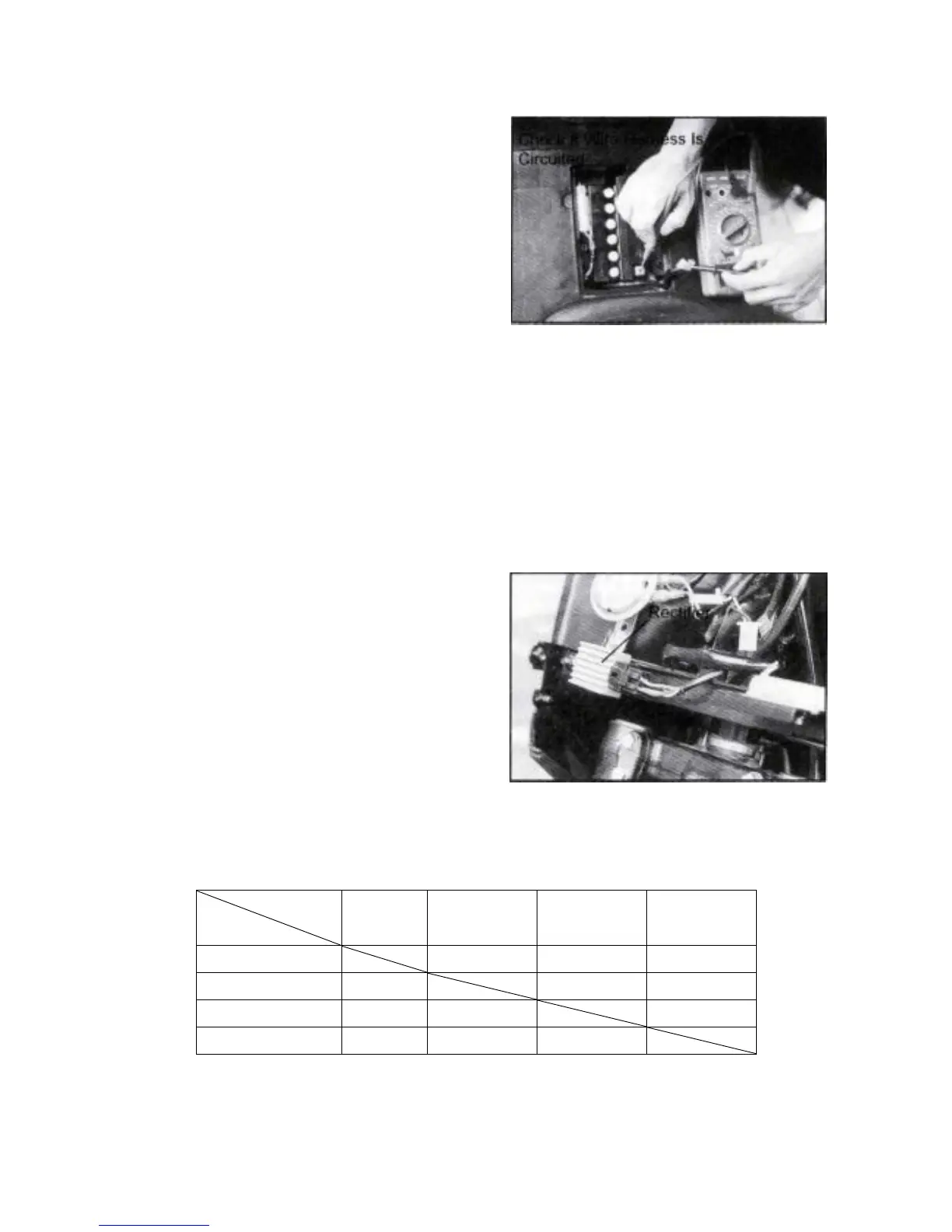

SHORT CIRCUIT TEST
Disassembly:
Disconnect battery negative terminal
cable.
Measure method:
A. Connect megga meter “+”
terminal to battery “-” terminal.
B. Connect megga meter “-”
terminal to circuit negative
Note: User megga meter “A” current
position.
Turn main switch to “OFF”
position.
Inspection: Check if there is electrical
current. If no current, check the main
switch and wire harness for short circuit.
5-4
RECTIFIER
Watch:
(1) Check if wire harness is normal
before checking rectifier and end
resistor. Check if rectifier socket is
well connected.
(2) Keep fingers away from tester probe.
The circuit resistance can be
changed with human body resistance
involved.
Rectifier Terminal Resistance Table.
Meter+
Meter-
White/Red Yellow/Red Red Black
White / Red Infitity 3k-100k Ohm Infitity
Yellow/ Red Infitity Infitity 3k-100k Ohm
Red Infitity Infitity Infitity
Black Infitity 5k-100k Ohm Infitity
