40

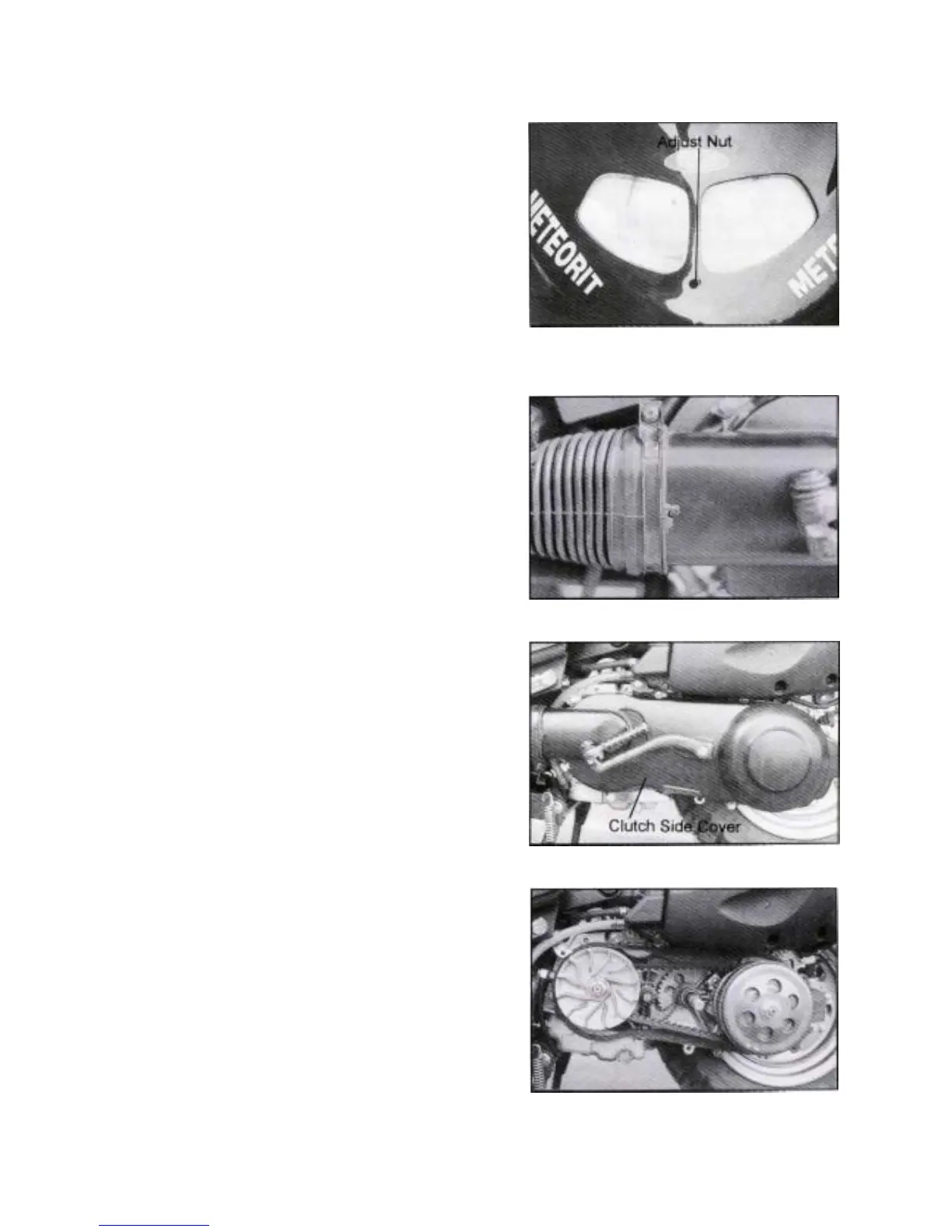

2-13 HEADLIGHT AXLE
Use cross screw driver to adjust the nut.
Note:
1. Rotate the nut clockwise for higher light
axle.
2. Rotate the nut counter-clockwise for lower
light axle.
2-14 V BELT
Watch: Please place main stand to park the
motorcycle for inspection.
Disassembly:
Loose the cooler tube tightening ring.◎
Kicker starter arm tightening bolt.◎
Kicker starter arm.◎
8 clutch side cover tightening bolts.◎
Clutch side plate.◎
Gasket.◎
