41

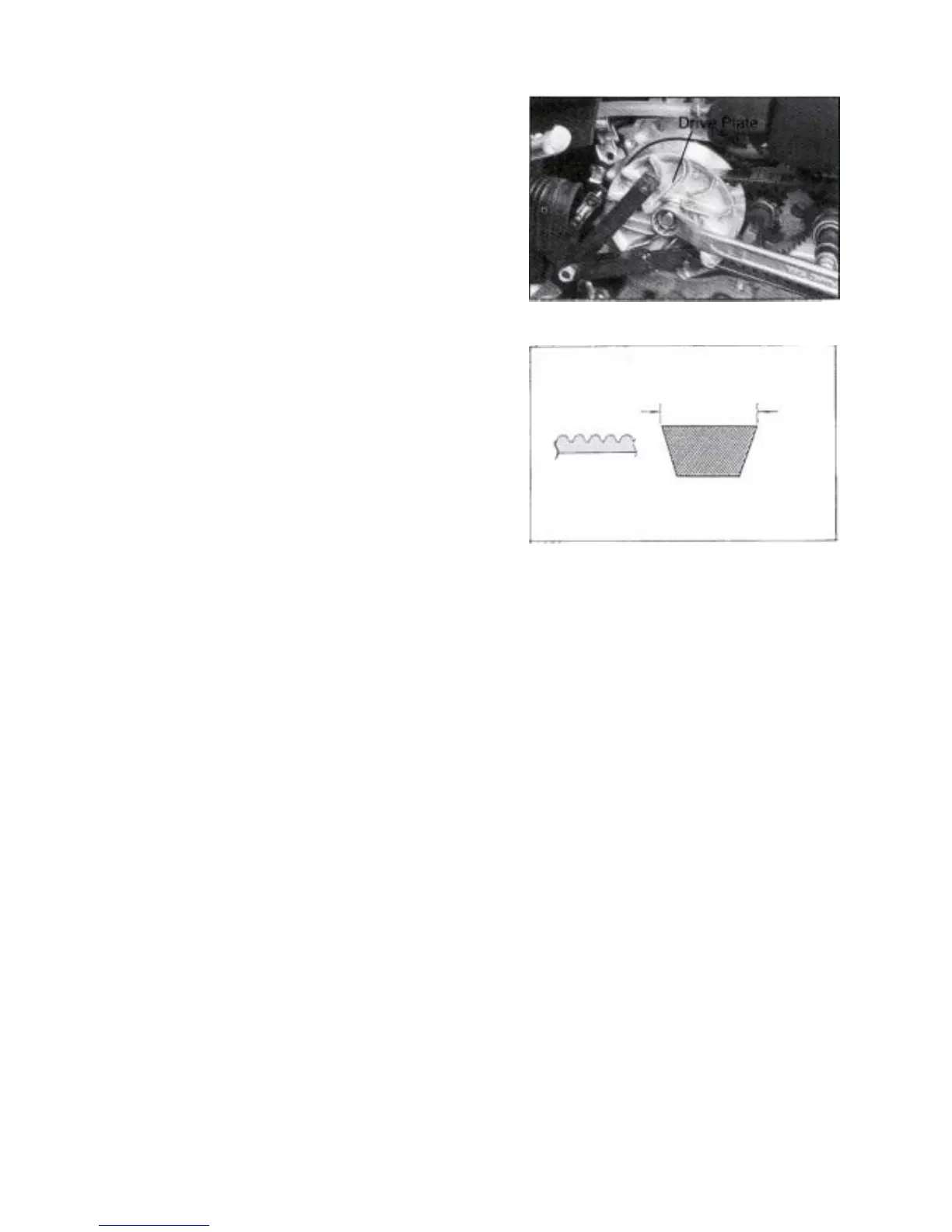

Use universal wrench to tight the drive ◎
plate, and remove lock nut and gasket.
Drive plate.◎
V bel◎ t.
Inspection: Check if the V belt has cracked,
threaded, and pilling. If it is in poor condition,
please replace with new V belt.
Note:
(1) Check the belt length.
Wear limit: 18.0 mm or 8000km
(2) Belt specification:
*BH8*
BANDO VS BELT 743 20 30
*BR8 / BF8 / BR9 / BF9*
BANDO VS BELT 846 20 30
Assembly: Assembly is in reverse order of
disassembly procedures.
Warning: Please do not apply any grease on
pulley and V belt, which can cause belt slip.
Note:
(1) Diver plate screw is left-threaded.
(2) Torque of driver plate nut: 800 ~ 1000
kg-cm.
(3) Torque of clutch side nut: 50 ~ 60 kg-cm.
(4) Torque of kick starter arm screw:
100 ~ 120 kg-cm.
