90
5-6
STARTER MOTOR
Watch:
(1) Please place main stand to park the
motorcycle for inspection.
(2) Turn the main switch to “OFF” position
before maintenance. Disconnect the
battery ground circuit. To ensure safety,
turn the main switch to “ON” position and
check if the motor has operated.

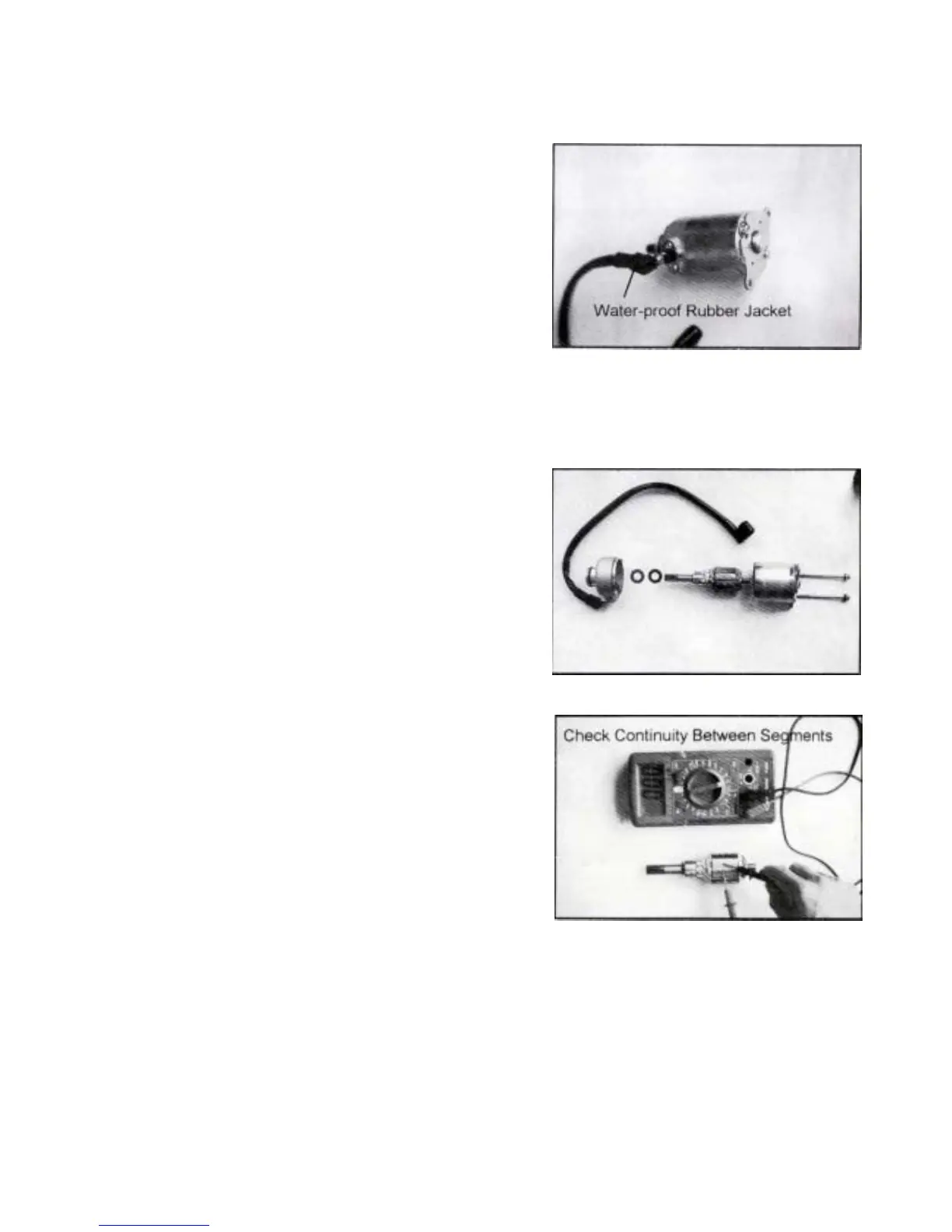

Disassembly:
2 starter motor attaching bolts.◎
Starter motor.◎
Roll up the water◎ -proof rubber jacket and
remove connector.
2 motor case attaching bolts.◎
Motor commutator.◎
Front cover.◎
Check Starter Commutator
Inspection:
(1) Check continuity between segments.
Note:
A. If continuity is good, then it is normal.
B. If no continuity, then it is broken.
To Next Page
