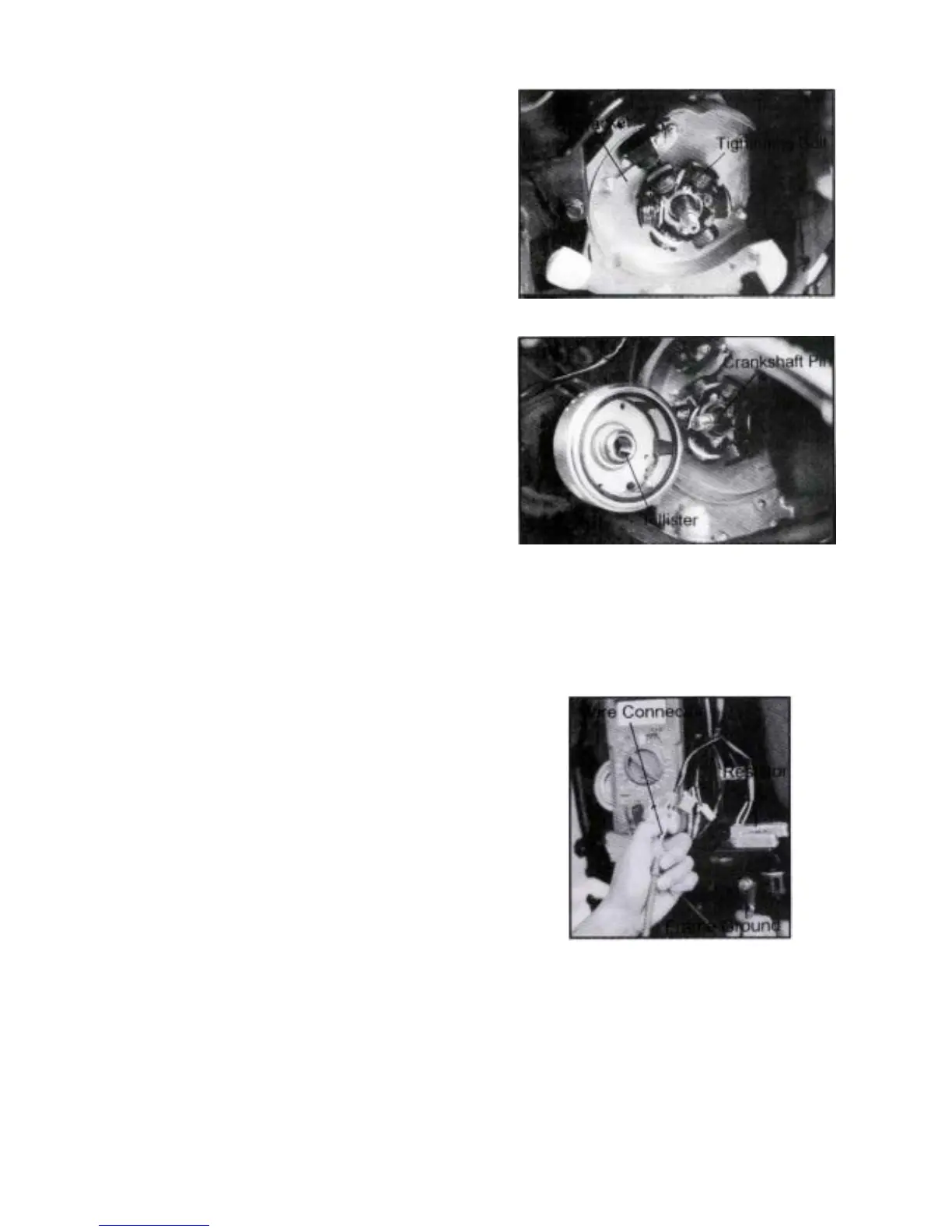

◎ Cable connector.
◎ Cable bracket.
◎ Tighten bolt of pick up.
◎ Pick up.
Assembly: Assembly is in reverse
order of disassembly procedures.
Watch:
(1) The inside surface of the flywheel
is magnetic. Be sure that there is
nothing in there before assembly.
(2) The flywheel‘s fillister should
match crankshaft pin.
Note:
(1) Torque of flywheel tightening
bolt: 550 kg-cm.
(2) Torque of fan tightening bolt: 90
kg-cm.
5-8 RESISTOR
Disassembly: Remove front windshield cover.
Measure:
A. Use megga meter‘s positive terminal
to connect resistor wire.
B. Connect the megga meter‘s negative
terminal with frame ground and
measure the resistance.
Note: Resistor standard:
20 W 5.9 Ohm: 5.0~7.0 Ohm.
5W 5.0 Ohm: 4.0~6.0 Ohm.
