DRIVING PULLY-CLUTCH-DRIVEN PULLEY

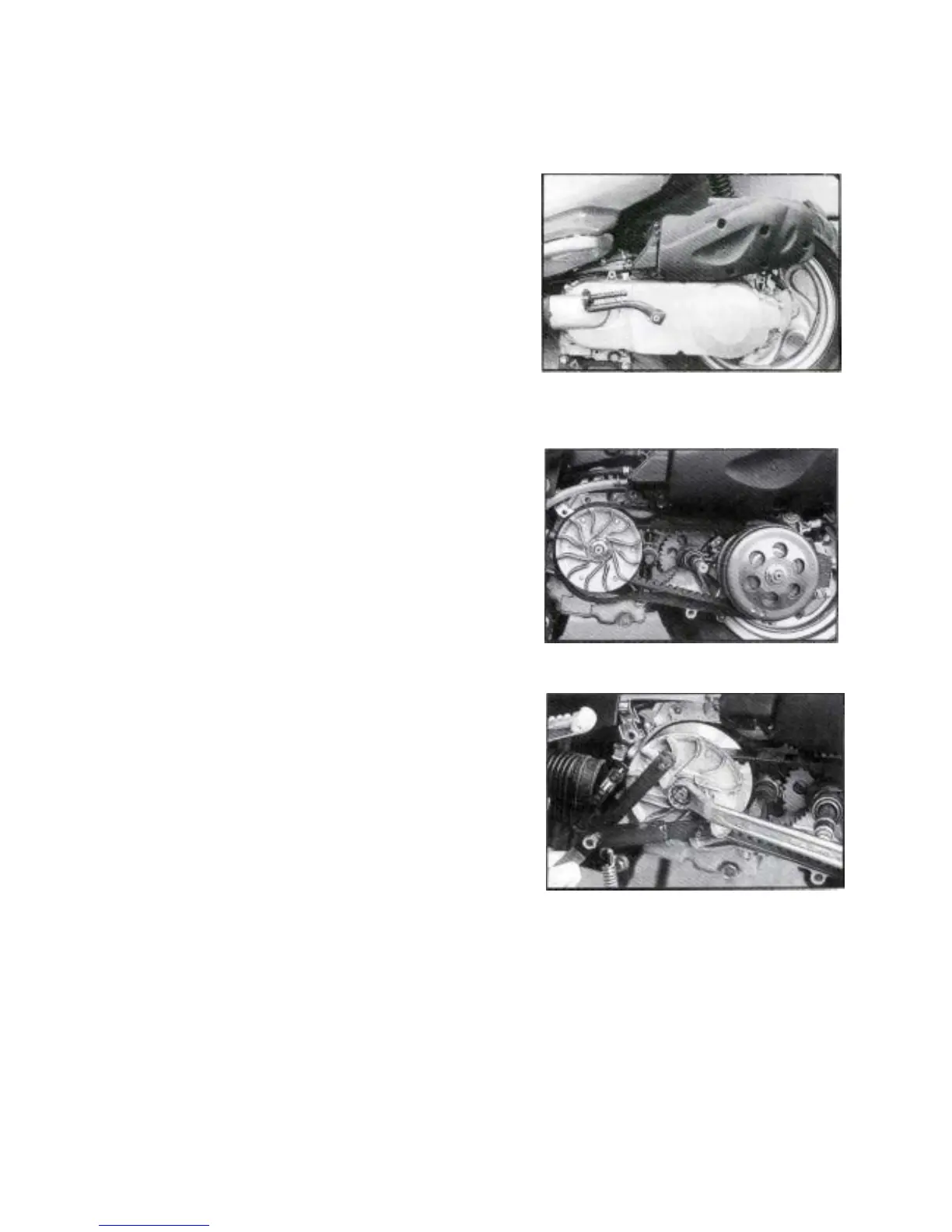

Transmission cover
-Loosen the fixing screw of cooling duct and
remove the cooling duct.
-Remove the kick starter lever
Assy..
-Remove the clutch cover screws by diagonal
step and then remove the clutch cover.
-Take off the knock pins and remove the
gasket.
3-7-2 Driving pulley
-Use the special tool to lock the fixed drive
face
and loosen the central nut with wrench.
-Remove the belt from the spacer and remove
the
drive pulley
Note: Press the movable drive plate and drive
pulley face while removing the drive pulley
face Assy. in order to avoid the roller to stand
up.
