69
Assembly: Assembly is in reverse order of
disassembly procedures.
Note:
(1) Apply grease on starter arm collar and
cam loaded area for lubrication.

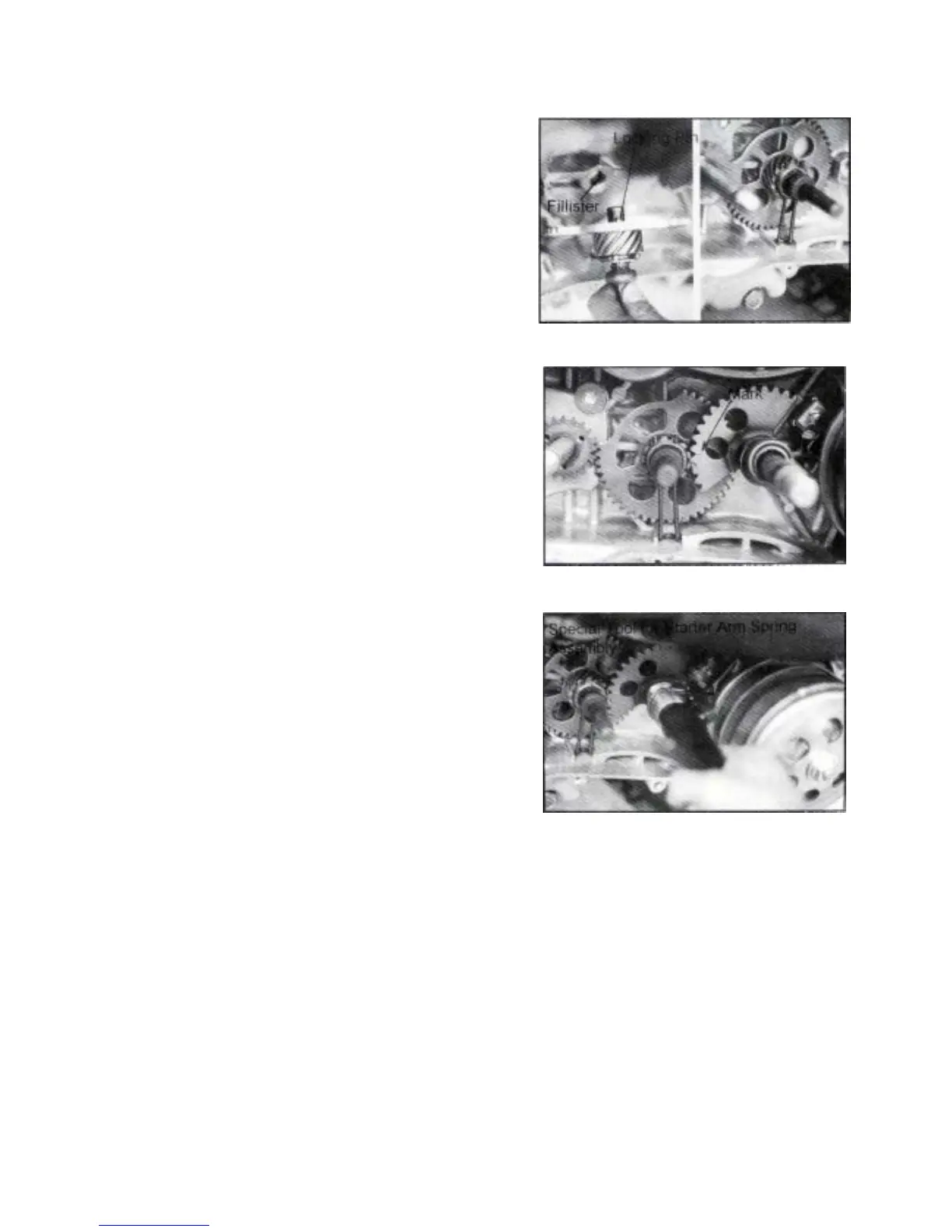

(2) The starter cam locking pin should match
with crankcase fillister for assembly.
(3) The mark on starter axle gear should
match mark on starter cam.
(4) Use special tool for starter arm spring
assembly. Rotate tool clockwise, such
that spring locking pin is positioned under
crank case half-moon location, then
assemble stop plate.
Note:
(1) Torque of starter arm spring plate
tightening bolt: 90 kg-cm.
(2) Torque drive plate tightening nut:
800~1000 kg-cm.
(3) Torque of clutch side cover bolt: 50~80
kg-cm.
(4) Torque of starter arm tightening bolt:
100~120cm.
