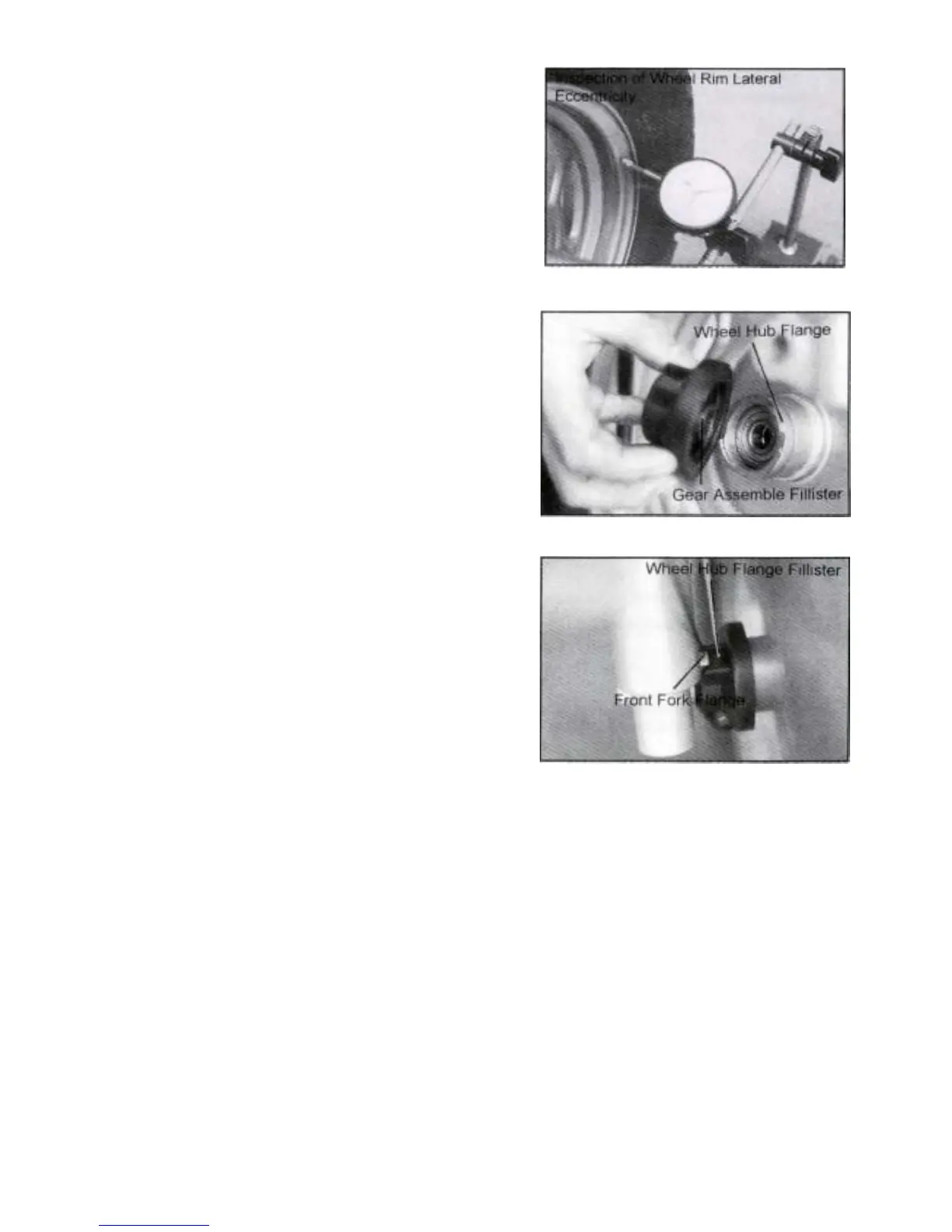

(2) The lateral eccentricity should be within
3.0mm. If the condition is poor, please
replace with new one.
*Be Careful Items in Assembly*
(1) Speed meter gear assemble fillister and
wheel hub flange should be fully
matched.
(2) The wheel hub flange fillister and front fork
flange should be fully matched.
Note:
(1) Torque of rear wheel axle self-lock nut:
600~ 900 kg-cm.
(2) Torque of brake clipper tightening bolt:
210 ~250 kg-cm.
(3) Torque of speed meter cable nut: 60kg-cm
