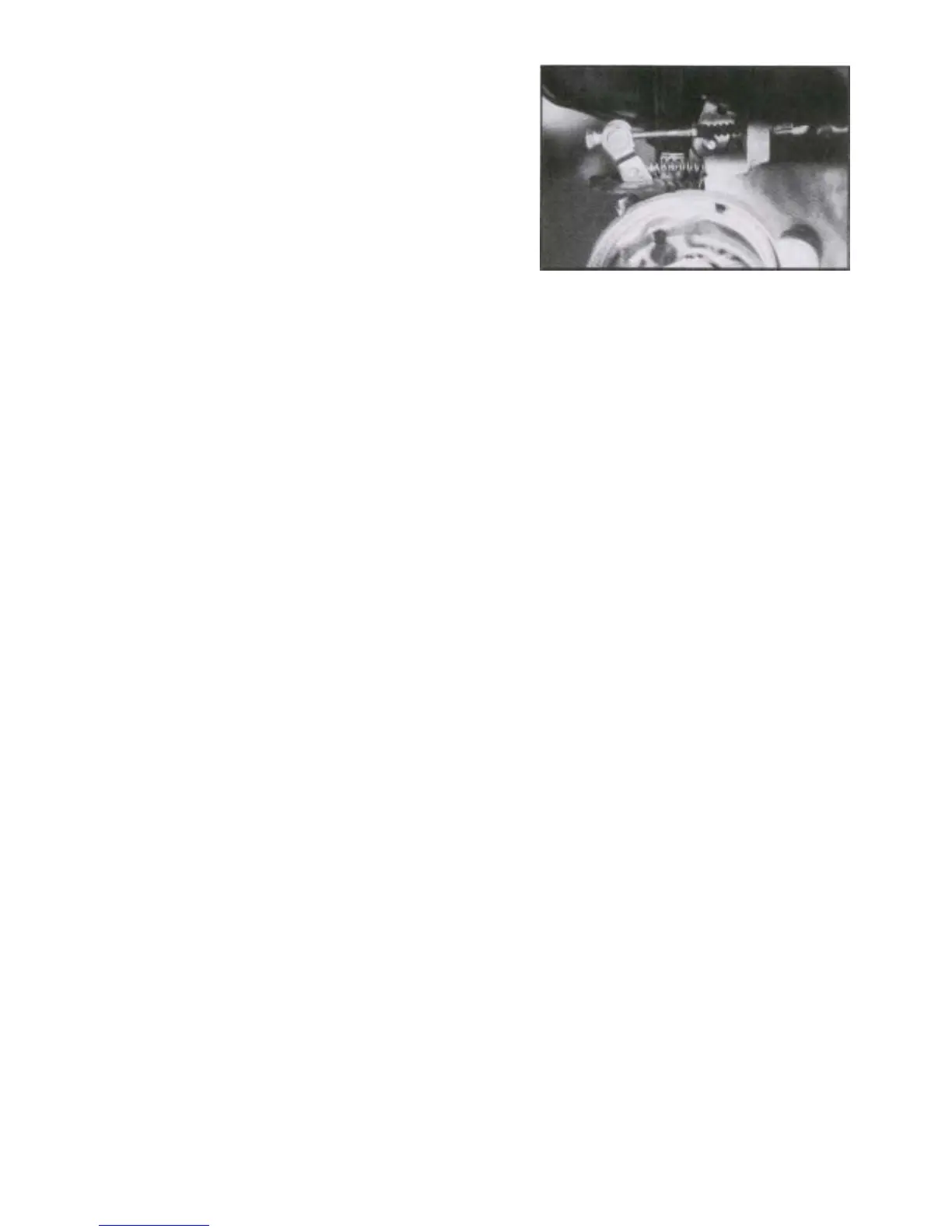

Loose rear brake adjusting nut and ◎
remove brake cable.
◎ Brake arm cover.
◎ Brake spring.
◎ Rear brake connecting rod.
Rear brake cam axle.◎
Assembly: Assembly is in reverse order of
disassembly procedures.
Watch: Please apply thin layer of grease on
contact area of cam axle, pin and lining. Do
not apply too much grease.
Note:
(1) Torque of rear brake connecting rod bolt:
50 ~80 kg-cm.
(2) Torque of lock pin nut: 250 ~270 kg-cm.
(3) Torque of rear wheel self-locking nut:
600 ~ 900 kg-cm.
