Getting Started with 4G Modem Card
2.2 Connecting MLx31-W to the 4G Modem Card Adapter Board
16
t MLx31_startup_guide_v01 2021-05-06
Confidential / Prelimenary
Page 7 of 17

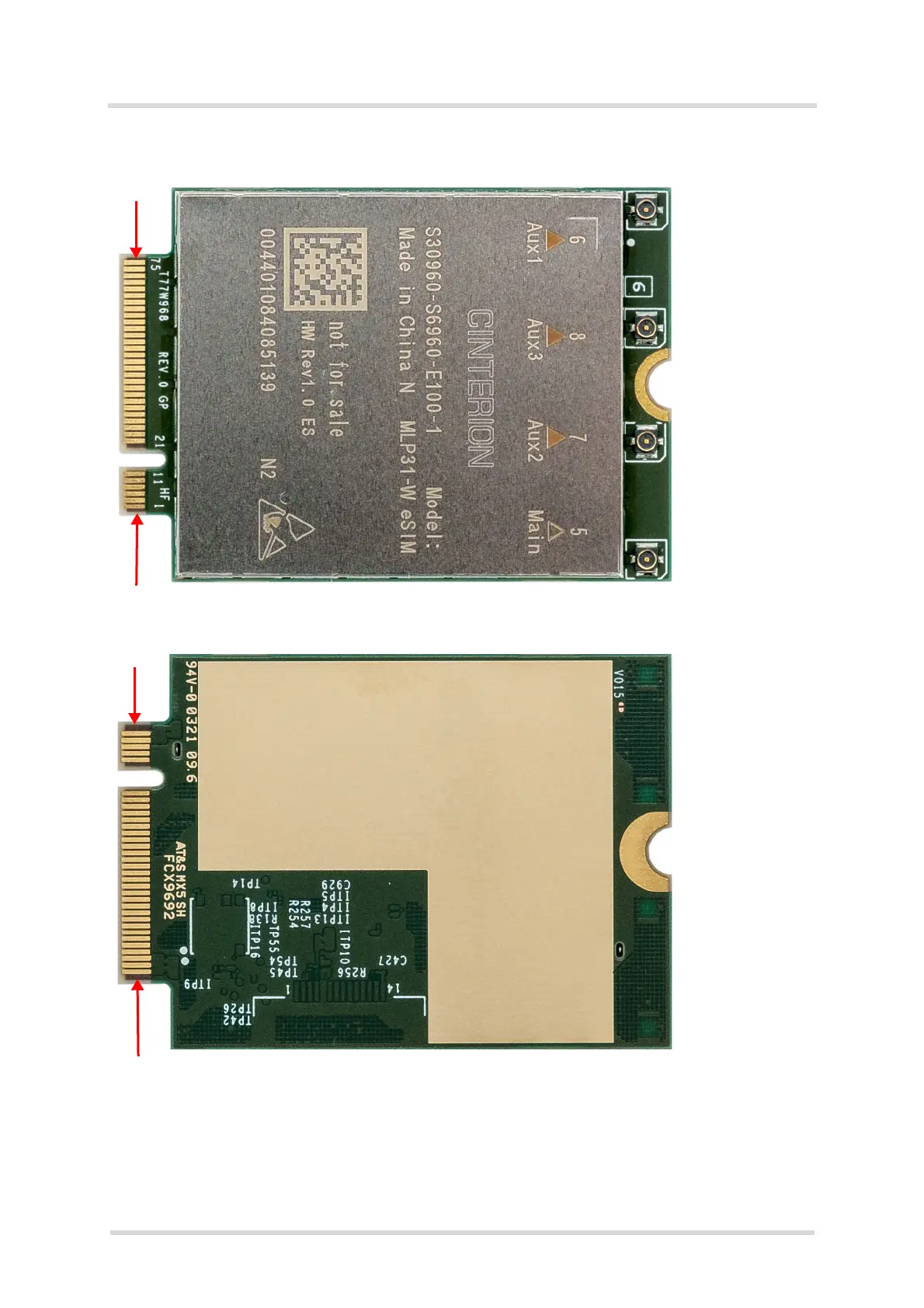

Figure 1: 4G Modem Card
Bottom side
Top side
mechanical ground pad
Pin 75
Pin 1
Main Antenna
AUX2 Antenna
AUX3 Antenna
AUX1 Antenna
Pin 2
Pin 74
(only MLP31-W)
(only MLP31-W)
