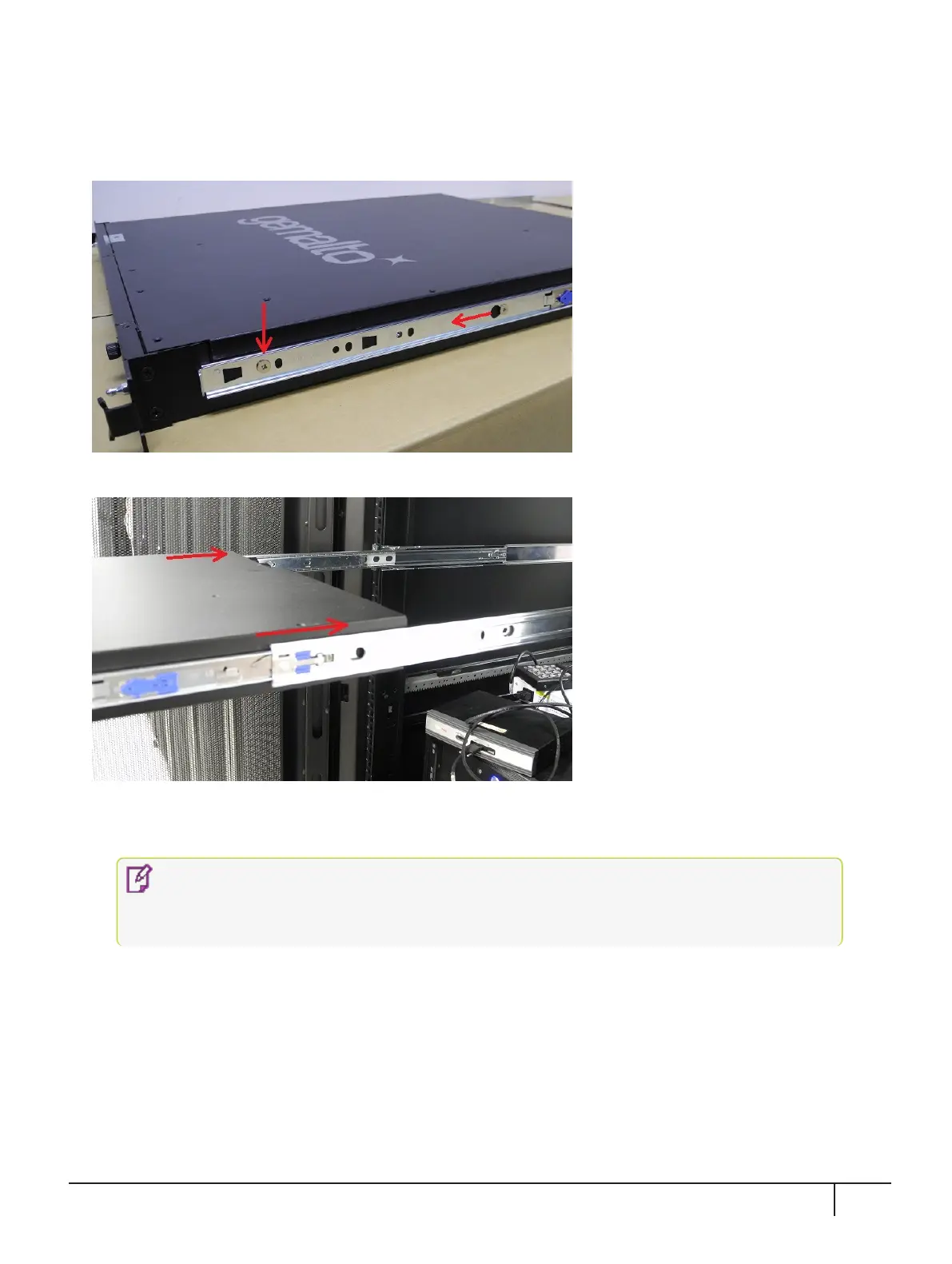

5. Loosely thread two small flat-headed screws into each side of the appliance. Fit each sliding rail over the
screw heads and slide it forward into place before tightening the screws. Fasten each sliding rail with a third
screw where it lines up with the hole on the appliance.
6. Fit the sliding rails onto the rack mounts until they lock into place.
7. The appliance now moves smoothly and securely on the rails. Push the appliance all the way back and
secure it to the transformer bracket with four rack screws.
NOTE Screws with heads that are too large can prevent the locking bezel from fitting to
the faceplate. Use the screws included with the appliance, or other screws with suitable
heads.
